Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered
CSV-6400 - The Club 3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens.
The Club3D MST Hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs but enable the optimal use of it.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
Check out the downloads tab below for more information
_hub_displayportt_1.2_quad_monitor_usb_powered/&media=https://www.club-3d.com/en/detail/2434/multi_stream_transport_(mst)_hub_displayportt_1.2_quad_monitor_usb_powered//productfoto/300x300/2434_1.jpg&description= CSV-6400 - The Club 3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. <br />
The Club3D MST Hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs but enable the optimal use of it.<br />
<br />
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.<br />
<br />
<b>Check out the downloads tab below for more information</b> <br />
<br />
){kind=link}
Specifications
| Model: |
| Product Name: Multi Stream Transport (MST) Hub DisplayPort 1.2 Quad Monitor USB Powered |
| Product Series: Video Splitters |
| Itemcode: CSV-6400 |
| EAN code: 8719214470890 |
| UPC code: 841615101085 |
| Features: |
| • Compliant with: DisplayPort v1.2a, DisplayPort v1.1a, VESA DDM Standard, HDCP V2.0,Display Id,and EDID V1.4 |
| • Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source |
| • Outputs support DisplayPort Dual Mode (DP++) |
| • Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444 |
| • Supports Advanced Wide EyeTM SerDes technology enables high Jitter performance |
| • Supported output resolutions : |
| - for Dual Monitor setup: up to 2x 2560X1600p @ 60Hz |
| - for Tripple Monitor setup: up to 3x 1920x1080p @ 60Hz |
| - for Quad Monitor setup: up to 4x 1920x1080 @ 60Hz |
| • Supports AMD Eyefinity |
| • Compatible with Microsoft® Surface Pro and Intel NUC platforms |
| • Works with AMD, Nvidia and Intel Graphics solutions |
| Note: Some Notebooks/Tablets/Mini PC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information. |
| OS Support: |
| Microsoft Windows 10/ 8.1 |
| Input: |
| • DisplayPort 1.2 Male |
| • 1x Micro USB Female for Power |
| Output: |
| • 4x DisplayPort Female |
| Other info: |
| • Hub size LxWxD: 66 x 116 x 13 mm |
| • Product Weight: 134 gr. |
| • Cable Length DP: 180 mm |
| • Cable Length USB: 1000 mm |
| • Packaging size: 24 x 16 x 1.7cm / 9.45 x 6.3 x 0.0.67" |
| • Plastic Bag Weight: 8 gr. |
| In the box: |

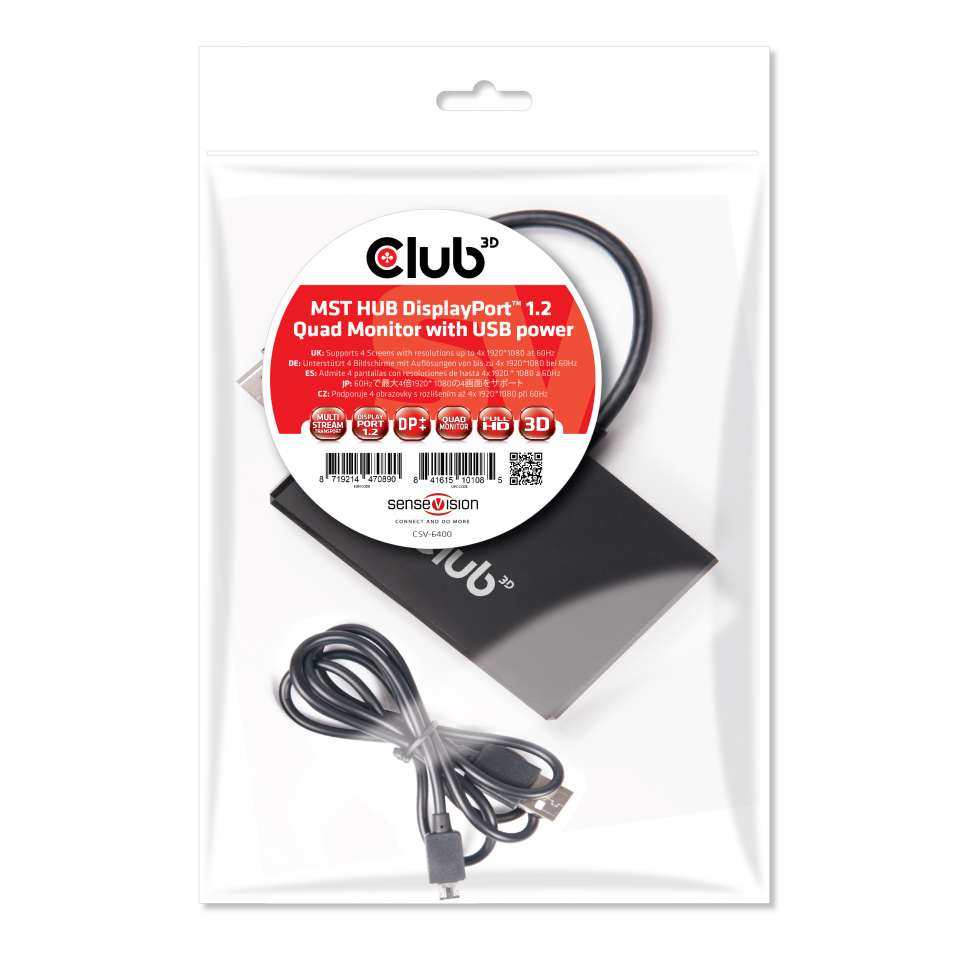

| • Multi Stream Transport (MST) Hub DisplayPort 1.2 Quad Monitor USB Powered |
| • USB to Micro USB Cable for power |
| • Quick install guide |
