USB 3.1 Type C to HDMI 2.0 UHD 4K 60HZ Active Adapter
USB 3.1 Type C to HDMI 2.0 UHD 4K 60HZ Active Adapter
USB 3.1 Type C to HDMI 2.0 UHD 4K 60HZ Active Adapter
Enlarge

USB 3.1 Type C to HDMI 2.0 UHD 4K 60HZ Active Adapter

CAC-2504 - The Club 3D CAC-2504 is an Active HDMI™ signal converter. The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled UHD Monitor, Television or Projector. The HDMI™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with notebooks and Ultrabooks.

Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.

Compatible with all Operating Systems
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.

Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.

Related products
USB 3.1 Type C to DisplayPort 1.2
USB 3.1 Type C to DisplayPort 1.2
USB C to HDMI 2.0 UHD Cable Active M/M 1.8m/5.91ft
USB C to HDMI 2.0 UHD Cable Active M/M 1.8m/5.91ft
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.84 ft
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.84 ft

Specifications

Model:
Product Name: USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter
Product Series: Adapter
Itemcode: CAC-2504
EAN code: 8719214471026
UPC code: 841615101214
Features:
• Reversible USB Type-C connector
• Compliant to VESA DisplayPort™ 1.2 Alt Mode Standard
• Compliant to HDMI™ 2.0 for up to 18 Gbps data rate
• Supports full link training and no link training
• Supports 3D Video formats up to 1080p @ 120Hz
• Supports resolutions up to 3840 x 2160p @ 60Hz
• Repeater for HDCP 1.3 and HDCP 2.2
• Powered by USB Port (no external power needed)
OS Support:
Windows 8.1, 10
Apple OS X

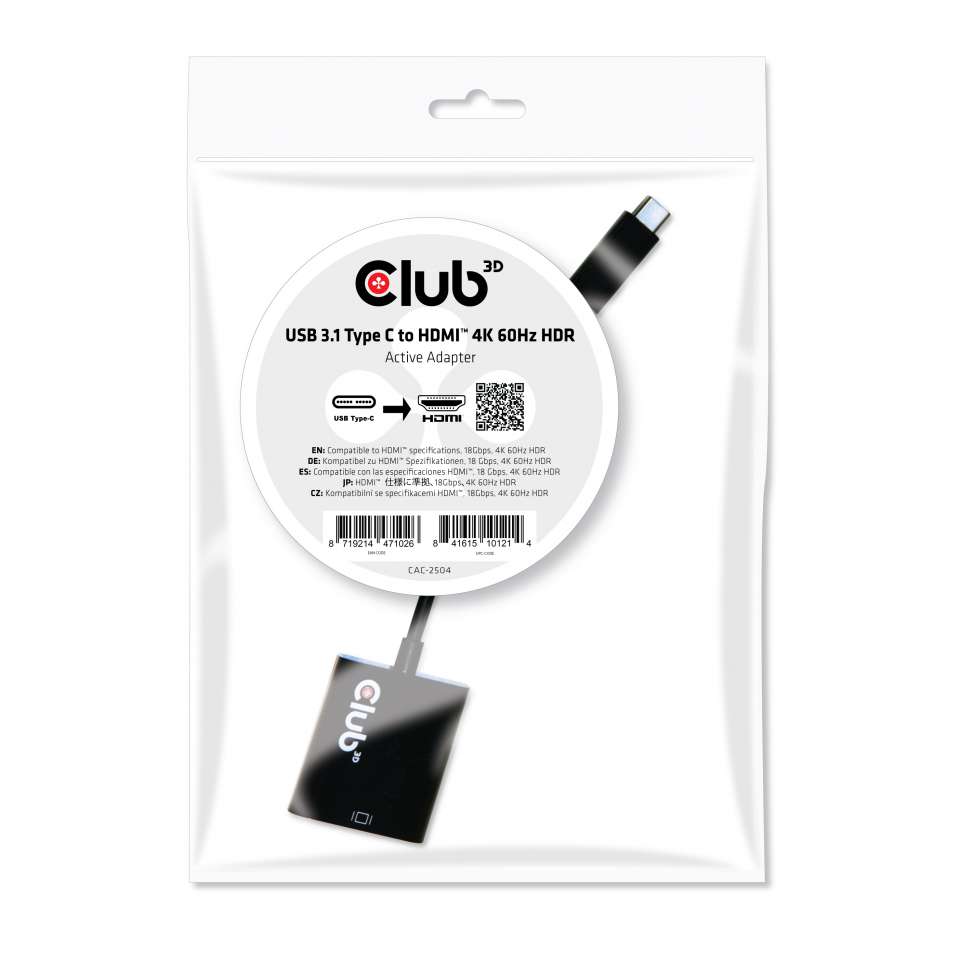

In the box:
Club 3D CAC-2504 USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz
Input:
USB type C male
Output:
HDMI™ 2.0 female
Other info:
• Poly Bag size: 215 x 150 x 18 mm.
• Poly Bag Weight: 10 gr.
• Product Weight: 21 gr.
• Total Weight: 31 gr.
• Adapter size: 180 x 37 x 15 mm.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W

Read more

HDMI



Read more

POSSIBLE RESOLUTIONS


Read more
