DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F
DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F
DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F
Enlarge

DisplayPort 1.4 Active Repeater 4K120Hz HBR3 F/F

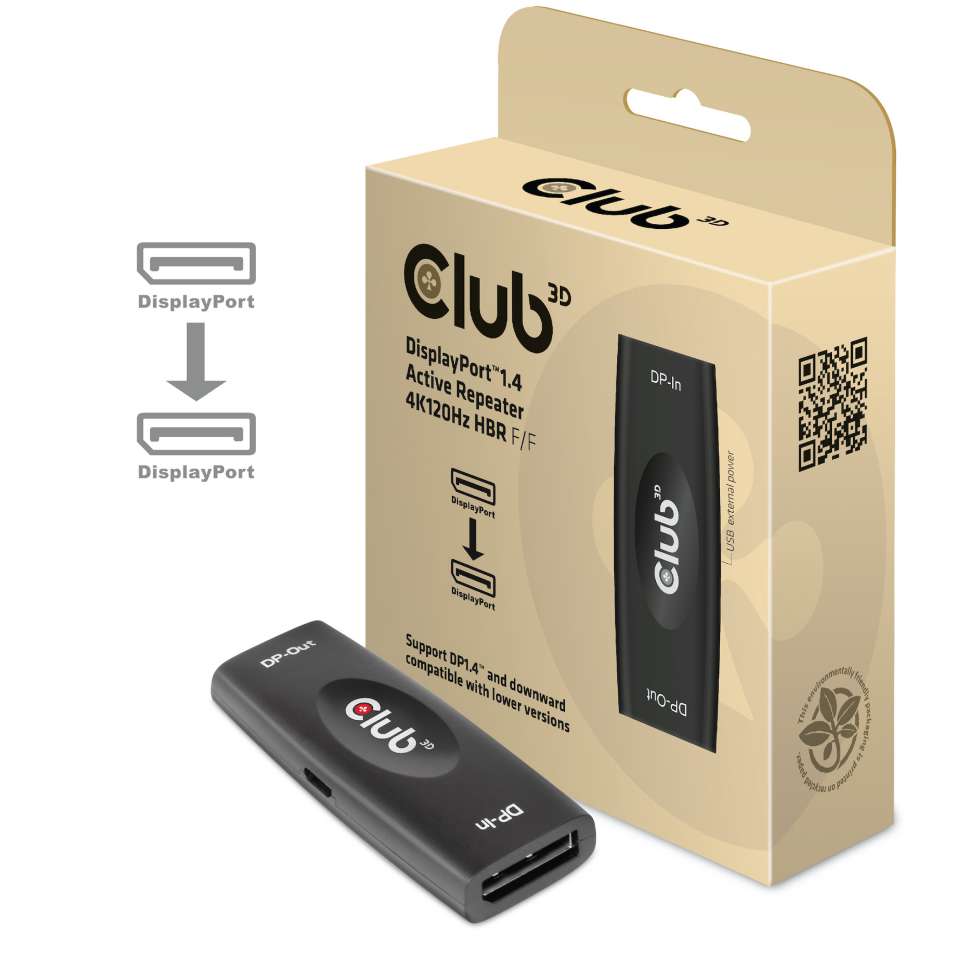

The Club 3D CAC-1007 is a DisplayPort™ 1.4 active repeater, which provides a convenient method for users to extend DP™ signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.
The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).

Related products
DisplayPort 1.4 HBR3 Extension Cable 8K60Hz M/F 2m/6.56ft
DisplayPort 1.4 HBR3 Extension Cable 8K60Hz M/F 2m/6.56ft
DisplayPort 1.4 Extension Cable 8K60Hz DSC 1.2 HBR3 HDR Bidirectional M/F 3m/9.84ft
DisplayPort 1.4 Extension Cable 8K60Hz DSC 1.2 HBR3 HDR Bidirectional M/F 3m/9.84ft
DisplayPort 1.4 HBR3 8K Cable M/M 5m /16.40ft
DisplayPort 1.4 HBR3 8K Cable M/M 5m /16.40ft

Specifications

Product Name: DisplayPort™ 1.4 Active Repeater 4K120Hz HBR3 F/F
Product Series: Adapter
Itemcode: CAC-1007
EAN code: 8719214471590
UPC code: 841615101788
Features:
• Support DP1.4™ and downward compatible with lower versions
• Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
• Support DisplayPort™ 1.4 HBR3 with max video resolution [email protected]
• Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
• Support cascading function up to 3 levels
Note: To achieve 8K transmission, the source and display should support DP1.4™, the connected cable spec should be 28AWG or above DP1.4™.
When using the cascading function to achieve longer distance, the max resolution/refresh will be decreased.
The repeater is not bidirectional, so make sure to connect the source to the input port and display to the output port.
Applications:
• For extending your DisplayPort™1.4, desktop, video converter adaptor, docking station, projector, gaming and display system like TV*, digital signage, VR/AR system.
• Perfect for Host Devices which are featured with the DP1.4™ graphic card that supports DP™ video signal output for gaming, commercial applications.
Supported resolutions:
• Support Max. resolution up to [email protected]
OS Support: All
In the box:
• CAC-1007 Active Adapter
• Micro USB to USB Type A Cable for external power
Available Interfaces:
Input: 1x DP1.4™ (Female) + 1x Micro USB to USB Type A Cable for power
Output: 1x DP1.4™ (Female)
Other info:
• Box size: 10 x 10 x 3.5 cm / 3.94 x 3.94 x 1.38 inch
• Adapter size: 6.6 x 2.5 x 1.3 cm / 2.6 x 0.98 x 0.52 inch
• USB (Power) Cable length approx.: 1 m / 3.28 ft
• USB Cable Weight: 28 gr / 1 oz
• Box Weight: 18 gr / 0.63 oz
• Adapter Weight 17 gr / 0.6 oz
• Total Weight 63 gr / 2.23 oz
• Meets ROHS, FCC, and CE EMI requirements
* Please update your TV Firmware to the version which supports these resolutions/refresh rates !
** Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
Please use one of our Extension/Adapter cables to connect to your devices:
In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to
