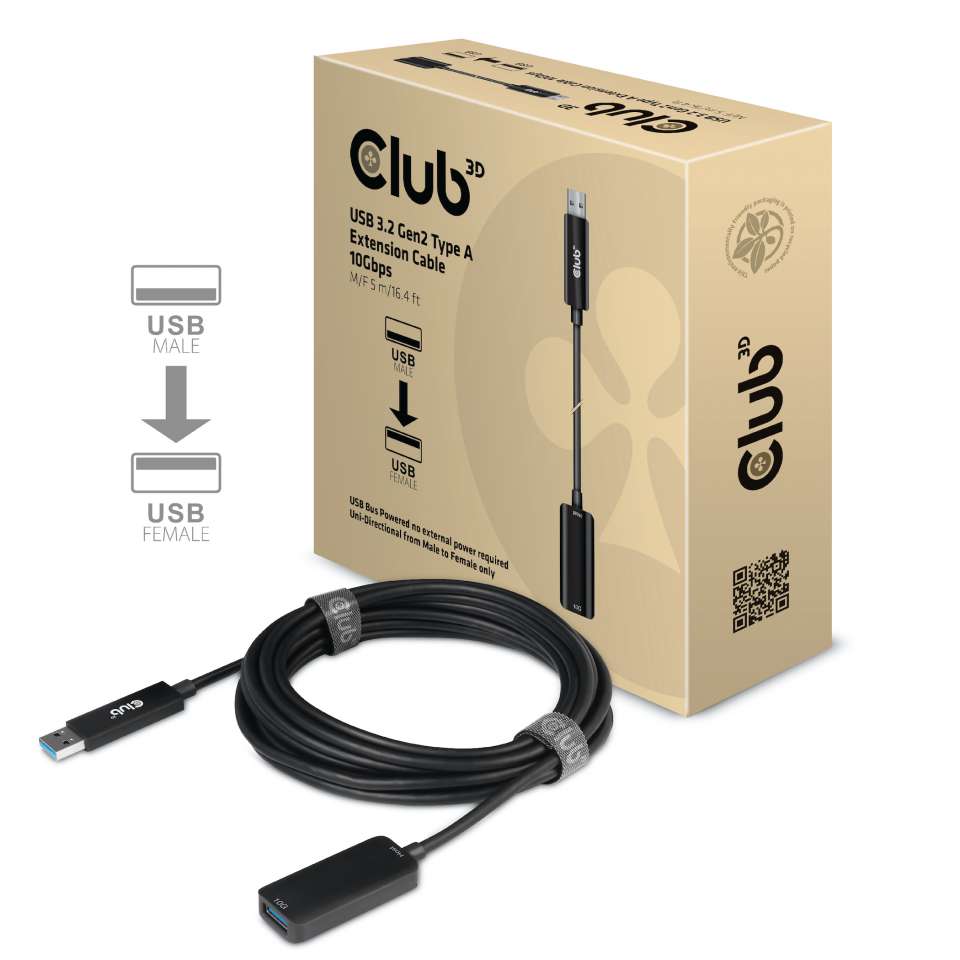

USB 3.2 Gen2 Type A Extension Cable 10Gbps M/F 5m/16.40ft
The Club 3D CAC-1411 is an USB Type A extension cable for extending and enhancing USB Signal up to 5m / 16.4 ft. It is compatible with USB 3.2 Gen 2 with a maximum of 10Gbps data transmission. Its downward compatible with lower versions, please note that specifications will be limited to the device connected.
Specifications
Product Name: |
USB 3.2 Gen2 Type A Extension Cable 10Gbps M/F 5m/16.40ft |
Product Series: Cable |
Product Code: CAC-1411 |
EAN code: 8719214471675 |
UPC code: 841615101887 |
Features: |
• USB Type A Male 1 Connector ( Connect USB A to Host , PC or mobile device ) and USB A Female 1 Connector ( Connect to USB Device ) |
• Compatible with USB 3.2 Gen2 with a maximum of 10Gbps data transmission, downward compatible with lower versions (USB 3.1/USB3.0/USB2.0) |
• Support a maximum of 5 meters or 16.40 feet distance |
• Supports a maximum of 900mA downstream charging |
• USB Bus Powered no external power required |
• Uni-Directional from Male to Female only |
NOTE: To achieve a maximum of 10Gbps bandwidth, both the USB Host and the USB Device must support 10Gbps of data transmission |
OS Support: All |
In the box: |
• USB 3.2 Gen2 Type A Extension Cable 10Gbps M/F 5m/16.40ft |
Available Interfaces |
Input: |
• USB 3.2 Gen2 Type A Male |
Output: |
• USB 3.2 Gen2 Type A Female |
Other info: |
• Box size: 17.5 x 17.5 x 4.5 cm / 6,89 x 6,89 x 1,77 inch |
• Output Cable length approx.: 5m / 16.40ft |
• Connector dimensions: |
- USB Type A Male: 4.3 x 1.6 x 0.8 cm / 1.69 x 0.63 x 0.31 inch |
- USB Type A Female: 5.05 x 2.25 x 1.15 cm / 2.16 x 0.89 x 0.45 inch |
• Cable Weight: 182 gr / 6.42 oz |
• Box Weight: 63 gr / 2.22 oz |
• LDPE Bag Weight: 8 gr / 0.28 oz |
• Total Weight: 253 gr / 8.93 oz |
• Meets ROHS, FCC, and CE EMI requirements |
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you. |
Technology
USB
Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed + SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
