Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor to HDMI
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor to HDMI
Enlarge

Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor to HDMI

CSV-6200H - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected HDMI™ screens.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.
The CSV-6200H is Plug & Play and does not require any driver installation.

Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

Check out the downloads tab for more information

Related products
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered
Multi Stream Transport (MST) Hub HDMI® Triple Monitor
Multi Stream Transport (MST) Hub HDMI® Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor

Specifications

Model:
Product Name: Multi Stream Transport (MST) Hub DisplayPort 1.2 to HDMI™ Dual Monitor
Product Series: Video Splitters
Itemcode: CSV-6200H
EAN code: 8719214470913
UPC code: 841615101108
Features:
• Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0,DisplayId,and EDID V1.4
• Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
• Supports HDMI™ 1.4 specifications for the 2 outputs.
• Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
• Supports Advanced Wide Eye™ SerDes technology enables high Jitter performance
• Supports AMD Eyefinity™
• Compatible with Microsoft Surface Pro and Intel NUC platforms
• Works with AMD, Nvidia and Intel Graphics solutions
OS Support:
Microsoft Windows 10/ 8.1
Input:
1x DisplayPort™ 1.2 Male
1x Micro USB Female for Power
Output:
2x HDMI™ Female
Other info:
• Hub size: 244 x 49 x 11 mm
• Hub Weight: 54 gr.
• Cable Length USB: 1000 mm
• Cable Weight USB: 22 gr.
• Cable Length DP: 200 mm
• Poly Bag: 160x 240 mm.
• Poly Bag Weight: 9 gr

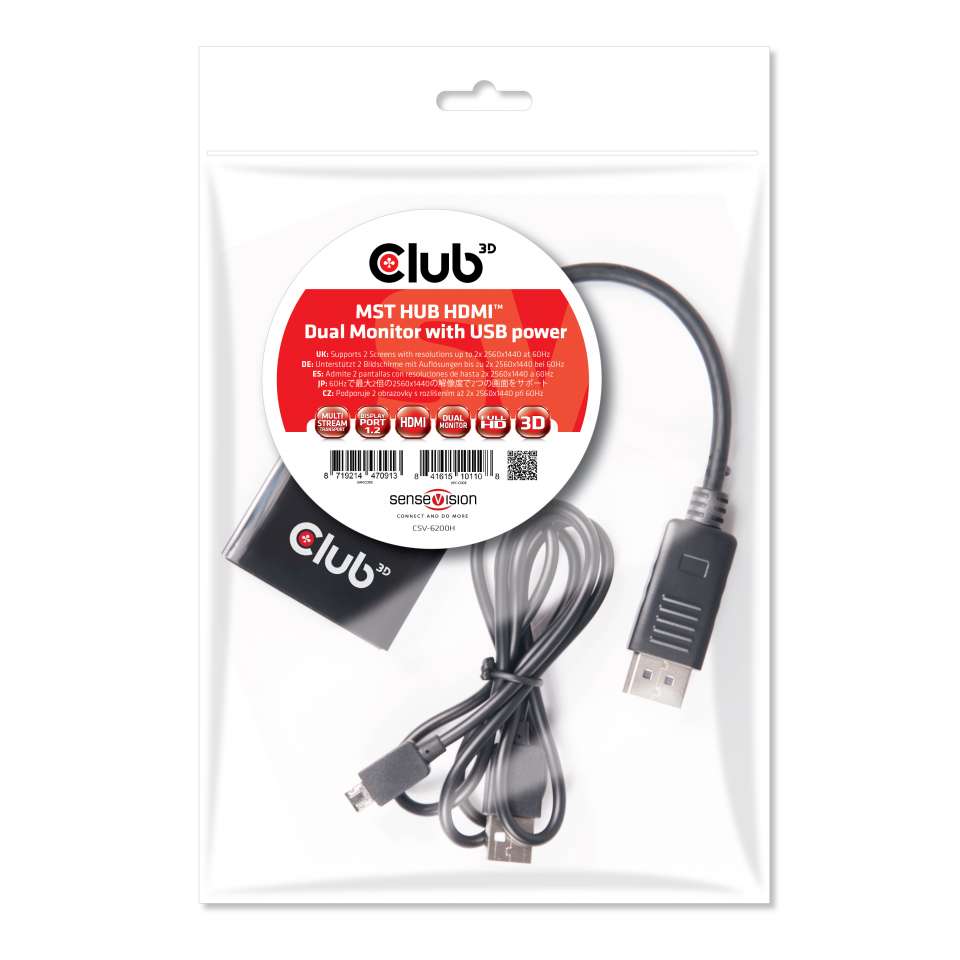

In the box:
Multi Stream Transport (MST) Hub DisplayPort 1.2 to HDMI™ Dual Monitor
USB to Micro USB Cable for power
