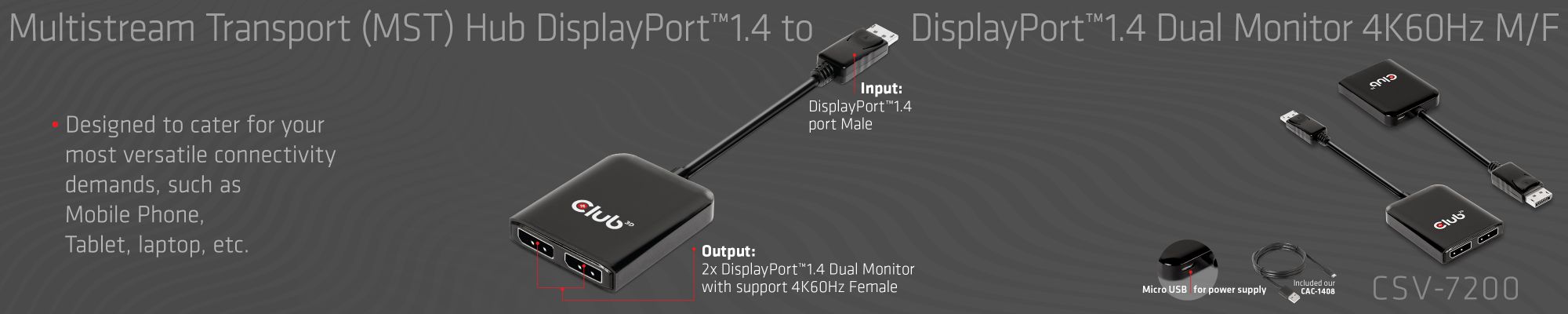

Multi Stream Transport (MST) Hub DisplayPort™ 1.4 to DisplayPort™ Dual Monitor 4K60Hz M/F

The CSV-7200 is a DisplayPort™ 1.4 to DisplayPort™ Dual Monitor 4K60Hz M/F MST hub. This DisplayPort™ 1.4 MST hub is designed to cater for your most versatile connectivity demands, such as tablets, laptops, etc. with a DisplayPort™ 1.4 output.

Give your Ultrabook more displays. Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single DisplayPort™ 1.4 port available you can now drive one- or two- Displayport™ screen(s) simultaneously at 4K60Hz or One display at 4K120Hz. All it needs is a free DisplayPort™ 1.4 port on your Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

Related products
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
Multi Stream Transport (MST) Hub DisplayPort 1.4 Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort 1.4 Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor

Specifications

Product Name:
Multistream Transport (MST) Hub DisplayPort™ 1.4 to DisplayPort™ Dual Monitor 4K60Hz M/F
Product Series: Video Splitter
Product Code: CSV-7200
EAN code: 8719214471927
UPC code: 841615102143
Features:
• Support dual display 3840 x 2160 @ 60HZ
• Support for BT.2020 color space
• Upstream port:
- DisplayPort™ 1.4 port
• Downstream port:
Windows(MST model)
- Support Dual Displayport™ (3840 x 2160@60Hz)
- Support Single Displayport™ (3840 x 2160@120Hz)
or
MAC OS(SST model)*
- Support Single Displayport™ (3840 x 2160@60Hz)
- Support Dual Displayport™ (3840 x 2160@30Hz)
* This resolution specification might be limited by the device itself
Disclaimer: * Specification is subject to change without notice.
OS Support:
• Windows®10, Mac OS®

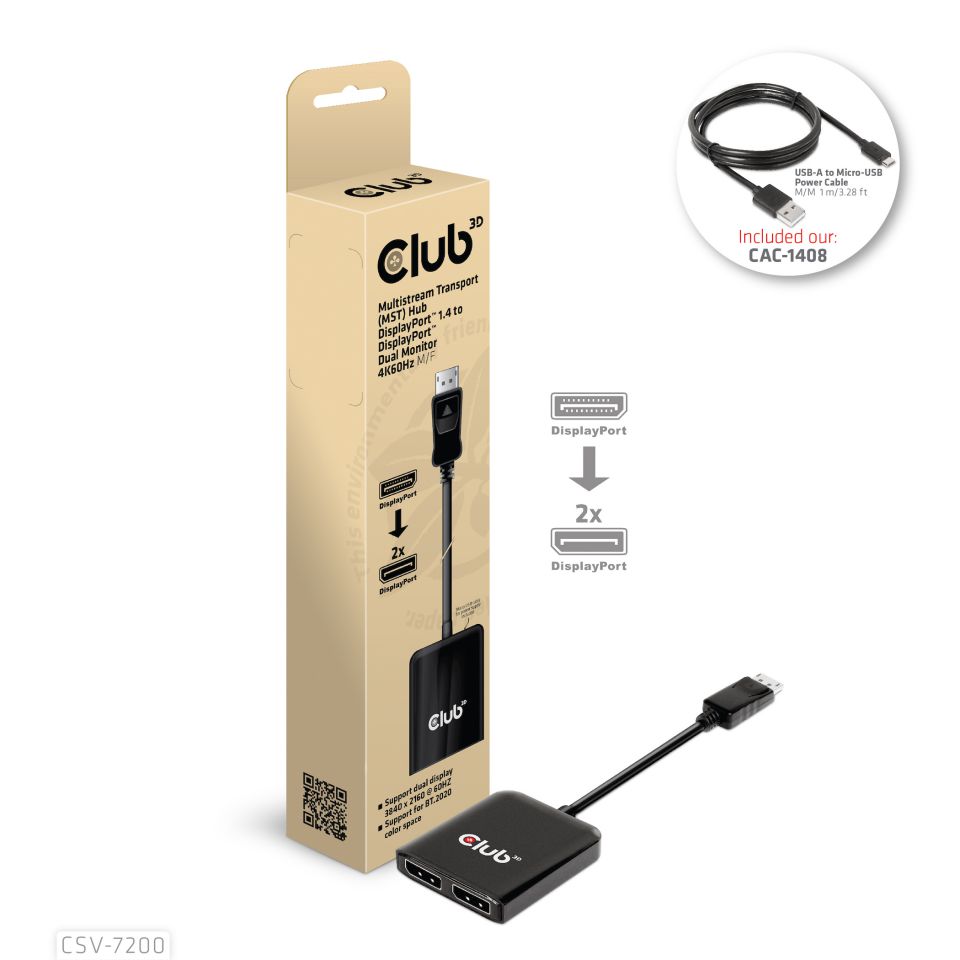

In the box:
• CSV-7200, Multistream Transport (MST) Hub DisplayPort™ 1.4
to DisplayPort™ Dual Monitor 4K60Hz M/F
• CAC-1408, USB 3.2 Gen1 Type-A to Micro USB Cable M/M 1m /3.28ft for External Power
Available Interfaces
Input:
• DisplayPort™ Male
Output:
• 2x DisplayPort™ Female
Other info:
• Box size: 6x24x3.5cm / 2.36 x 9.45 x 1.38"
• Device size: 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44"
• Total length Device: 20 cm/ 7.87"
• Box Weight: 28 gr / 0.99 oz
• Device Weight: 50 gr / 1.76 oz
• CAC-1408 Cable Weight: 26 gr/ 0.95 oz
• LDPE Bag Weight: 5 gr / 0.17 oz
• Total Weight: 109 gr / 3.87 oz
• Meets ROHS, FCC, and CE EMI requirements
