DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter

Enlarge

DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter

CAC-1070 The Club 3D is an active HDMI™ signal converter. The DisplayPort™ 1.2 to HDMI™ 2.0 UHD Adapter is the easiest solution for connecting your DisplayPort™ 1.2 enabled Game PC or recent laptop to an HDMI™ 2.0 enabled 4K UHD Television, monitor or Projector. The adapter is fully compliant to HDMI™ 2.0 specification allowing for 6Gbps TMDS throughput per channel. The interface in the adapter has three lanes for HDMI data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps.

Supports up to 4K UHD Resolution at 60Hz.
The DisplayPort™ 1.2 to HDMI™ 2.0 adapter supports (U)HD resolutions of up to 4K UHD 3840x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your DisplayPort™ 1.2 enabled device in (Ultra) high- resolution. Supporting up to 8 channels of audio, the adapter provides Ultra High

Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/ 60 gameplay but lacks a native HDMI™ 2.0 output in their system configuration.

Specifications

Model
Product Name: DisplayPort™ 1.2 to HDMI™ 2.0 4K60Hz UHD Active Adapter
Product Series: Adapter
Weight: 56 gr
Cable length: 180 mm
Item Code: CAC-1070
EAN Code: 8719214470050
UPC Code: 841615100149

Features
• Compliant to DisplayPort™ Specification 1.2 for 1.62Gbps,2.7Gbps and 5.4Gbps per lane. Effective video bandwidth 17.28Gbps
• Compliant to HDMI™ Specification 2.0, data rate up to 6Gbps per TMDS channel. Total throughput 18Gbps
• Supports full link training and no link training
• Repeater for HDCP 1.3 and HDCP 2.2
• Supports UHD resolutions up to 4096 x 2160p @ 60Hz, 8Bit BPC
• Supports 3D video support up to 1080p @120Hz
• Supports RGB up to 12 bpc, YCbCr -4:2:2 -4:2:0 up to 12 bpc
• Supports AMD Eyefinity Feature

Connector 1:
DisplayPort™ 1.2 Male
Connector 2:
HDMI 2.0 Female

Compatibility
Supports Nvidia® Maxwell cards and Intel® Skylake HD 5XX series and newer. Not intended for older architectures (such as Intel Haswell HD 4XXX / NVidia Kepler 5xx series Graphics)

Operating Systems
Windows 10/8.1, Apple OS X

Other info:
• Boxsize: 182 x 60 x 35mm.
• Cable: 150 x 23 x 10mm.
• Weight: 56 gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

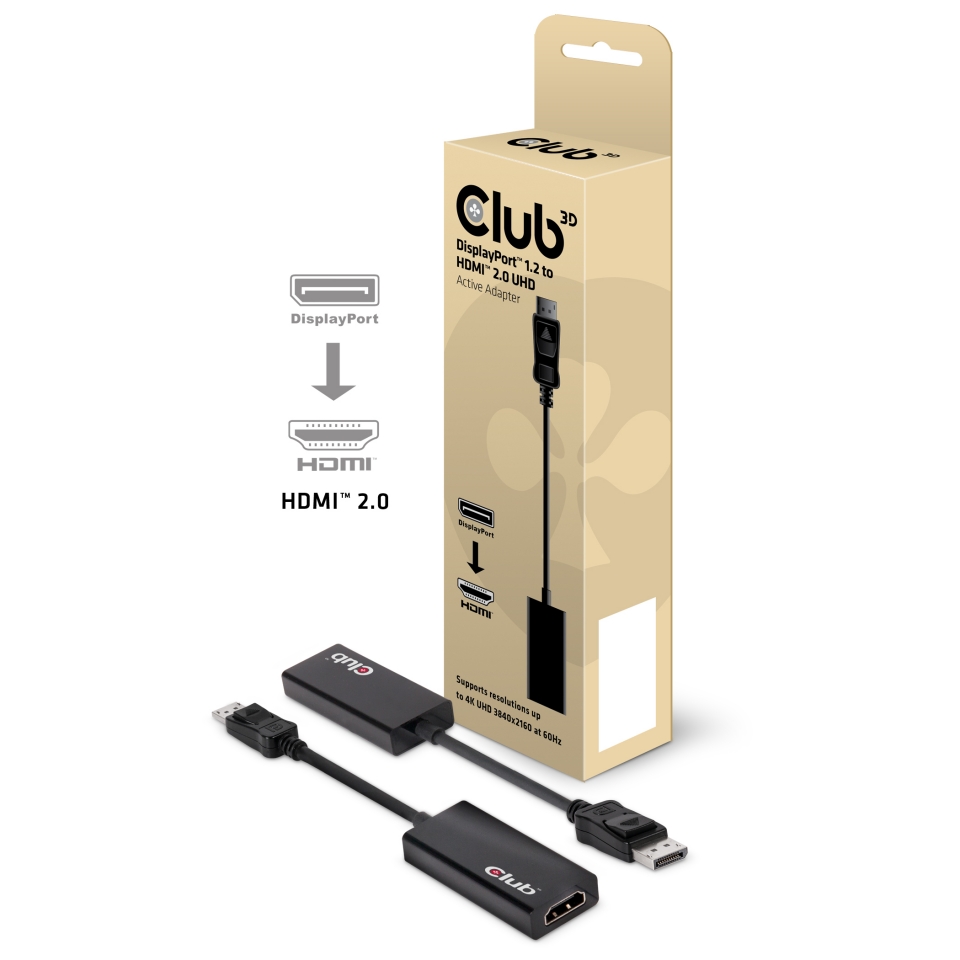

In the Box
Club 3D CAC-1070 DP 1.2 to HDMI™ 2.0 UHD Active Adapter
