8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz PD Max.100Watt

Enlarge

8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz PD Max.100Watt

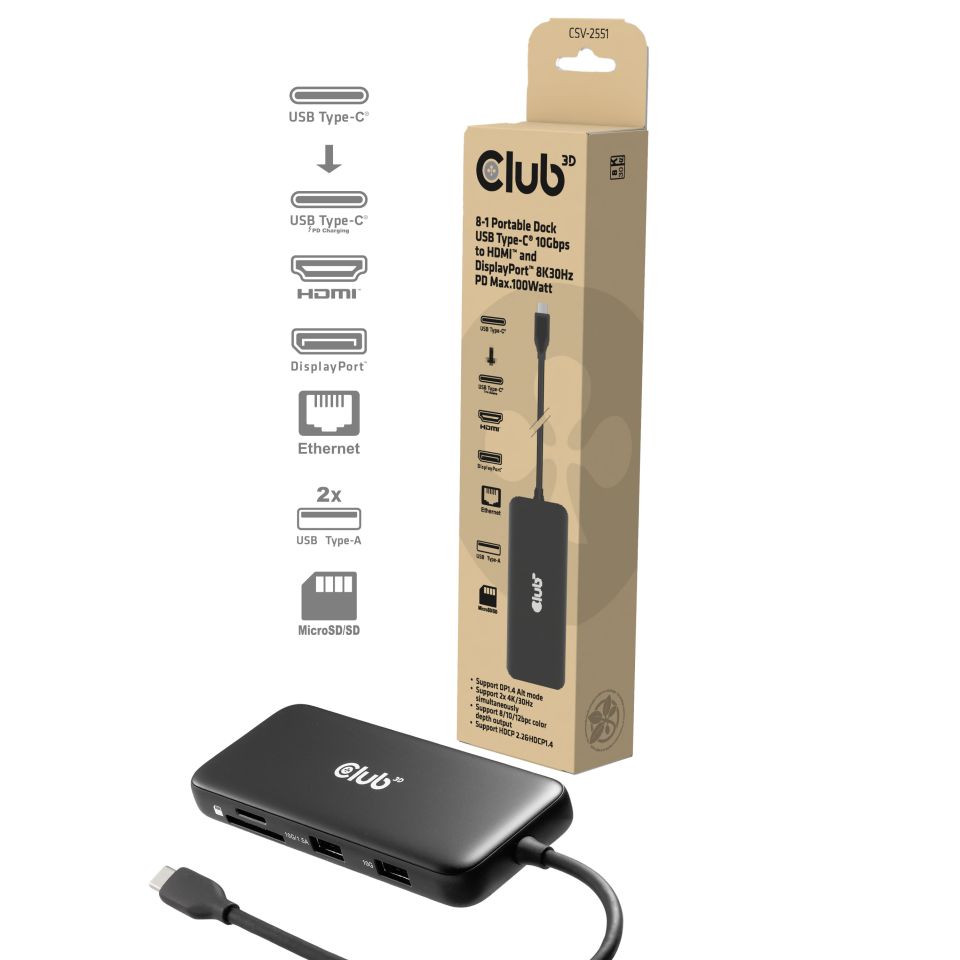

The Club 3D CSV-2551 is a 8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz, 2 USB Type-A, RJ45, SD/TF card slots and USB Type-C® PD3.0 Max.100Watt female port, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt host.

• 8-PORT USB Type-C®: Expand the connectivity of a USB Type-C® computer by adding two USB Type A 10Gbps Ports, One Power Delivery 3.0 USB Type-C® Port Max. 100Watt.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gb network controller that delivers speeds of 10/100/1000Mbps; For laptops / devices without a USB Type-A or Ethernet, such as MacBook /iPad Air / Pro; USB Type-C® connectivity while providing power for PD3.0 charging.
• RELIABLE PERFORMANCE: USB bus powered or via external USB Type-C® power adapter; 100W Power Delivery 3.0 pass through with 15W dedicated to the functioning of this product, the rest power (max 85W) will be passed for charging the host.

Specifications

Product Name:
8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz PD Max.100Watt
Product Series: Hub
Product Code: CSV-2551
EAN code: 8719214473488
UPC code: 841615103737

Features:
• Support DP1.4 Alt mode
• Support 2x 4K/60Hz simultaneously (Source needs to support DP1.4 4lanes and DSC1.2)
• Support 8/10/12bpc color depth output
• Support HDCP 2.2&HDCP1.4
• 1x USB Type-C® PD 3.0 100W
• 2xUSB Type A 10Gbps data and 9W share
• Ethernet Support 10M/100M/1000M bandwidth
• SD/TF card slots support to transmission data with max 104MBps, allow SD/Micro SD to work simultaneously
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging out PD Adapter


OS Support:
• Windows 10 upwards, macOS 15

In the box:
• 1x CSV-2551
• 1x Quick Install Guide

Available Interfaces
Input:
• 1x USB 10Gbps

Output:
• 1x USB-C® PD
• 1x HDMI™
• 1x DisplayPort™
• 1x Ethernet 1G
• 1x USB-A 10Gbps
• 1x USB-A 10Gbps
• 1x MicroSD/SD 4.0

Other info:
• Product size: 12 x 5 x 1.55cm / 4.72 x 1.97 x 0.61in
• Box size 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38in
• Cable length approx.: 17cm / 6.7in
• Connector dimensions:
USB-C® 3.62 x 1.2 x 0.63cm / 1.43 x 0.47 x 0.25in
• Product Weight: 107g / 3.77oz
• Box Weight: 28g / 0.99oz
• Bio Bag Weight: 2g / 0.07oz
• Total Weight: 137g / 4.83oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). Make sure your USB-C® port supports DisplayPort ALT mode, which is required to send video through the port. To use the full potential of this device, your setup must support all required standards.
