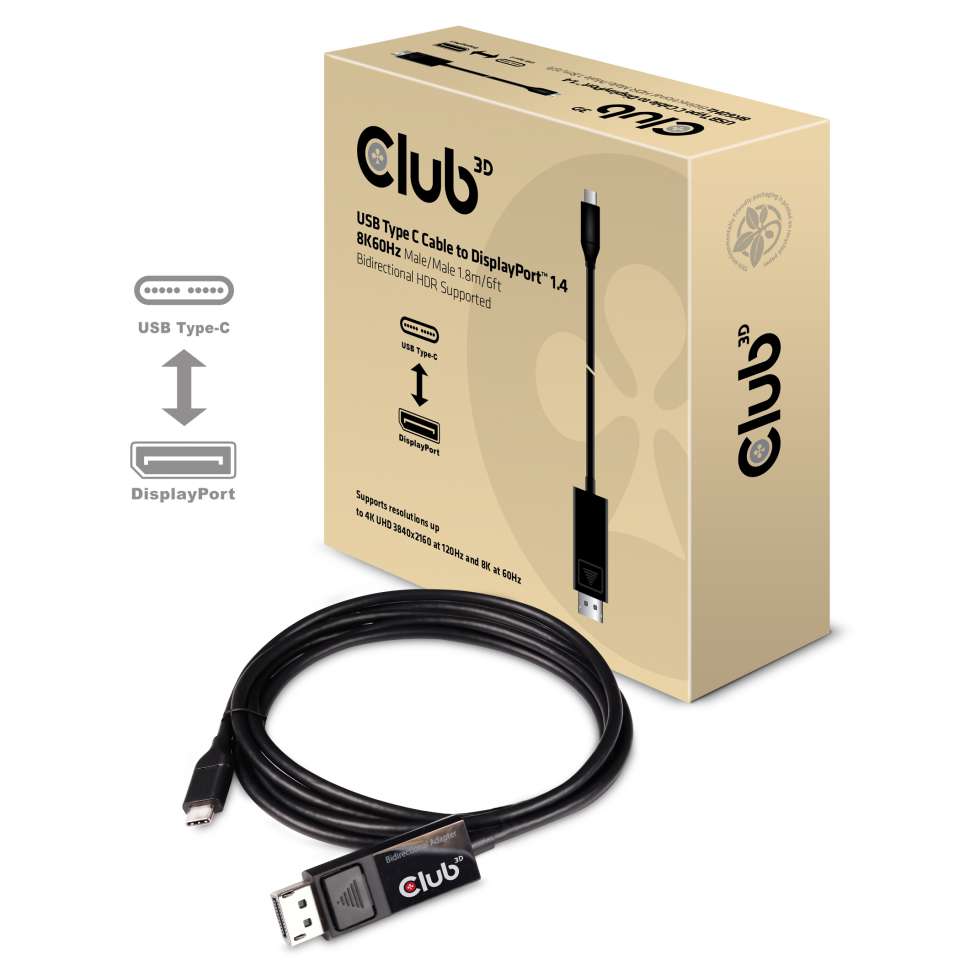

USB Type C Cable to DP 1.4 8K60Hz M/M 1.8m/5.9ft
USB Type C Cable to DP 1.4 8K60Hz M/M 1.8m/5.9ft
USB Type C Cable to DP 1.4 8K60Hz M/M 1.8m/5.9ft
Enlarge

USB Type C Cable to DP 1.4 8K60Hz M/M 1.8m/5.9ft

CAC-1557 - The Club 3D CAC-1557 is a DisplayPort™ signal converter. The USB Type C to DisplayPort™ 1.4 Cable is the easiest solution for connecting your USB Type C source device featuring DisplayPort™ Alternate Mode to a DisplayPort™ 1.4 Monitor, Television or Projector and vice versa. Powered by the USB Type C port, the adapter requires no external power and is ideal for use with the latest notebooks / MacBook (pro) and Tablets.

Supports up to 4K UHD Resolution at 120Hz and 8K at 60Hz and HDR
The USB Type C to DisplayPort™ 1.4 Cable supports UHD resolutions up to 4K UHD @ 120Hz or 8K at 60Hz for a clear, sharp picture and HDR. The support for 120 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB Type C or DP 1.4 enabled device on a Ultra High Resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video. Does not support Dual Mode DisplayPort™ (DP++)

Compatible with all Operating Systems
The USB Type C to DisplayPort™ 1.4 Cable supports all USB Type-C devices with DisplayPort™ ALT mode 1.4 and operating systems, including and not limited to Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.

Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.

Related products
USB 3.1 Type C Cable to DisplayPort 1.2 UHD Adapter M/M 1.2m/3.94ft
USB 3.1 Type C Cable to DisplayPort 1.2 UHD Adapter M/M 1.2m/3.94ft
USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60 W Adapter
USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60 W Adapter

Specifications

Product Name:
USB Type C Cable to DisplayPort™ 1.4 8K60Hz Bidirectional HDR Support Male/Male, 1.8m or 6ft.
Product Series: Cable
Itemcode: CAC-1557
EAN code: 8719214471224
UPC code: 841615101412
Features:
• Reversible USB Type-C connector
• Compliant to VESA DisplayPort™ Alt Mode 1.4 Standard
• Supports full link training and no link training
• Supports (U)HD resolutions up to 3840 x 2160p @ 120Hz and 8K@60Hz
• Supports 3D Video formats up to 1080p @ 120Hz
• Powered by USB Port (no external power needed)
• Powered by USB Port (no external power needed)
• The cable is bidirectional
To Support this maximum resolution its important that the source device supports USB C DisplayPort Alt Mode 1.4 - Please consult with your device manufacturer for this specification. For Example Nvidia RTX series will support this standard.
OS Support:
Apple OS X
Microsoft Windows
Google Chrome OS
In the box:
• Club 3D USB Type C Cable to DisplayPort™ 1.4 8K60Hz HDR Support Male/Male, 1.8m or 6ft.
Input:
• USB Type C Male
Output:
• DisplayPort™ 1.4 male
Other info:
• Box size: 14.5 X 14.5 x 4.5 cm.
• Cable: 180 x 2.2 x 1.0 cm.
• Weight: 70 gr.
• ESD bag: 6 gr.
• Retail box including cable and ESD, 124 gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
