USB Type A and C Dual Power Charger up to 60W

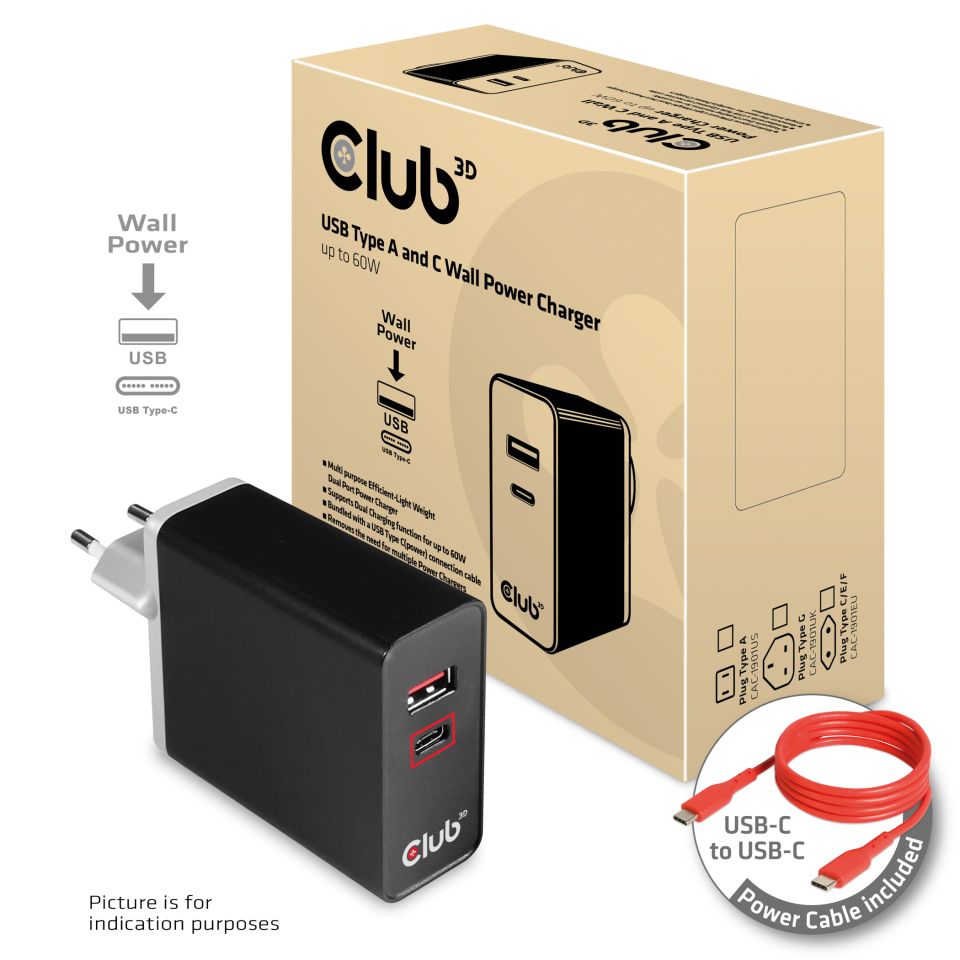

CAC-1902 - The Club3D Dual Wall Power Charger for up to 60 Watt, with dual USB Type A and C connector is designed for users who need to charge their PC/NoteBook/Tablet/Mobile phone as well as their docking station. It has an integrated AC connector for direct use into a wall socket.

The Power Charger is light weight without compromising on Quality and safety. By adopting PowerDelivery charging technology, the charging function through both USB Type A and Type C interface, you can charge any USB C powered device via the bundled USB C cable.

Charging
By adopting PD Charging technology and charging function through both USB Type A and/or C interfaces the Club3D Power Charger offers unique functionality. The USB Type-C connector is compliant with PD2.0 charger and Quick Charger 3.0 technology (available only when using USB C alone) It will charge your device up to 60W when used alone and 45W in combination with 12W of the USB A.

Related products
USB TYPE C POWER CHARGER UP TO 27W
USB TYPE C POWER CHARGER UP TO 27W
USB Type A and C Power Charger, 5 ports up to 111W
USB Type A and C Power Charger, 5 ports up to 111W

Specifications

Product Name: USB Type A and C Wall Power Charger up to 60W
Product Series: Power Charger
Itemcode: CAC-1902
EAN code: 8719214471347
UPC code: 841615101535
Features:
• Multi purpose Efficient-Light Weight Dual Port Power Charger
• Supports Dual Charging function for up to 60W
• Bundled with a USB Type C(power) connection cable
• Removes the need for multiple Power Chargers
• Simple installation
• Integrated mains connector (country specific version)
• USB Type A port x1 output 5V /2.4A = 12W max
• USB Type C port x1 Support PD Charging
When charge in combination with USB A output is 5V-9V-12V-15V/3A, 20V/2.25A up to 45W
When charged USB C alone output is 5V-9V-12V-15V-20V/ 3A to 60W - supports PD 2.0 and QuickCharging 3.0
• Overload, Over Current, Over Temperature and Short Circuit Protection
• Auto Recovery from Fault condition
OS Support: All
In the box:
• CAC-1902 Power Charger with integrated mains connector and Dual
USB Type A and C connector
• USB Type cable for connection between Host system and Power Charger
Input:
• AC power plug
Output:
• USB Type C Male
• USB Type A Male
Other info:
• Box size: 26 x 6 x 7.5 cm
• Box size: 10.23 x 2.36 x 2.76 inch
• Device size: 12 x 5.2 x 6.3 cm / 4.72 x 1.97 x 2.36 inch
• Device Weight: 183 gr. / 6.45 oz.
• USB C cable Weight: 24 gr. / 0.85 oz.
• Total Weight: 247gr. / 8.71 oz.
• Meets ROHS, FCC, and CE EMI requirements

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
