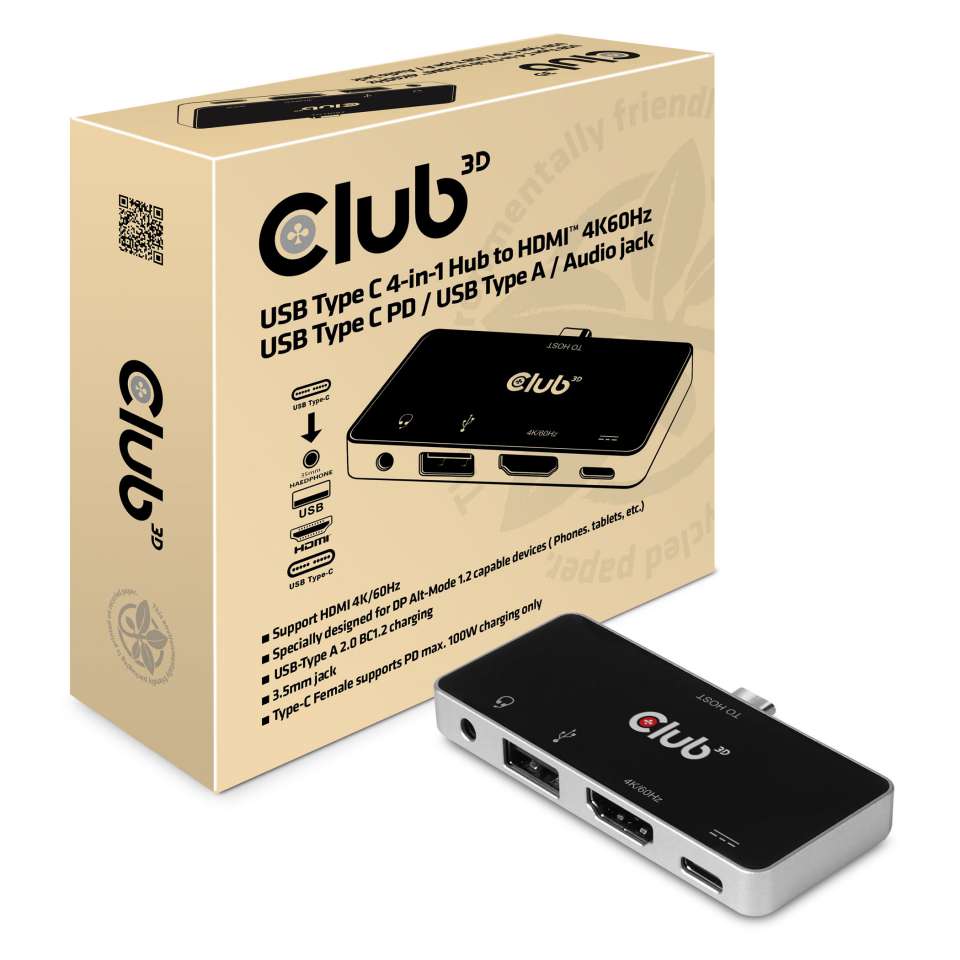

USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack
CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.
This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
Specifications
Product Name: USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack |
Product Series: Docking Station |
Itemcode: CSV-1591 |
EAN code: 8719214471453 |
UPC code: 841615101634 |
Features: |
• Upstream: |
1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps |
• Downstream: |
1x HDMI™ Female |
Support HDMI™ max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth |
Support 6/8/10/12 bit color depth output |
Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 |
Support HDCP 2.2 & HDCP1.4 |
Support HDR |
1x USB Type A 2.0, Max 480Mbps bandwidth |
• Support BC 1.2 with max 7.5W([email protected]) downstream charging |
• 1x 3.5mm combo audio* |
Support 48K/44.1KHz sampling rate Audio output |
* Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected. |
• When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last. |
• When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port |
OS Support: All |
In the box: |
• CSV-1591, 4-in-1 Hub |
• Quick Install Guide |
Available Interfaces: |
• Upstream: |
- 1x USB Type C Male |
- (Host connection) |
• Downstream: |
- 1x HDMI™ 4K60Hz Female for connecting to Monitor |
- 1x USB type A, BC1.2 charging |
- 1x USB Type-C Female, PD Charging only |
- 1x.3.5mm combo audio |
Other info: |
• Box size: 10 x 10 x 3 cm |
• Box size: 3.93 x 3.93 x 1.18 inch |
• Device size: 7.2 x 3.2 x 0.9 cm |
• Device size: 2.83 x 1.26 x 0.9 x 0.35 inch |
• Device Weight: 35 gr / 1.23 oz |
• LDPE Bag Weight: 5 gr / 0.17 oz |
• Box Weight: 65 gr / 2.3 oz |
• Total Weight: 105 gr / 3.7 oz |
• Meets ROHS, FCC, and CE EMI requirements |
Technology
USB
Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed + SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
