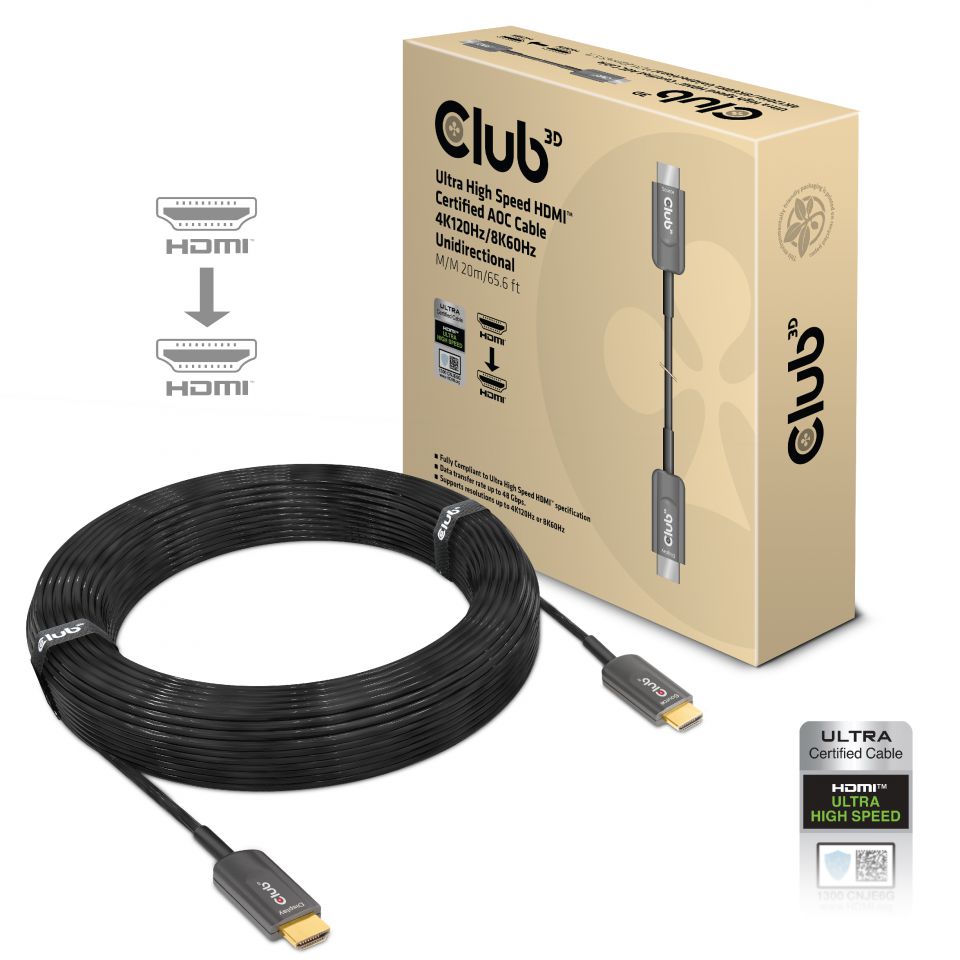

Ultra High Speed HDMI™ Certified AOC Cable 4K120Hz/8K60Hz Unidirectional M/M 20m/65.6ft
The Club 3D CAC-1379 Ultra High Speed HDMI™ Certified Active Optical Cable(AOC), allows you to connect your favourite Display over a distance of 20m/65.6ft.
Ultra High Speed HDMI™ 2.1 Increased Bandwidth to 48Gbps.The increase in maximum bandwidth compared to previous versions is achieved by increasing both the bitrate of the data channels (from 6Gbps to 12Gbps) and the number of channels (from 3 to 4). This allows support for resolutions up to supports 4K at 120Hz or 8K60Hz!
New feature included in the Specification is Display Stream Compression(DSC) 1.2 , this is used for video formats higher than 8K with 4:2:0.
Enhanced refresh rate features:
- Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid motion in games
- Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank screens before content is displayed
-Quick Frame Transport (QFT) reduces latency.
Ultra High Speed HDMI™ 2.1 also supports Static- and Dynamic HDR10 metadata.
Specifications
Product Name: |
Ultra High Speed HDMI™ Certified AOC Cable 4K120Hz/8K60Hz Unidirectional M/M 20m/65.6ft |
Product Series: Cable |
Product Code: CAC-1379 |
EAN code: 8719214471620 |
UPC code: 841615101818 |
Features: |
This product has many features that enable it to perform in a superior manner. Among those features you will find: |
• Fully Compliant to Ultra High Speed HDMI™ specification |
• Professional Certified quality cable |
• This cable is Uni - Directional because its an Active Cable. |
• Backwards compatible to earlier HDMI™ versions |
• Supports Display Stream Compression (DSC) 1.2 |
• Supports (U)HD resolutions up to 4K @ 120Hz or 8K60Hz (with DSC 1.2) |
• Supports Enhanced Audio Return Channel (eARC) |
• Supports Static- and Dynamic HDR10 Metadata |
• Support for VRR, QMS, QFT and Auto Low Latency Mode |
OS Support: |
• All |
In the box: |
• Ultra High Speed HDMI™ Certified AOC Cable 4K120Hz/8K60Hz Unidirectional M/M 20m/65.6ft |
Available Interfaces |
Input: |
• HDMI™ Type A Male (labeled Source) |
Output: |
• HDMI™ Type A Male (labeled Display) |
Other info: |
• Boxsize: 23 x 23 x 5 cm / 9 x 9 x 1.97" |
• Connector Dimensions: HDMI™ Male: |
- 6.7 x 2 x 0.9 cm / 2.64 x 0.79 x 0.36" |
• Cable Length: 20m/65.6ft.80ft |
• Box Weight: 110 gr / 3.88 oz |
• ProductWeight: 552 gr/19.47 oz |
• Total Weight: 662 gr/23.35 oz |
• Meets ROHS, FCC, and CE EMI requirements |
In order to achieve these resolutions / refresh rates, Please update your: |
- TV Firmware to the version which supports these resolutions/refresh rates! |
- Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support these resolutions/refresh rates! |
