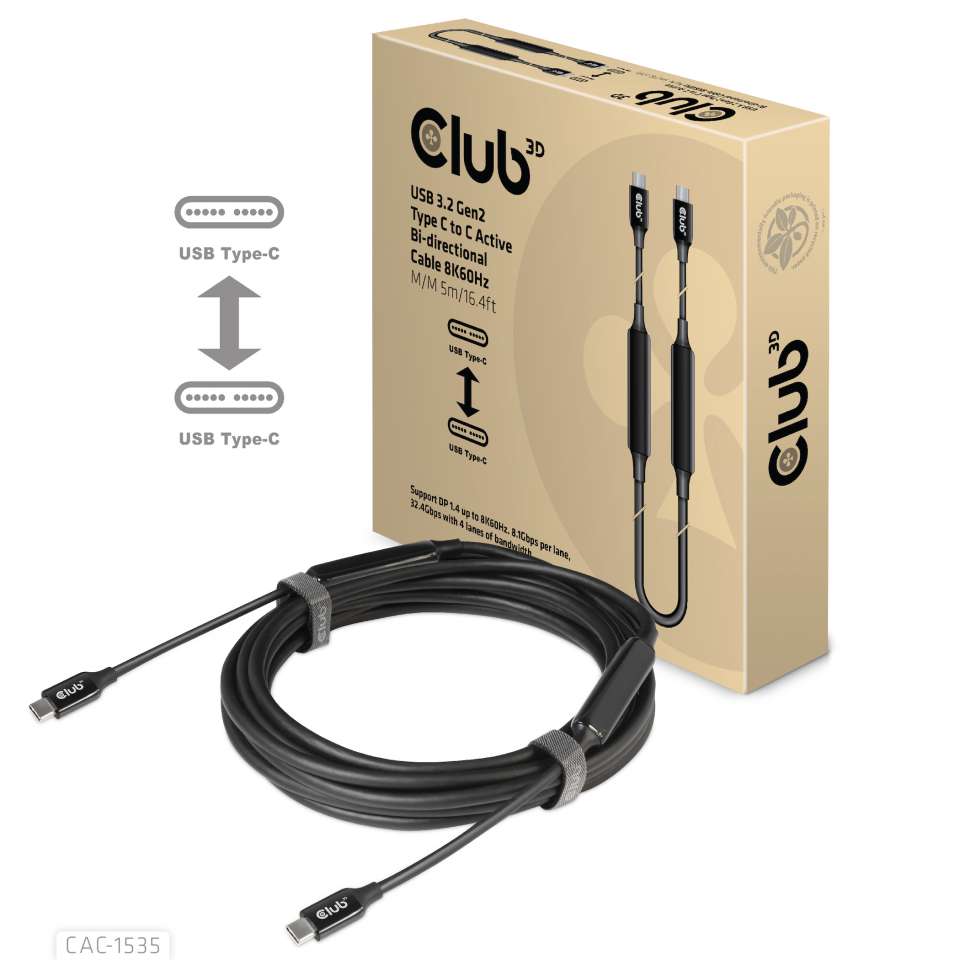

USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft

Enlarge

USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft

The Club 3D CAC-1535 is an USB Type C to USB Type C Bi-directional Active Cable with a Re-timer chipset for enhancing Video, Data and Power that reaches up to 5 meters / 16.40ft . For video its compatible with DP1.4 standards with a theoretical resolution of up to 8K@60Hz. For data it is compatible with USB3.2 Gen 2 with a maximum of 10Gbps of data transmission and for power it is capable of delivering a max of 60W (20V/3A) PD Charging.

This cable combines video,data and power functions for connecting USB Type C PC or mobile device to a USB Type C display/VR/HardDrive/
Dock/PD charger. In addition this cable is bidirectional which makes it
simple to use. Please make sure that the devices connected support DisplayPort™ Alt Mode Functions.

Note: It works with devices that support DisplayPort Alt mode 1.4, its downwards compatible, specification is limited to devices capability.

Specifications

Product Name:
USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz
M/M 5m/16.4ft
Product Series: Cable
Product Code: CAC-1535
EAN code: 8719214471699
UPC code: 841615101900
Features:
• Supports USB Type C male to male Bi-directional transmission
• Support max 5m/16.40ft transmission distance with stable signal
• Support DP 1.4 with Max theoretical resolution up to 8K/60Hz. 8.1Gbps per lane, 32.4Gbps with 4 lanes of bandwidth
• Compatible with USB 3.2 Gen2 with a maximum of 10Gbps data transmission, downward compatible with lower versions (USB 3.1/USB3.0/USB2.0)
• Supports a maximum of 60W (20V/3A) PD Charging two way charging, the product supports positive and negative connections, supports hot plugging.
• Offers a perfect solution for VR Gaming
• Built in signal enhanced Re-timer chip and E-Mark chipfor enhancing functions over longer distance than a passive USB C cable and protecting your devices while PD charging.

OS Support:
• All

In the box:
• USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft

Available Interfaces
Input:
• USB 3.2 Gen2 Type C Male
Output:
• USB 3.2 Gen2 Type C Male

Other info:
• Box size: 21 x 21 x 3.5 cm / 8.27 x 8.27 x 1.38 inch
• Output Cable length approx.: 5 meter / 16.40 feet
• Connector dimensions:
- USB C: 28 x 12.5 x 8 mm / 1.10 x 0.49 x 0.35 inch
- Active units: 83 x 15 x 9 mm / 3.27 x 0.59 x 0.35 inch
• Cable Weight: 282 gr / 9.95 oz
• Box Weight: 70 gr / 2.47 oz
• LDPE Bag Weight: 9 gr / 0.32 oz
• Total Weight: 362 gr / 12.77 oz
• Meets ROHS, FCC, and CE EMI requirements

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
