USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
Enlarge

USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports

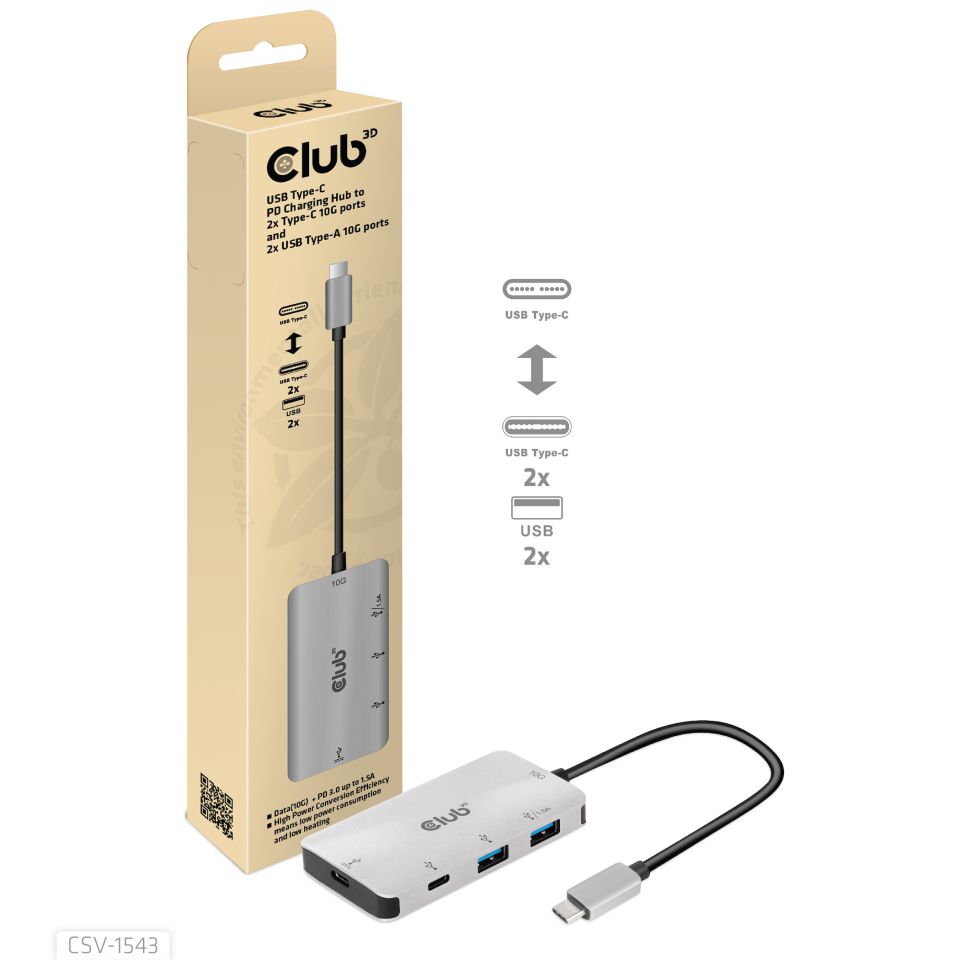

The Club 3D CSV-1543 is an USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports.The two USB Type-A ports are designed for transmitting data and one of the two USB Type-A ports can provide 1.5A charging for the connected USB Type-A devices (mobile phones, tablets, U-disk, etc). One of the two USB Type-C ports is designed for transmitting data and charging for the connected USB Type-C device, the other USB Type-C port supports both data and PD3.0 charging. It can work on any USB Type-C host (PC, notebook, tablet, Mobile phone, etc) that supports DP Alt mode.
High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V.
Advanced Power Management. The output power will guarantee uninterrupted working of USB Type-A SSD and U Disk when the Vin is in 5; 20V, so the connected USB device will not get disconnected while plugging in and out the PD Charger from the USB Type-C charging port.
Supported USB device current is as follows: 1.5A @PD3.0 device

Note:
1) When the current of the connected USB device is higher than the above listed current, the USB device will get disconnected while plugging the PD Charger and reconnect in a few seconds
2) When working on PD 2.0 supported host PC, the connected USB Type-A device will get disconnected while plugging out the USB Type-C PD Charger and then reconnect in a few seconds

Support Fast Role Swap of PD 3.0 the connected device will not get disconnected while plugging in and out PD Charger when working on PD 3.0 device

Related products

Specifications

Product Name:
USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
Product Series: Docking
Product Code: CSV-1543
EAN code: 8719214472061
UPC code: 841615102297

Features:
• High Power Conversion Efficiency, means low power consumption and low heating, 98.2%@Vin=5V; 92.5% @Vin=20V
• Advanced Power Management
• Support Fast Role Swap of PD 3.0
• Support USB Type-C input, 2x USB Type-C + 2x USB Type-A output
• Compliant with USB 3.1 specification and downward compatible with lower versions
USB Type-A
- Both USB Type-A ports support max. 10Gbps data transmission
- 1 USB Type-A supports 5V/1.5A downstream charging(when Type-C PD power Charger is connected)
USB Type-C
- 1 USB Type-C port supports max. 10Gbps data transmission speed
- Another Type-C port supports max. 10Gbps as downstream data port and max 100W PD charging as upstream charging port
- When USB Type-C PD power Charger is connected, the max output of 2x USB Type-A and 1 USB Type-C downstream ports is 3A
- When USB Type-C PD power Charger is not connected, the max output of all the downstream ports depends on the host eg:1.5A on macbook ,900mA on Chromebook, etc., depending on the specifications of your host device.

OS Support:
• All

In the box:
• CSV-1543 USB Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports

Available Interfaces
Input:
• 1x USB Gen2 Type-C Male
Output:
• 1x USB Type-C Female for Data
• 1x USB Type-C Female for Data and Charging
• 1x USB Type-A Female for Data
• 1x USB Type-A Female for Data and Charging(Max.1.5A when a USB Type-C PD Power Charger is connected)

Other info:
• Box size: 7 x 32 x 3.5cm 2.76 x 12.6 x 1.38"
• Device size: 8.5 x 4.5 x 1.2 cm / 3.35 x 1.77 x 0.47"
• Total Length: 25.4 cm / 10"
• USB Type-C connector dimensions: 3.4 x 1.3 x 0.7 cm / 1.34 x 0.51 x 0.28"
• Device Weight: 60 gr / 2.12 oz
• Box Weight: 42 gr / 1.48 oz
• LDPE Bag Weight: 3 gr / 0.1 oz
• Total Weight: 105 gr / 3.7X oz
• Meets ROHS, FCC, and CE EMI requirements

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Technology

USB A B C 4

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
