DisplayPort/HDMI KVM Switch For Dual DisplayPort 4K 60Hz

The CSV-7210 is a high performance DisplayPort™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any DisplayPort™ source to any HDMI™ or DisplayPort™ supported display. This DisplayPort™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.

CSV-7210 QUICK INSTALLATION GUIDE

Specifications

Product Name:
DisplayPort™/HDMI™ KVM Switch For Dual DisplayPort™ 4K 60Hz
Product Series: Video Splitter
Product Code: CSV-7210
EAN code: 8719214472238
UPC code: 841615102457

Features:
• Support resolution up to 4Kx2K@60Hz
• Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
• Support KVM function

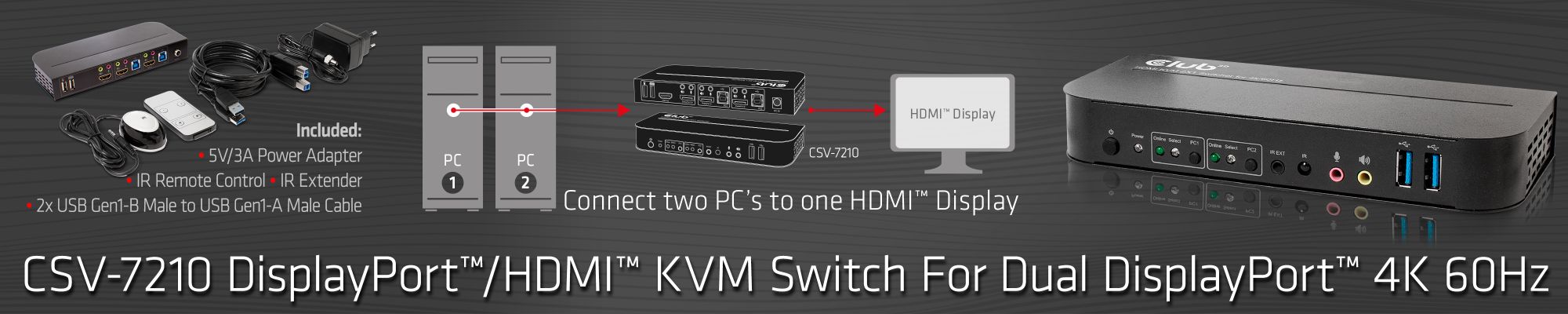

• Support a DisplayPort™ or HDMI™ display and a set of Keyboard and Mouse to control two PCs with DisplayPort™ ports
• DisplayPort™
Support 8.1Gbps per channel (32.4Gbps all channels) bandwidth
Support 16bit per channel (48bit all channels) deep color
Support HDR
• HDMI™
Support 6Gbps per channel (18Gbps all channels) bandwidth
Support 12bit per channel (36bit all channels) deep color
Support HDCP 2.2/1.4
Support HDR
• Support infrared remote control function
• Support for switching LED indications

Supported resolutions:
• Max Resolution: 38402160@60Hz, 40962160@

OS Support:
• Windows/Apple Mac OS

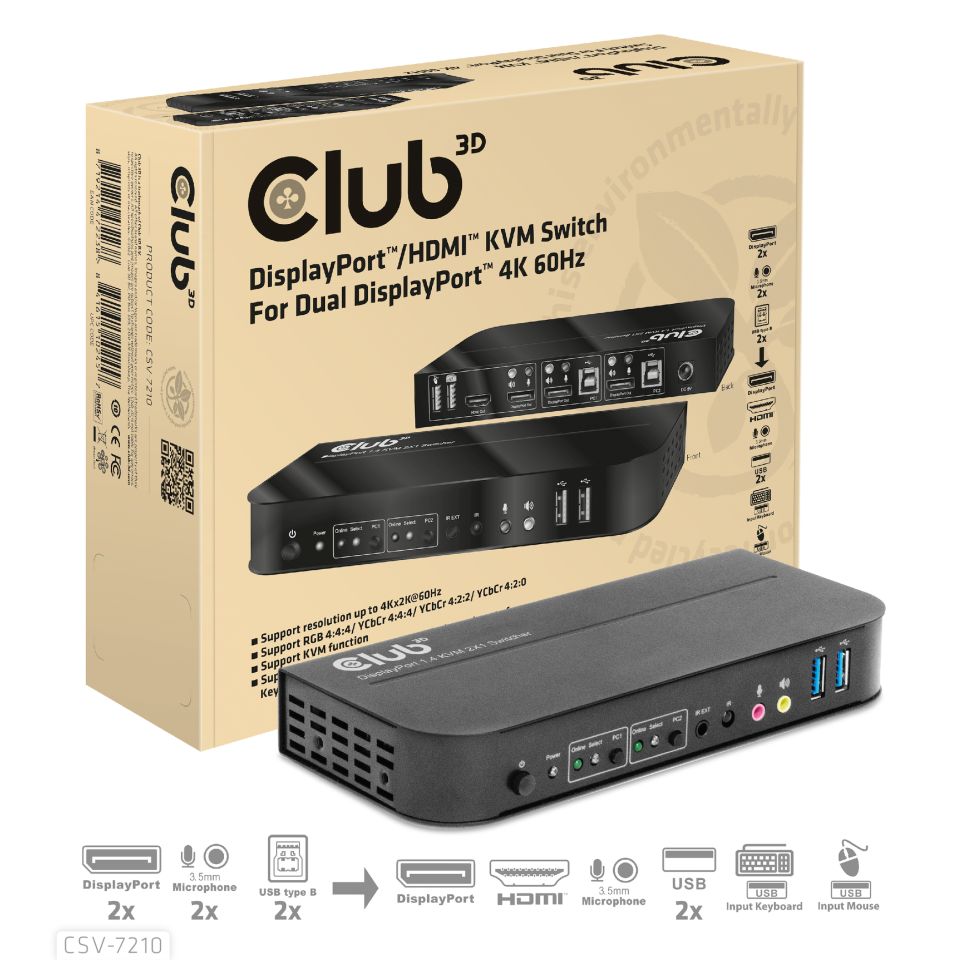

In the box:
• CSV-7210 DisplayPort™ KVM Switch x 1
• External Power Supply 5V 3A x 1
• IR Remote Control x1
• IR Extender x1
• USB Type B Male to USB A Male cable x2
• QR Code for downloading the Quick Installation Guide(QIG)

Available Interfaces
Input:
• PC 1: DisplayPort™ +
USB + Mic + Stereo Port
• PC 2: DisplayPort™ +
USB + Mic + Stereo Port
• 3.5mm Mic Input port
• DC 5V - Power Supply Unit
Output:
• 1x HDMI™ Female
• 1x DisplayPort™ Female
• 1x MIC
• 1x Stereo Jack
• 1x USB Mouse connection
• 1x USB Keyboard connection
• 3.5mm Stereo port

Other info:
• Box size: 23 x 18 x 5.5 cm / 9.05 x 7.08 x 2.56"
• Device size: 17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02"
• Box Weight: 145 gr / 5.11 oz
• Device Weight: 370 gr / 13.05 oz
• USB Type B Male cable Weight: 54 gr / 1.91 oz - 2x 108 gr / 3.81 oz
• IR Remote Control incl. battery Weight: 16 gr / 0.57 oz
• IR Extender Weight: 33 gr / 1.16 oz
• Power Adapter Weight: 107 gr / 3.77 oz
• LDPE Bag Weight: 6 gr / 0.21 oz
• Total Weight: 779 gr / x 27.48 oz
• Meets ROHS, FCC, and CE EMI requirements

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Connector
Console Connectors	USB 2.0-A x2(Back)
	HDMI™ Female x1(Back)
	DisplayPort™ Female x 1 (Back)
	3.5mm Stereo Jack (Green, 1 Front, 1 Back) x2
	3.5mm Stereo Jack (Pink, 1 Front, 1 Back) x2
KVM Connectors	USB Gen1-B x2 (Back)
	DisplayPort™ Female x2 (Back)
	3.5mm Stereo Jack(Green, Back) x2
	3.5mm Stereo Jack(Pink, Back) x2
USB HUB Connectors	USB Gen1-A x2 (Front)
Resolution
Max Resolution	3840*2160@60Hz
	4096*2160@60Hz
Operating Frequency
HDMI™ Bandwidth	18G
DisplayPort™ Bandwidth	32.4G
Mechanical
Material	Metal
Size (L-W-H)	17.8 x7.5 x 2.6 cm/ 7.0 x 2.95 x 1.02"
Weight (Net)	370 gr / 13.05 4 oz
Environmental
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	DC 5V
Power Consumption	(Max) 12W
