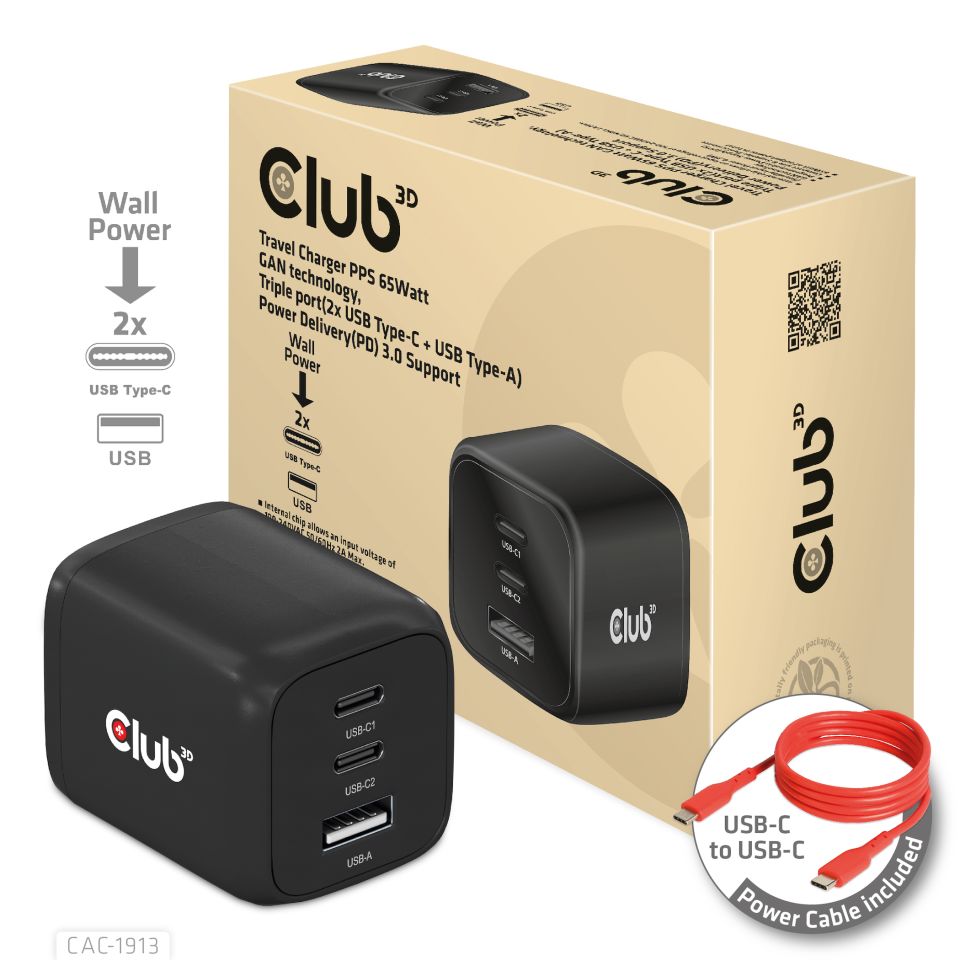

Travel Charger PPS 65Watt GAN technology, Triple port (2x USB Type-C + USB Type-A) Power Delivery(PD) 3.0 Support

Enlarge

Travel Charger PPS 65Watt GAN technology, Triple port (2x USB Type-C + USB Type-A) Power Delivery(PD) 3.0 Support

The Club3D CAC-1913 Travel Charger PPS 65Watt GAN technology, Triple port(2x USB Type-C + USB Type-A) Power Delivery(PD) 3.0 Support. GAN technology chipset makes this charger 50% smaller than a 65Watt traditional charger, small enough to carry anywhere.The Programmable Power Supply(PPS) 65Watt wall charger match a variety of PD devices from smart phones to laptops, one for all making charging simple. This wide compatibility charger will be your convenient companion during your business trip or vacation.
The Power Charger is light weight without compromising on Quality and safety. By adopting Power Delivery(PD) charging technology, this versatile Power Charger provides you with charging functions through Dual USB Type-C plus a USB Type-A interface, you can charge any connected Mobilephone / Tablet / NoteBook. Furthermore all it needs is a free USB Type-C port on your Dock/NoteBook/Tablet/ Mobile phone to be charged via the bundled USB Type-C cable.

Charging:
By adopting PD 3.0 Charging technology and charging function through USBType-C interface the Club3D Power Charger offers versatile and unique functionality. It will charge your devices up to 65 Watts. Built-in safeguards protect your devices against excessive voltage, current, overcharging and overheating(OCP-OTP-SCP-OVP).

Specifications

Product Name:
Travel Charger PPS 65Watt GAN technology, Triple port(2x USB Type-C + USB Type-A) Power Delivery(PD) 3.0 Support
Product Series: Power Charger
Product Code: CAC-1913
EAN code: 8719214472658
UPC code: 841615102891

Features:
• Internal chip allows an input voltage of 100-240VAC 50/60Hz 2A Max.(Standby Input Power 0.3W)
• GAN technology
• Programmable Power Supply(PPS)
• Compact size & Superior Performance
• 65Watt of output power in total

OS Support:
• N/A

In the box:
• CAC-1913 Travel Charger PPS 65Watt GAN technology, Triple port(2x USB Type-C + USB Type-A) Power Delivery(PD) 3.0 Support - Mains connector (Specify on Order)
• 1x RED (Power ONLY) USB Type-C cable(1 m / 3.28 ft) for connecting to Host

Available Interfaces
Input:
• 1x Mains connector(Specify on Order)
Output:
• 2x USB Type-C Female
• 1x USB Type-A Female

Single Port Output :
USB-C1 or USB-C2:
• PD 5V/9V/12V/15V⎓3A,20V⎓3.25A
• PPS: 3.3-20V⎓3.0A Total: 60W Max.
USB-A:
4.5V/5A,5V/4.5A,9V/3A,12V/2.5 A,20V/1.5A Total: 30W Max.
2-Port Output USB-C1+USB-C2:
USB-C1: 5V/9V/12V/15V⎓3A,20V⎓3.25A
PPS3.3-16V/3A) 45W Max.
USB-C2: 5V/3A,9V/2.2A,12V/1.67A
PPS: 3.3-11V/2A 20W Max.
Total 65W Max.

2-Port Output USB-C1+USB-A:
USB-C1: 5V/9V/12V/15V⎓3A,20V⎓3.25A
PPS: 3.3-16V/3A 45W
USB-A: 5V/3A,9V/2A,12V/1.5A(QC3.0 3.6-12V/1.5A) 18W
Total 63W Max.

2-Port Output USB-C2+USB-A:
USB-C2: 5V/1.5A
USB-A: 5V/1.5A
Total 15W Max.

3-Port Output USB-C1+USB-C2+USB-A
USB-C1: 5V/9V/12V/15V⎓3A,20V⎓2.25A
PPS 3.3-16V/3A 45W
USB-C2+USB-A: 5V/3A 15W
Total 60W Max.

• Power Delivery(PD) 3.0Support
• Accurate limited current output and over current protection(OCP)
• Overload protection and over voltage protection(OVP)
• Short circuit protection(SCP)
• Over temperature protection and remove the fault conditon auto-recovery(OTP)
• Compliant with UL,CE and FCC standards.
• Ligth weigth and convenient to use.

Other info:
• Box size: 11 x 13 x 5.5cm / 4.33 x 5.12 x 2.16"
• Device size 8.4 x 3.6 x 3.9 / 3.3 x 1.41 x 1.53"
• USB (Power) Cable length approx.: 1 m / 3.28 ft
• Device Weight: 120 gr / 4.23 oz
• USB Cable Weight: 35 gr / 1.2 oz
• Box Weight: 40 gr / 1.41oz
• LPDE Bag Weight: 9 gr / 0.3 oz
• Total Weight(depending on PowerPlug) approx.: 204 gr / 7.2 oz
• Meets ROHS, UL, FCC, and CE EMI requirements

Warning Safe Usage: Only to be used at altitude 2000 meters/6562 feet and below.

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Technology

POWER

Some external devices, like the computer mouse, also need some power from the USB Port to operate. This power can be delivered through standard USB connection. The Default Power that USB 1.0 and 2.0 can deliver is 2.5Watt (5Volt, 0.5A), USB 3.0 and 3.1 can deliver 4.5Watt (5V, 0.9A), USB 3.2 can deliver 7.5W (5V/1.5A) and USB 4 can deliver 240Watt. For the external devices requiring more power, different technologies have been developed. It is important to distinguish following 2 technologies: "USB Power Delivery" and "USB Battery Charging".

USB Power Delivery (PD): Power Delivery works equally well with USB2.0, 3. and 4 allowing power draw up to 240Watt from the source device. The power can be transferred simultaneously with data through the same cable. The goal of this technology is to permit uniform, consistent charging for laptops, tablets, USB-powered drives and similarly higher power consumer electronics. Please note that an Active USB Type C Cable with E-Marker Chip, like the Club 3D CAC-1573, is recommended to use for the Power Delivery up to 240 Watt to ensure safe connection. USB PD3.1 is defined by different profiles and depends on the configuration used by each manufacturer.
