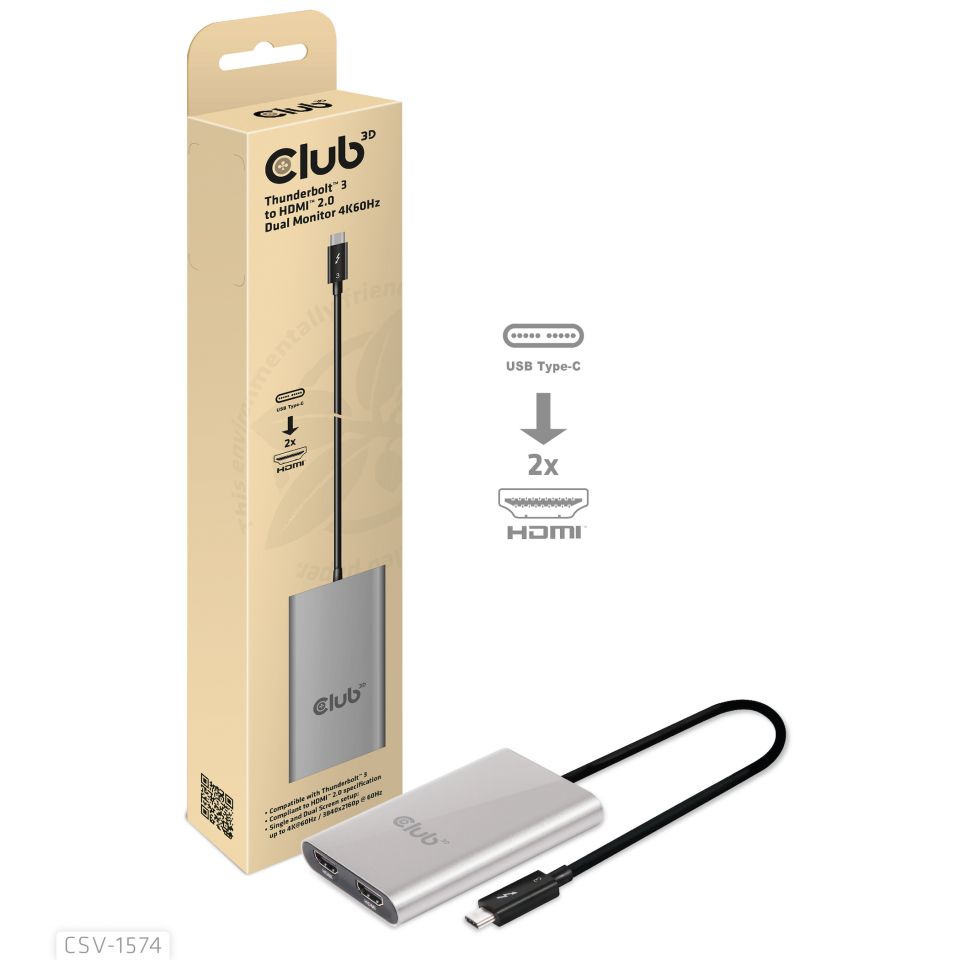

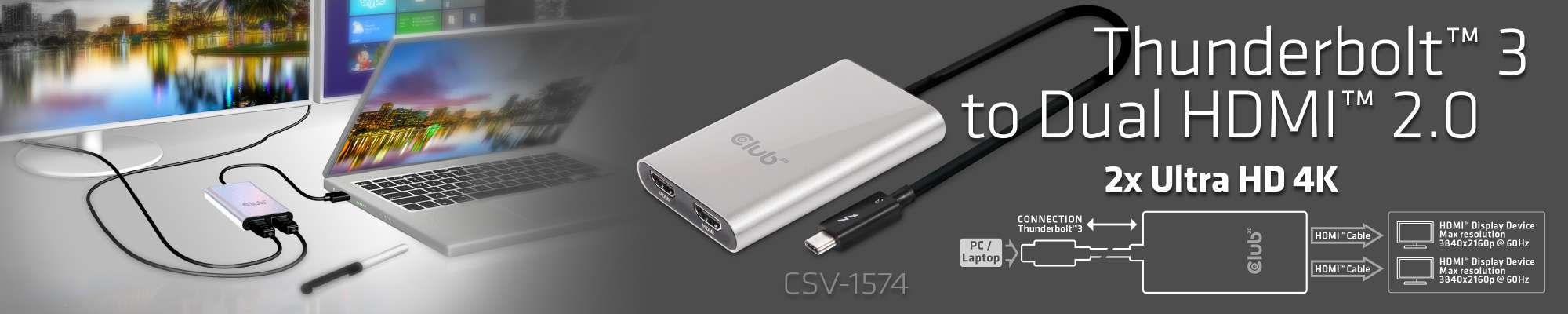

Thunderbolt 3 to HDMI 2.0 Dual Monitor 4K60Hz M/F
CSV-1574 - The Thunderbolt™ 3 to HDMI™ 2.0 Dual Monitor 4K60Hz lets users easily connect two HDMI™ 2.0 Screens to any device with a Thunderbolt™ 3 interface. This unique adapter is compatible with both Mac OS and Windows™ 10. The output resolution supported is up to 4K@60Hz for Single Screen and Dual Screen setups. It is fully Plug & Play, so no need for driver installation. This stylish adapter has a beautiful Brushed Aluminum Casing making it strong and light.
It is also very slim, 16 mm, making it easy to carry with you.
Multiply your screen area with your tablet, desktop PC or Ultrabook. With multiple monitors your computer will become more useful and you will become more efficient and accomplish more. With 2 displays delivering 4K performance, you can have four times the screen space compared to 1080p.
Important note for Apple M1-chip based computers:
Please note that for Mac Systems based on M1 Architecture the Multi Display function of Thunderbolt 3 is not enabled. This product will not work with the M1 Architecture.
|Thunderbolt™ 3 to HDMI™ 2.0 Dual Monitor 4K60Hz M/F|
|Product Series: Video Splitter|
|Product Code: CSV-1574|
|EAN code: 8719214470746|
|UPC code: 841615100941|
|• Compatible with Thunderbolt™ 3 over USB Type C source|
|• Compliant to HDMI™ 2.0 specification|
|• Supported output resolution for Single and Dual Screen setup: up to 4K@60Hz / 3840x2160p @ 60Hz|
|• Powered thru Thunderbolt™ 3, 15 Watt, no external power needed|
|• Plug & Play, no need for driver installation|
|• OS Support: Mac OS™ and Windows™ 10|
|• Mac™ OS and Windows™ 10|
|In the box:|
|• Thunderbolt™ 3 to HDMI™ 2.0 Dual Monitor 4K60Hz|
|• 1x Thunderbolt™ 3 Male|
|• 2x HDMI™ 2.0 Female|
|• Box size: 32 x 7 x 3.5 cm / 12.6 x 2.76 x 1.38 "|
|• Adapter size: (L) x (W) x (H) 113 x 60 x 16 mm / 4.45 x 2.36 x 0.63 "|
|• Cable Length: 270 mm / 10.63 "|
|• Adapter Weight: 99 gr / 3.49 oz|
|• LDP Bag Weight: 6 gr / 0.21 oz|
|• Foam Weight: 6 gr / 0.21 oz|
|• Box Weight: 42 gr / 1.48 oz|
|• Total Weight: 153 gr / 5.40 oz|
|• Meets ROHS, FCC, and CE EMI requirements|
|Important note for Apple M1-chip based computers:|
|Please note that for Mac Systems based on M1 Architecture the Multi Display function of Thunderbolt 3 is not enabled. This product will not work with the M1 Architecture.|
|- Please update your TV Firmware to the version which supports these resolutions/refresh rates !|
|- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!|
|Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.|
