Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

Enlarge

Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

CSV-6200 - The Club 3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming.

This enables the use of multiple monitors connected by MST hub configuration. The Club 3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation.

The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.

Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

Check out the downloads tab for more information

Specifications

Model Product Name:Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered Product Series: Video Splitters Itemcode: CSV-6200 EAN code: 8719214470906 UPC code: 841615101092




Features: • Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0, Display Id,and EDID V1.4 • Supports main link rates of 5.4 Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source • Input pixel dat a depth 6/8/10/12 bits and supports output pixel format RGB444 • Supports Advanced Wide Eye SerDes technology enables high Jitter performance • Dual Monitor setup resolution up to 2x 2560X1600p @ 60Hz • Supports AMD Eyefinity™ • Compatible with Microsoft Surface Pro and Intel NUC platforms • Works with AMD, Nvidia and Intel Graphics solutions

Note: Some Notebooks/Tablets/MiniPC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information.
OS Support: Microsoft Windows 10/ 8.1
Input: DisplayPort™ 1.2 Male Micro USB Female for Power
Output: 2x DisplayPort™ Female
Other info: • Hub size LxWxD: 61 x 49 x 12 mm • Hub Weight: 54 gr. • Cable Length USB: 1000 mm • Cable Weight USB: 22 gr. • Cable Length DP: 180 mm • Packaging size: 24 x 16 x 1.3cm / 9.45 x 6.3 x 0.51" • Poly Bag Weight: 9 gr.

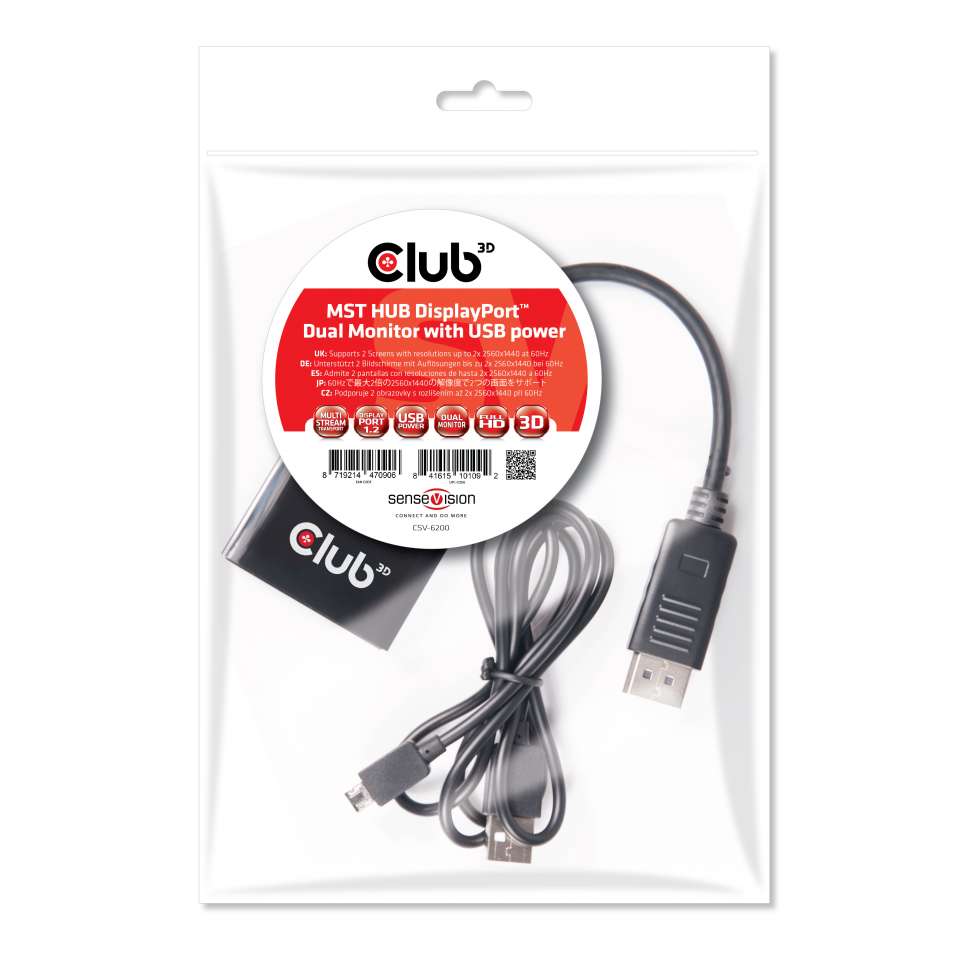

In the box: • Multi Stream Transport (MST) Hub DisplayPortâ¢ 1.2 Dual Monitor USB Powered • USB to Micro USB Cable for power • Quick install guide
