Mini DisplayPort 1.4 to HDMI 2.0b HDR
Mini DisplayPort 1.4 to HDMI 2.0b HDR
Mini DisplayPort 1.4 to HDMI 2.0b HDR
Enlarge

Mini DisplayPort 1.4 to HDMI 2.0b HDR

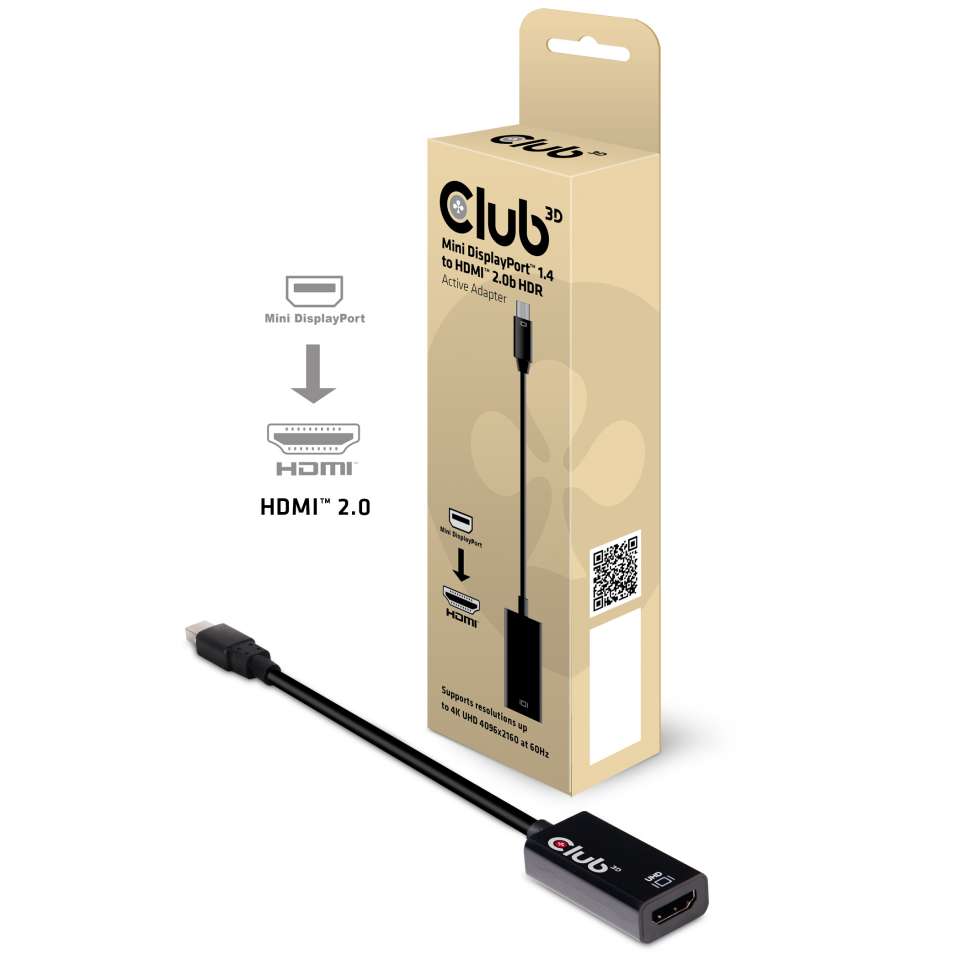

CAC-1180 - The Club3D is a Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.Supports up to 4K UHD Resolutions. The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.

Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b.

Related products
Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter
Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter

Specifications

Product Name: Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter
Product Series: Adapters
Itemcode: CAC-1180
EAN code: 8719214470869
UPC code: 841615101054
OS Support:
Windows 10, 8.1,
Apple OS X
In the box:
• Club 3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter
Input:
• Mini DisplayPort™ 1.4 male
Output:
• HDMI™ 2.0b female
Other info:
• Box size: 182 x 60 x 35mm.
• Cable: 168.6 x 20 x 11 mm.
• Weight: 30 gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China
Features:
• DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
• DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of ther 3D Formats
• Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
- HDCP 1.3 to HDCP 1.4 Repeater function
- HDCP 2.2 to HDCP 1.4 and 2.2 Repeater Fucntion
• HDMI™ transmitter
- Compliant to HDMI™ specifications version 2.0b
- 600MHz max TMDS character clock
- High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- CEC Support - snooping, tunneling
• Max Video resolution and color depth on HDMI™ output
- 4K 60Hz YCbCr 4:2:2, up to 12bpc
- 4K 60Hz YCbCr 4:2:0, up to 12bpc
- 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
