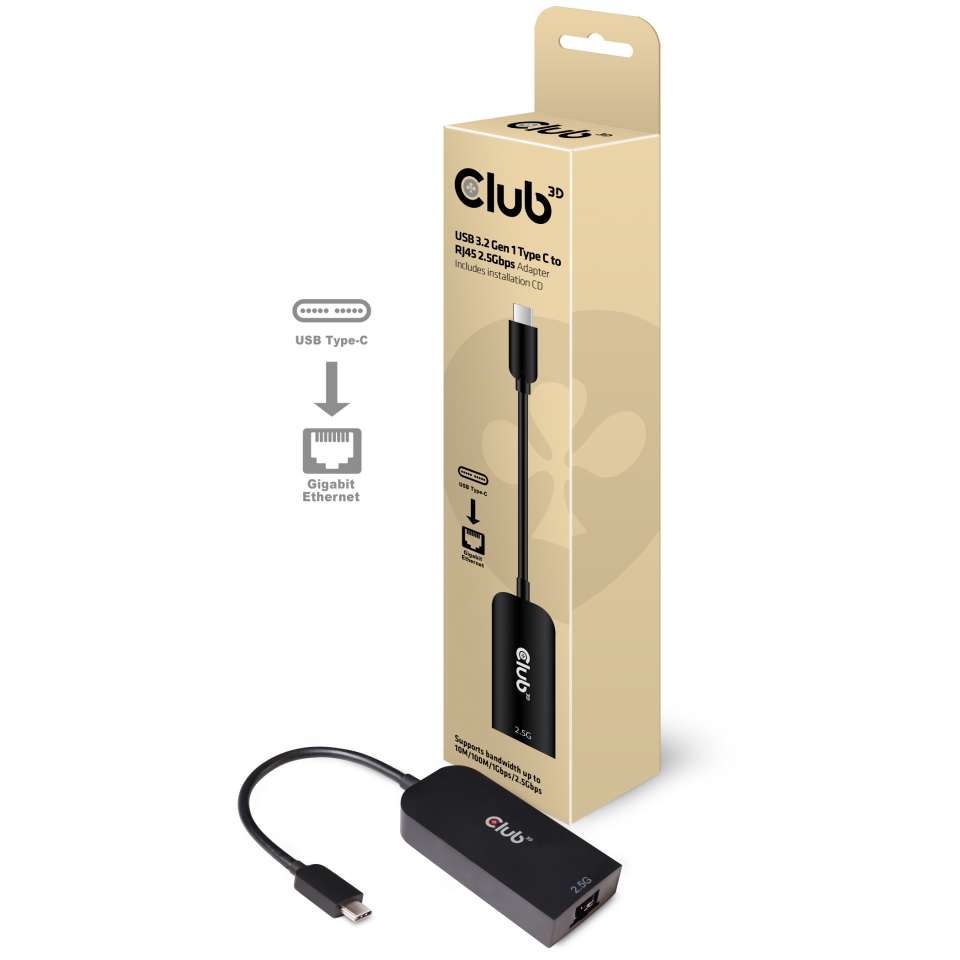

USB 3.2 Gen1 Type C to RJ45 2.5Gbps

CAC-1520 - The Club 3D USB 3.2 Gen1 Type C to RJ45 2.5Gbps Ethernet Adapter. It enables a Fast Ethernet network connection capability for desktops, notebooks or ultrabooks with a standard USB 3.2 Gen 1 Type C port.

This adapter is the best solution for latest devices without an onboard Ethernet port.

Its the perfect accessory for your travels in addition its USB powered so no need for external power adapter.

Related products

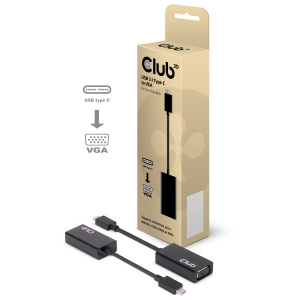

USB 3.1 Type C to VGA Active Adapter
USB 3.1 Type C to VGA Active Adapter
USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60 W Adapter
USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60 W Adapter

Specifications

Product Name:
USB 3.2 Gen1 Type C to RJ45 2.5Gbps
Includes installation CD
Product Series: Adapter
Itemcode: CAC-1520
EAN code: 8719214471248
UPC code: 841615101443
Features:
• Supports USB 3.2 Gen 1 Type C Port and 2.5Gbps RJ45 output
• Supports 10M/100M/1G/2.5G Bandwidth
• Supports twisted pair crossover detection and auto-correction
• USB Bus power (No external Power Needed)
• Supports USB3.2 Gen1, USB 2.0 and USB 1.1 ( When using lower USB versions the ethernet speed will be affected )
• Supports WOL (Wake-On-Lan) Full Duplex Flow (10M / 100M / 1G / 2.5G Rate) Auto Negotiation
• Supports Windows 8/Windows 10/ Mac OsX 10.6 to 10.13 Note : Driver Software installation is required
• Power Consumption : 4.75V ~ 5.25V
• Normal Operating power : < 80mA 10M < 130mA 100M <300mA 1G <460mA 2.5G
OS Support:
Windows and Mac OSX 10.6 to 10.14
Driver software installation is required
In the box:
• CLUB 3D USB 3.2 Gen1 Type C to RJ45 2.5Gb
• Includes installation CD
Input:
• RJ45 2.5Gbps
Output:
• USB 3.2 Gen1 Type C
Other info:
• Box size: 26 x 9.5 x 3.5 cm.
• Box Weight: 49 gr.
• Product Weight: 34 gr.
• Cable + Bag : 37 gr.
• Product + Box + Bag Weight: 86 gr.
• Product height: 1.5 cm.
• Product width: 3.5 cm.
• Product Length: 24 cm.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
