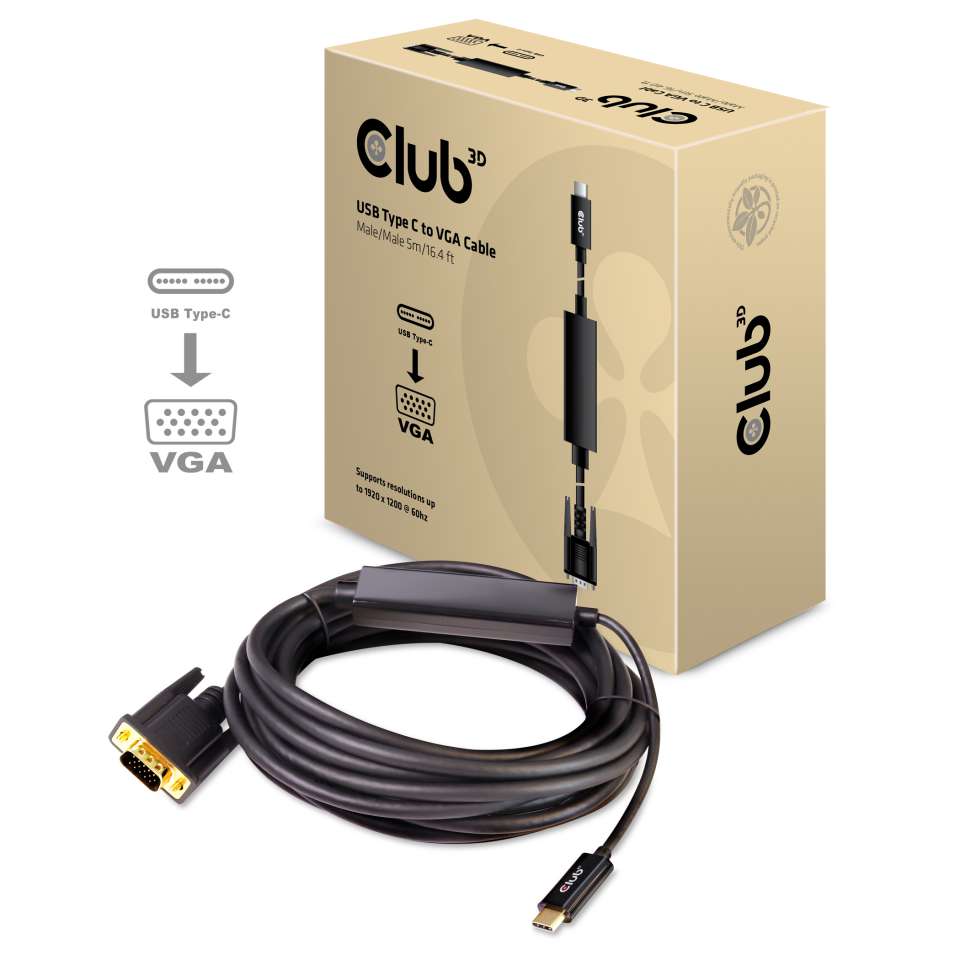

USB Type C to VGA Active Cable M/M 5m/16.40ft

CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.

It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.

This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.

Related products

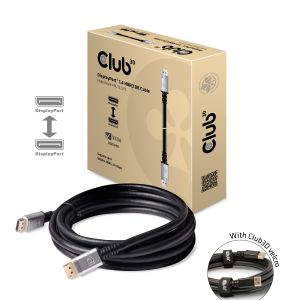

DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft
DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft
HDMI 1.4 to DVI Cable M/M 2m/ 6.56ft Bidirectional
HDMI 1.4 to DVI Cable M/M 2m/ 6.56ft Bidirectional

Specifications

Product Name:
USB Type C to VGA Cable Male/Male 5m/16.40ft
Product Series: Cables
Itemcode: CAC-1512
EAN code: 8719214471231
UPC code: 841615101436
Features:
• Supports DP1.1 Specifications
• Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
• This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
• Supports Analog RGB Current source outputs
• Supports 3.3V VSYNC and HSYNC outputs
• Pixel Clock up to 240Mhz
• Triple 8 Bit Digital to Analog Converter (DAC)
• Supports 6, 8 Bits per color
• Supports RGB formats
OS Support: All
In the box:
• Club 3D USB Type C to VGA Cable Male/Male 5m/16.40ft
Input:
• USB Type C Male
Output:
• VGA Male
Other info:
• Box size: 14.5 x 14.5 x 6 cm.
• WEIGHT PRODUCT(gr)245
• WEIGHT BOX(gr): 64
• WEIGHT PRODUCT WITH BOX (gr): 309
• Cable length (m) 5
• Cable length (ft) 16.40
• Cable height (cm) 1.4
• Cable width (cm) 3.5
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
