USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor
USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor
USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor
Enlarge

USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor

CSV-1550 - The Club-3D USB Type C 3.2 Gen 1 Multi Stream Transport(MST)Hub DisplayPort™ 1.4 Triple Monitor is an integrated solution that allow you to enjoy displaying content onto three different monitors / displays simultaneously under MST mode. The three screens can accommodate displaying different contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station.

It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards that supports all DP Alt mode video signal output, for gaming and commercial applications. The MST Hub is directly powered from the host thru the USB Type C 3.2 Gen 1 connector.

Related products
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor to HDMI
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor to HDMI
SenseVision MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor
SenseVision MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor

Specifications

Product Name: USB Type C 3.2 Gen 1 Multi Stream Transport(MST)Hub DisplayPort™ 1.4 Triple Monitor
Product Series: Video Splitter
Itemcode: CSV-1550
EAN code: 8719214471422
UPC code: 841615101603
Features:
• Compliant with DisplayPort™1.4 specification
• Compliant with HDCP 2.2 specification
• Supports dual 4K60Hz@24 bpp without compression
• DSC 1.2 transport and up to 4-slice decompression
• High Dynamic Range (HDR) video
• SST or up to 3 stream MST
OS Support:
Microsoft Windows® 10
Mac OS® (only for DP1.2, no support for MST)
In the box:

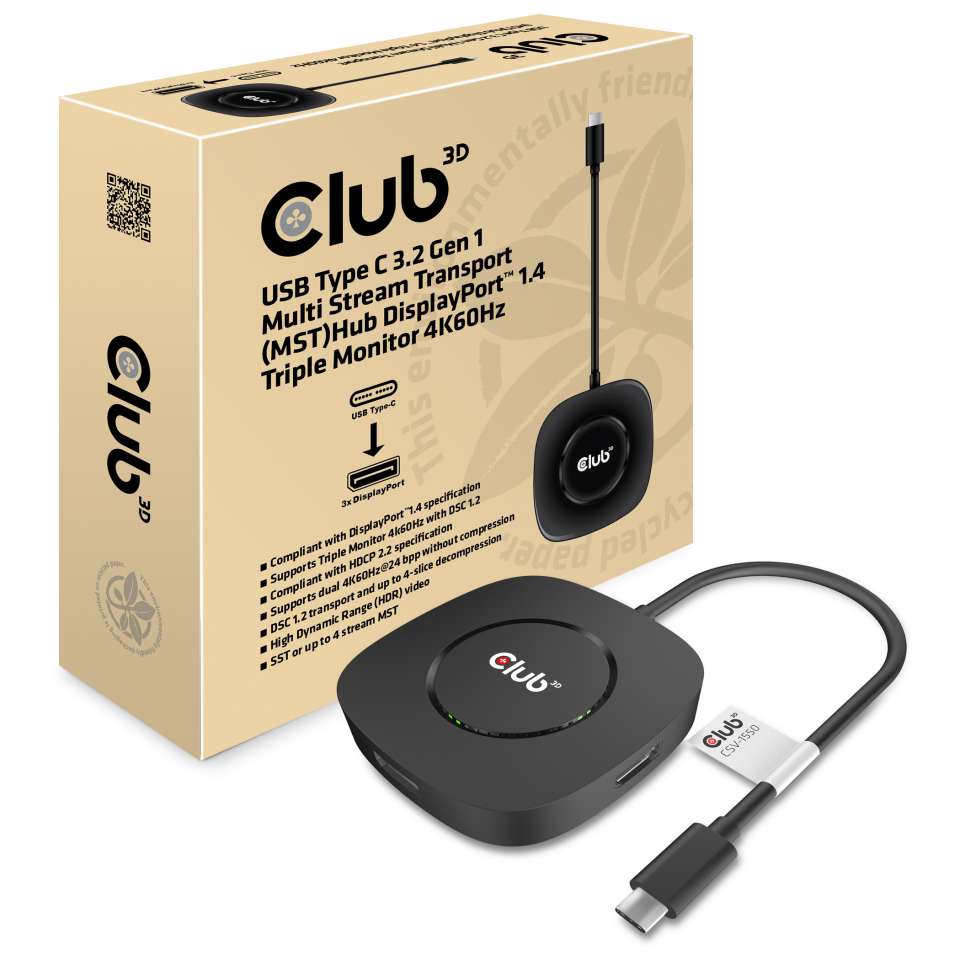

• CSV-1550, USB Type C 3.2 Gen 1 Multi Stream Transport(MST)Hub DisplayPort™ 1.4 Triple Monitor
Available Interfaces:
• 1x USB Type C 3.2 Gen 1 for connecting to Host
• 3x DisplayPort™ Female for connecting to monitors
Other info:
• Box size: 14.5 x 14.5 x 4.5 cm
• Box size: 5.7 x 5.7 x 1.77 inch
• Device size: 7.9 x 7.9 x 1.7 cm
• Device size: 3.11 x 3.11 x 0.67 inch
• Cable to Host : 13 cm / 5.12 inch
• Device Weight: 58 gr / 2.04 oz
• LDPE Bag Weight: 5gr/ .17oz
• Box Weight: 24 gr / .85oz
• Total Weight: 87 gr / 3.06 oz
• Meets ROHS, FCC, and CE EMI requirements

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
