USB Type C MST Hub to Dual HDMI 4K60Hz M/F
USB Type C MST Hub to Dual HDMI 4K60Hz M/F
USB Type C MST Hub to Dual HDMI 4K60Hz M/F
USB Type C MST Hub to Dual HDMI 4K60Hz M/F
Enlarge

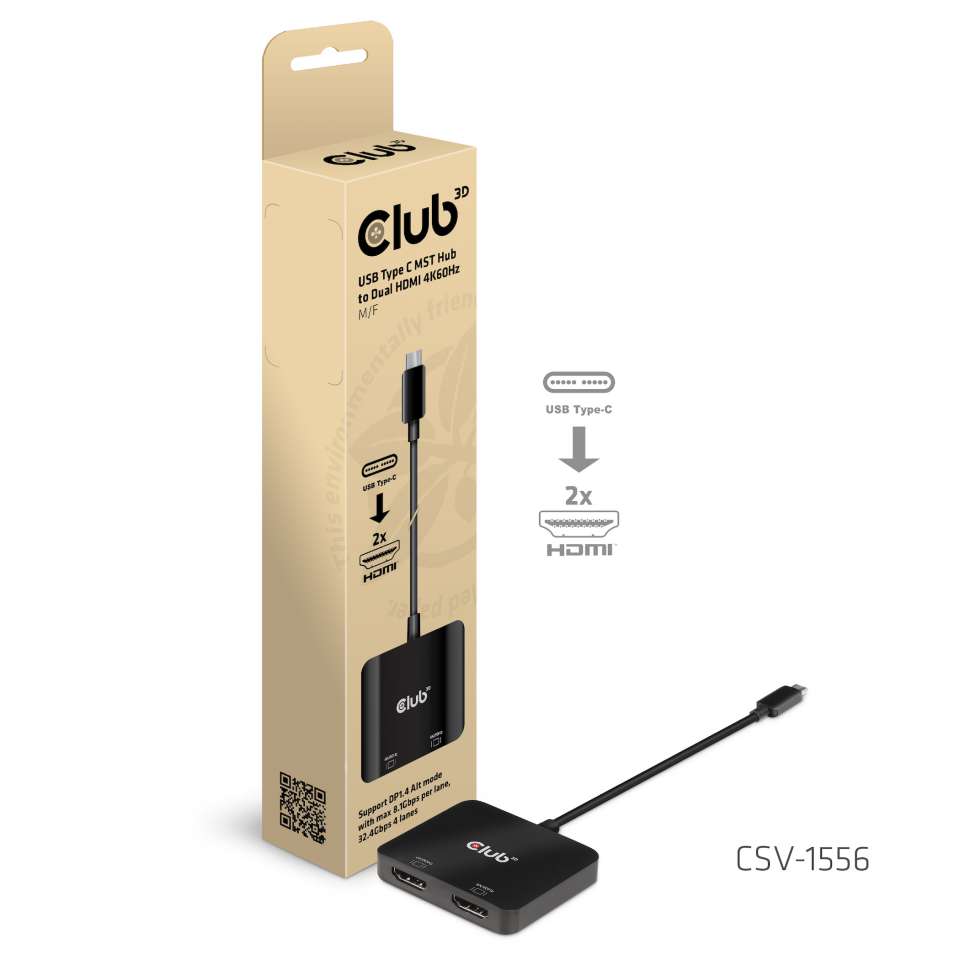

USB Type C MST Hub to Dual HDMI 4K60Hz M/F

The Club 3D CSV-1556 is a Type-C MST Hub that works from any DP1.4 Alternate mode device to two HDMI™ 4K60Hz displays. It allows to extend a type-C port of the host to 2 HDMI displays with ultra high definition max 4K/60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. It can work on all DP Alt mode supported Type-C/Thunderbolt PC.

Related products
Sensevision Thunderbolt™ 3 to Dual HDMI™ 2.0
Sensevision Thunderbolt™ 3 to Dual HDMI™ 2.0
SenseVision MST Hub USB 3.1 Gen1 Type C to HDMI™ 1.4 Dual Monitor
SenseVision MST Hub USB 3.1 Gen1 Type C to HDMI™ 1.4 Dual Monitor
Premium High Speed HDMI™ 4K60Hz UHD Cable M/M 1 m / 3.28 ft 30AWG
Premium High Speed HDMI™ 4K60Hz UHD Cable M/M 1 m / 3.28 ft 30AWG

Specifications

Product Name:
USB Type C MST Hub to Dual HDMI™ 4K60Hz M/F
Product Series: Video Splitter
Product Code: CSV-1556
EAN code: 8719214471682
UPC code: 841615101894
Features:
• Support Type-C input, 2 HDMI™ 4K60Hz outputs
• Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
•Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
Note: to achieve dual max 4K/60Hz, the host should support DP1.4 Alt mode, when working on DP1.2 host, dual max 4K/30Hz due to bandwidth limitation.
• Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
• Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
• Support 8/10/12 bit color depth output
• Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Support HDCP2.2&1.4
OS Support:
• All
In the box:
• USB Type C MST Hub to Dual HDMI™ 4K 60Hz M/F
Available Interfaces
Input:
• USB Type C Male
Output:
• 2x HDMI™ 4K60Hz Female
Other info:
• Box size: 6 x 24 x 3.5 cm / 2.36 x 9.45 x 1.38 inch
• Device size: 21 x 5.5 x 0.95 cm / 8.27 x 2.17 x 0.37 inch
• Output Cable length approx.: 13.5 cm / 5.32 inch
• Connector dimensions:
- HDMI™ Unit: 5.5 x 5.0 x 0.95 cm / 2.17 x 1.97 x 0.37 inch
- USB-C: 2.2 x 1.23 x 0.63 cm / 0.85 x 0.48 x 0.25 inch
• Device Weight: 42 gr / 1.48 oz
• Box Weight: 28 gr / 0.99 oz
• LDPE Bag Weight: 3 gr / 0.11 oz
• Total Weight: 73 gr / 2.575 oz
• Meets ROHS, FCC, and CE EMI requirements
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
