USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter M/F
USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter M/F
USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter M/F
Enlarge

USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter M/F

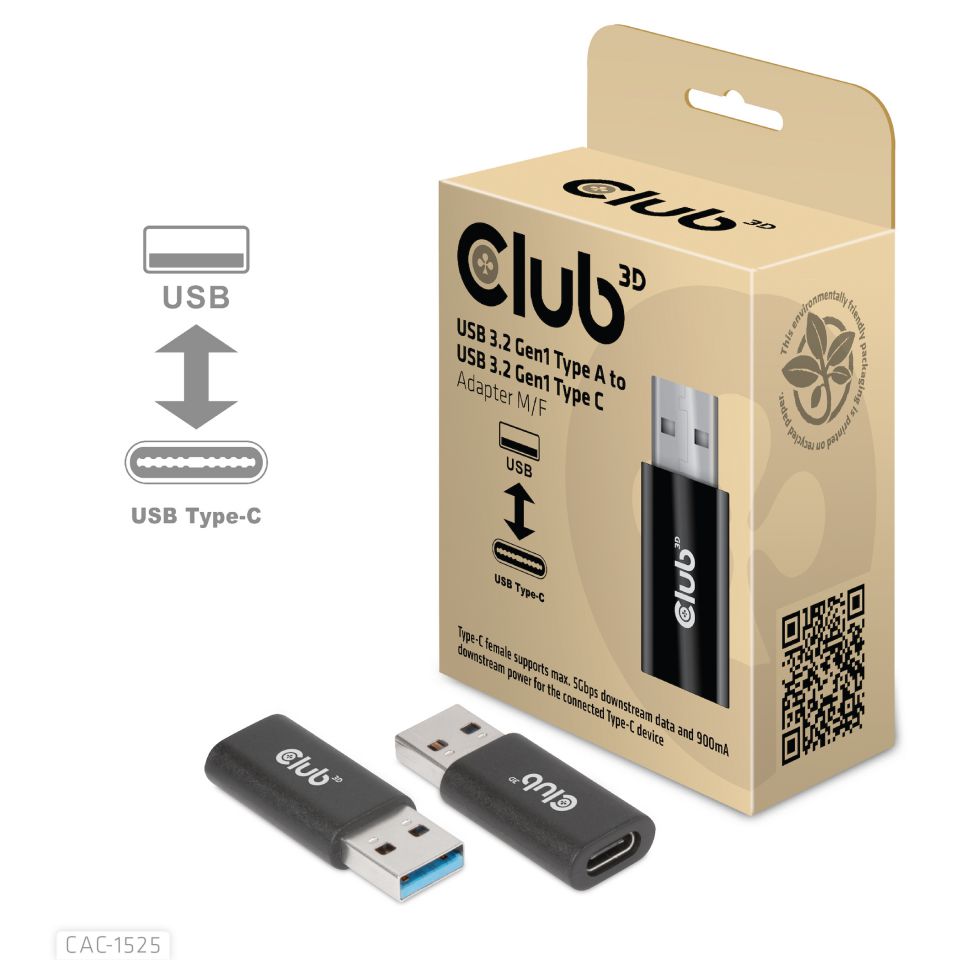

CAC-1525 The Club 3D USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter which allows you to connect your host PC with USB-A port to devices (such as USB disk, mobile phone) with Type-C port for downstream data and power. Besides, you can also connect a Type-C to USB hub to your USB-A host PC through this product for downstream data and power transmission.

The adapter is backwards compatible and supports USB 2.0 as well. The USB 3.0 SuperSpeed specification ensures a bitrate of 5Gbps for fast transfer of large files.

Related products
USB4 Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M-M 0.8m - 2.62ft
USB4 Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M-M 0.8m - 2.62ft
USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz  M/M 5m/16.4ft
USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft
USB 3.1 Type-C Cable 10Gbps 4K60Hz PD 100W M/M 0.8m/2.62ft
USB 3.1 Type-C Cable 10Gbps 4K60Hz PD 100W M/M 0.8m/2.62ft

Specifications

Product Name:
USB 3.2 Gen1 Type A to USB 3.2 Gen1 Type C Adapter M/F
Product Series: Adapter
Product Code: CAC-1525
EAN code: 8719214471897
UPC code: 841615102105
Features:
• Support USB 3.0 upstream (connect USB-A host PC), Type-C downstream (connect Type-C devices for data and power transmission)
• Type-C female supports reversible plug
• No driver is required, plug and play
• Compatible with USB 3.2 Gen1 specification and lower versions
• Type-C female supports max. 5Gbps downstream data and 900mA downstream power for the connected Type-C device
• Supports Windows, Apple OS X(10.12.6 and lower versions) and Chrome OS
OS Support:
• All
In the box:
• CAC-1525 adapter
Available Interfaces
Input:
• USB Type-A Male
Output:
• USB Type-C Female
Other info:
• Box size: 6 x 7 x 3.5 cm/2.36 x 2.76 x 1.38"
• Adapter size: 4 x 1.58 x 0.78cm / 1.575 x 0.62 x 0.3"
• Box weight: 13gr / 0.46 oz
• Adapter weight: 6 gr / 0.21oz
• Total Weight: 19 gr / 0.67 oz
• Meets ROHS, FCC, and CE EMI requirements
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
