USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub
USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub
USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub
USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub
Enlarge

USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub

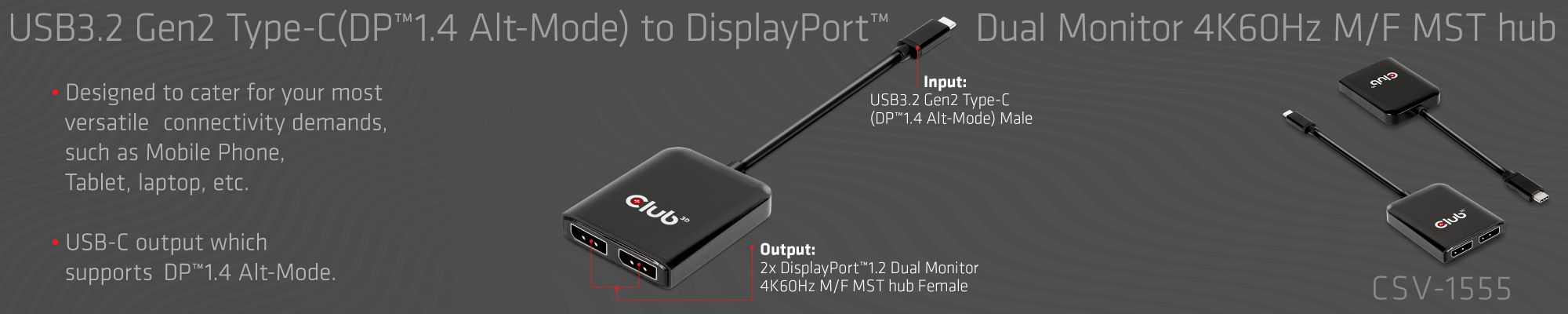

The CSV-1555 is a USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™Dual Monitor 4K60Hz M/F MST hub. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB-C output which supports DP™ Alt-Mode.

Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB3.2 Gen2 port available you can now drive one- or two- Displayport™ screen simultaneously at 4K60Hz or One display at 4K120Hz. All it needs is a free USB3.2 Gen2 port with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

Related products
SenseVision MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor
SenseVision MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor
USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor
USB Type C 3.2 Gen 1 Multi Stream Transport (MST)Hub DisplayPort1.4 Triple Monitor
USB Type C MST Hub to Dual HDMI 4K60Hz M/F
USB Type C MST Hub to Dual HDMI 4K60Hz M/F

Specifications

Product Name:
USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™ Dual Monitor 4K60Hz M/F MST hub
Product Series: Video Splitter
Product Code: CSV-1555
EAN code: 8719214471934
UPC code: 841615102150
Features:
• Support dual display 3840 x 2160 @ 60HZ
• Support for BT.2020 color space
• Upstream port:
  - USB3.2 Gen2 Type-C port with DP™ Alt-Mode support
• Downstream port:
Windows(MST model)
  - Support Dual Displayport™ (4096 x [email protected])
  - Support Single Displayport™ (3840 x [email protected])
or
MAC OS(SST model)*
  - Support Single Displayport™ (3840 x [email protected])
  - Support Dual Displayport™ (3840 x [email protected])
* This resolution specification might be limited by the device itself
Disclaimer: * Specification is subject to change without notice.
OS Support:
• Windows®10, Mac OS®
In the box:

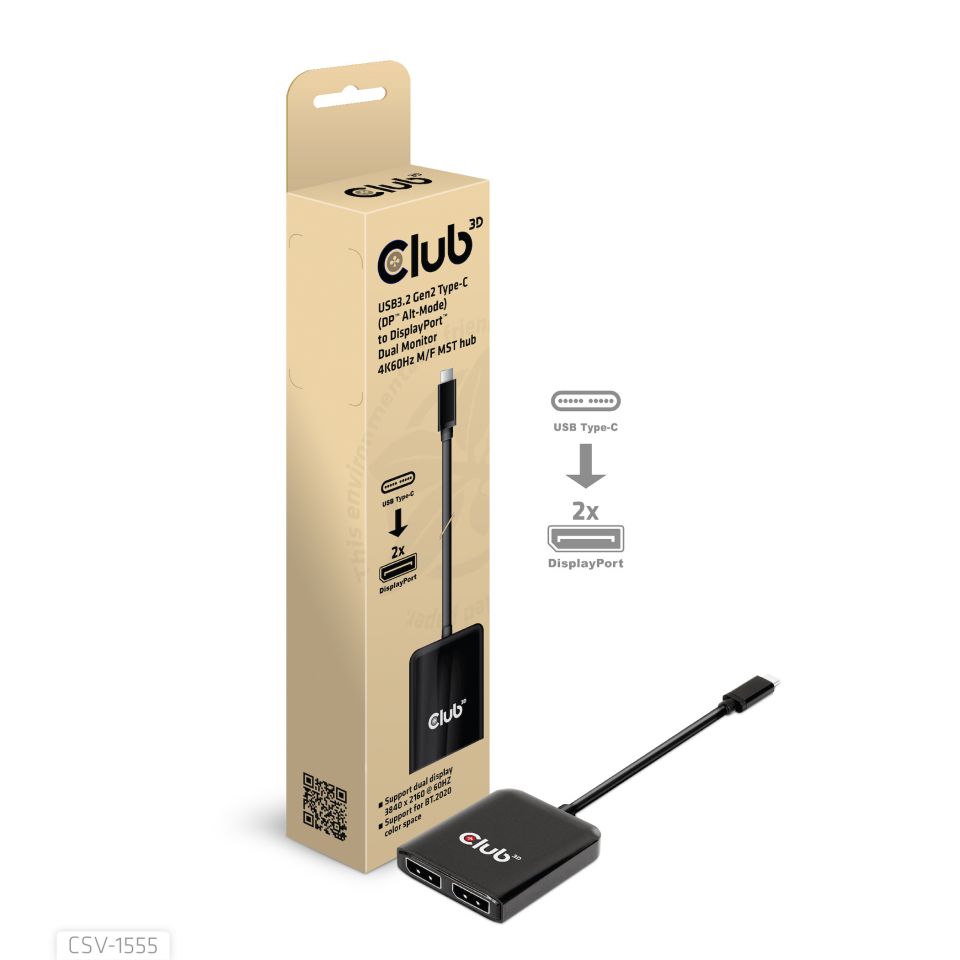

• CSV-1555, USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™1.2 Dual Monitor 4K60Hz M/F MST hub
Available Interfaces
Input:
• USB3.2 Gen 1 Type-C Male
Output:
• 2x DisplayPort™ Female
Other info:
• Box size: 6x24x3.5cm / 2.36 x 9.45 x 1.38"
• Device size: 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44"
• Total length Device: 20 cm/ 7.87"
• Box Weight: 28 gr / 0.99 oz
• Device Weight: 50 gr / 1.76 oz
• LDPE Bag Weight: 5 gr / 0.17 oz
• Total Weight: 83 gr / 2.92 oz
• Meets ROHS, FCC, and CE EMI requirements

Technology

DISPLAYPORT



Read more

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W

Read more

USB C over ALT Mode



Read more

MULTI STREAM TRANSPORT
