MST hub DisplayPort 1.4 to DisplayPort + HDMI 4K60Hz M/F

Enlarge

MST hub DisplayPort 1.4 to DisplayPort + HDMI 4K60Hz M/F

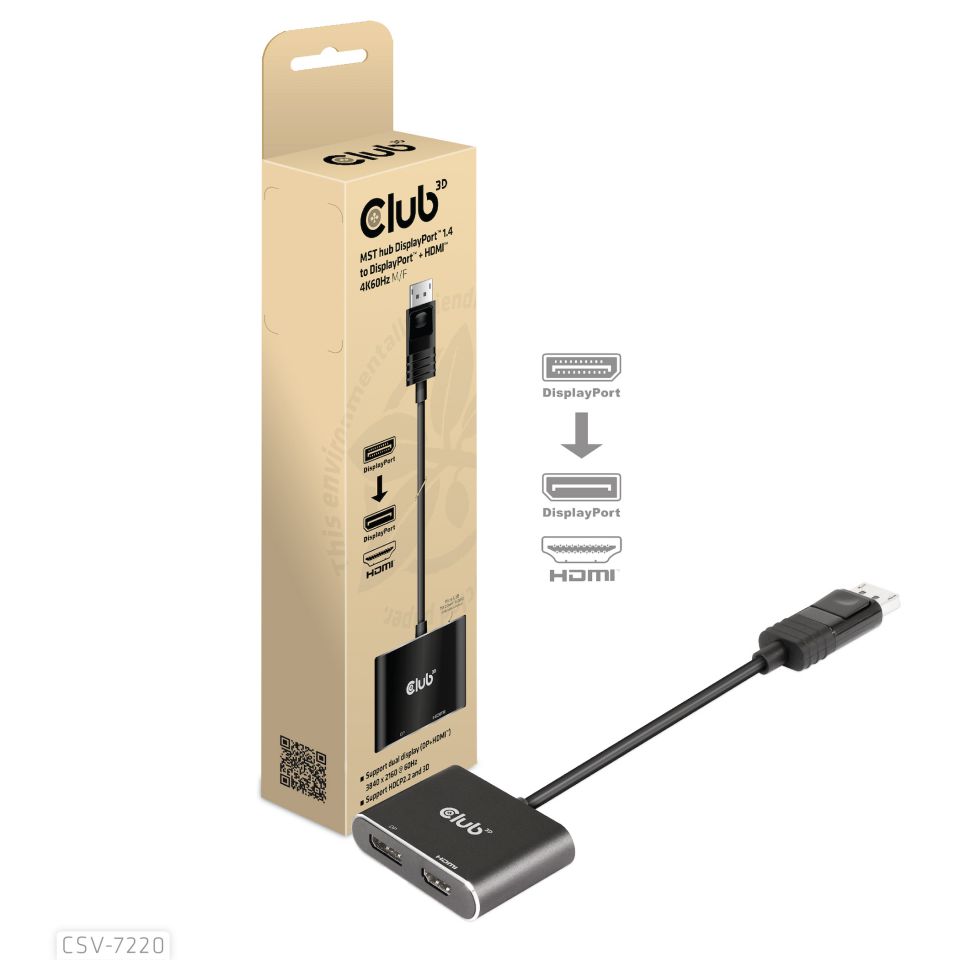

The CSV-7220 is a MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F. This DisplayPort™ 1.4 MST hub is designed to cater for your most versatile connectivity demands, such as tablets, laptops, etc. with a free DP™ (DisplayPort) port.

Give your device more displays. PCs and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single DP™1.4 port available you can now drive one-Displayport™ screen simultaneously with an HDMI™ screen at 4K60Hz or One DP™ display at 8K30Hz in MST mode Windows. All it needs is a free DP™ 1.4 port on your Laptop or PC to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports DP1.4 specifications and DSC1.2 Compression, resolutions can be limited if the source device is lower. The CSV-7220 is externally powered by a USB Type-A to Micro USB cable which comes with the product.

Specifications

Product Name:
MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F
Product Series: Video Splitter
Product Code: CSV-7220
EAN code: 8719214471972
UPC code: 841615102204

Features:
• Support dual display(DP+HDMI™) 3840 x 2160 @ 60Hz
• Support HDCP2.2 and 3D
• USB Powered, cable included
• Support SST mode at MAC OS®
• Support MST mode at Windows®

OS Support:
• Windows®10, Mac OS®

In the box:
• CSV-7220, MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F
• USB Type-A to Micro USB Power Cable 1m /3.28 ft

Available Interfaces
Input:
• Displayport™ Male
• Micro USB Female( for External Power)
Output:
• 1x DisplayPort™ Female
• 1x HDMI™ Female

Other info:
• Box size: 7.3 x 3.5 x 25cm / 2.87 x 1.38 x 9.84"
• Device size: 6.2 x 4.4 x 1.52 cm / 2.44 x 1.73 x 0.6"
• Total length Device: 20 cm/ 7.87"
• USB Power cable: 1m / 3.28 ft
• Box Weight: 34 gr / 1.2 oz
• Device Weight: 48 gr / 1.69 oz
• USB Power cable Weight: 20 gr / 0.7 oz
• LDPE Bag Weight: 5 gr / 0.17 oz
• Total Weight: 107 gr / 3.77 oz
• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
