USB Gen1 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

Related products
Ultra Smart Docking Station
Ultra Smart Docking Station
USB Gen2 Type-C Triple Display DP Alt mode   Displaylink Dynamic PD Charging Dock with 120 Watt PS
USB Gen2 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS

Specifications

Product Name:
USB Gen1 Type-C Triple Display DP Alt mode + Displaylink™ Dynamic PD Charging Dock with 120 Watt PS
Product Series: Docking
Product Code: CSV-1566
EAN code: 719214472092
UPC code: 841615102310

Features:
• Support DP1.2 Alt mode and Displaylink™/ USB mode
• Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports
• Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system
• HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz
• HDMI™ 2 (USB mode) supports max 4K/60Hz
• DP™(USB mode) support max 4K/60Hz
• Support DP++
• Support smart charging with max 5V/2.4A
• Support Gigabit Ethernet to get access to super fast network
• Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously
• Support audio in and out
• Support max 120W DC power in and bypass 80W to host
• Short-circuit, over-current, over-voltage protection

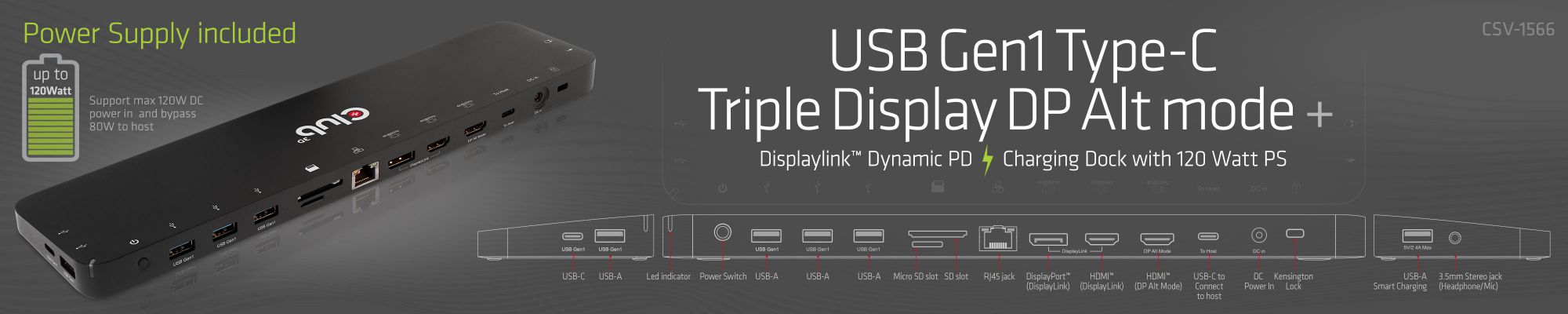

Available Interfaces
Input:
• 1x USB Gen2 Type-C Female for connecting to Host
Output:
• 1x USB Gen1 Type-C Female (data)
• 4x USB Gen1 Type-A Female
• 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max.
• 1x HDMI™ Female (DP Alt Mode)
• 1x HDMI™ Female (USB Mode)DisplayLink™
• 1x DP™ Female (USB Mode)DisplayLink™
• 1x SD Female
• 1x TF Female
• 1x RJ45
• 1x 3.5 mm Phone Socket (Microphone and headphone)
• 1x DC Power 20.5V

Note:
1) This dock will not work without external power supply
2) When connected to DC power directly, without connecting to the host, this dock has normal function only for the (RED)USB smart charging port, the other ports do NOT function
3) When connected to a USB-A host via a USB-A to USB-C Adapter, HDMI™ port 1 (DP™ Alt mode) does NOT function, other ports can be functional as if they where connected to the USB Type-C host
4) Please install the latest DisplayLink™ USB Graphics Driver on your computer before using this product. You can download the corresponding driver from our website WWW.CLUB-3D.COM
5) The light turns purple (blue+red) when turned on, turns blue when turned off (standby mode). This product is defaulted to be turned on once all connections are established;
6) Audio Graphics card can be switched among PC, DP™ Alt mode port connected display and the Dock. If Audio Graphics card is switched to the dock and a headset is connected, there's NO audio from the display.

OS Support:
• Microsoft Windows® 10
• Mac OSX® Supports SST mode Only

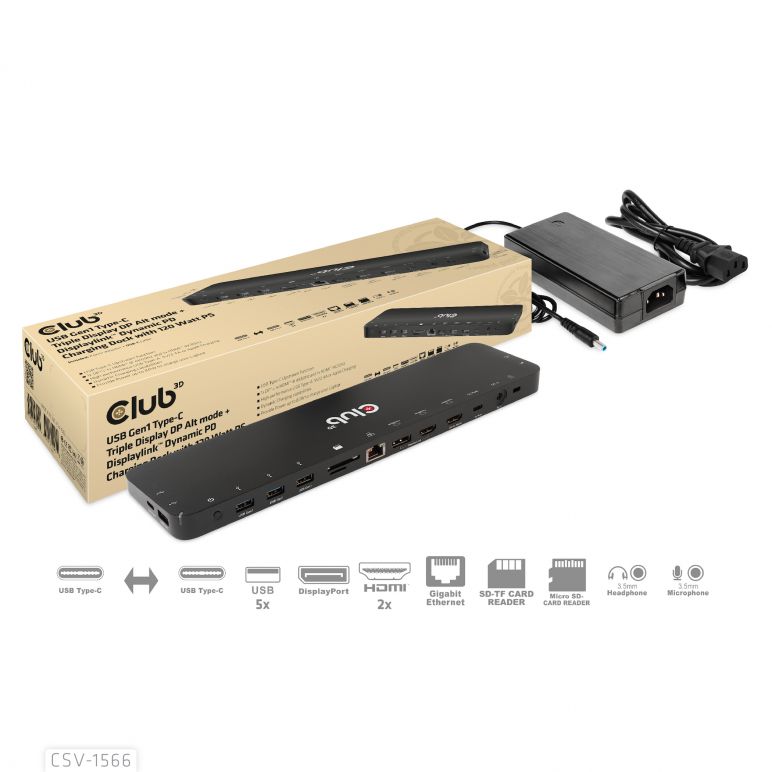

In the box:
• CSV-1566 Docking Station
• PowerSupply Input: 100-110/240VAC, Output: up to 120W, Various Power plugs depending on Country (Specify on order)
• USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft
• Quick Install Guide

Other info:
• Box size: 36 x 11.5 x 6.5 cm / 14.17 x 4.53 x 2.56"
• Device size: 30.4 x 7.7 x 1.8 cm / 11.97 x 3.03 x 0.7"
• USB host Cable length approx.: 1m / 3.28 ft
• Device Weight: 358 gr / 12.63oz
• USB Cable Weight: 44 gr / 1.55 oz
• Powersupply weight: depending on power plug ≈ 580 gr / 20.46 oz
• Box Weight: 168gr. / 5.92 oz.
• LDPE Bag Weight: 5 gr / 0.18 oz
• Total Weight: ≈ 726gr / 25.06 oz
• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
