USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

Enlarge

USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

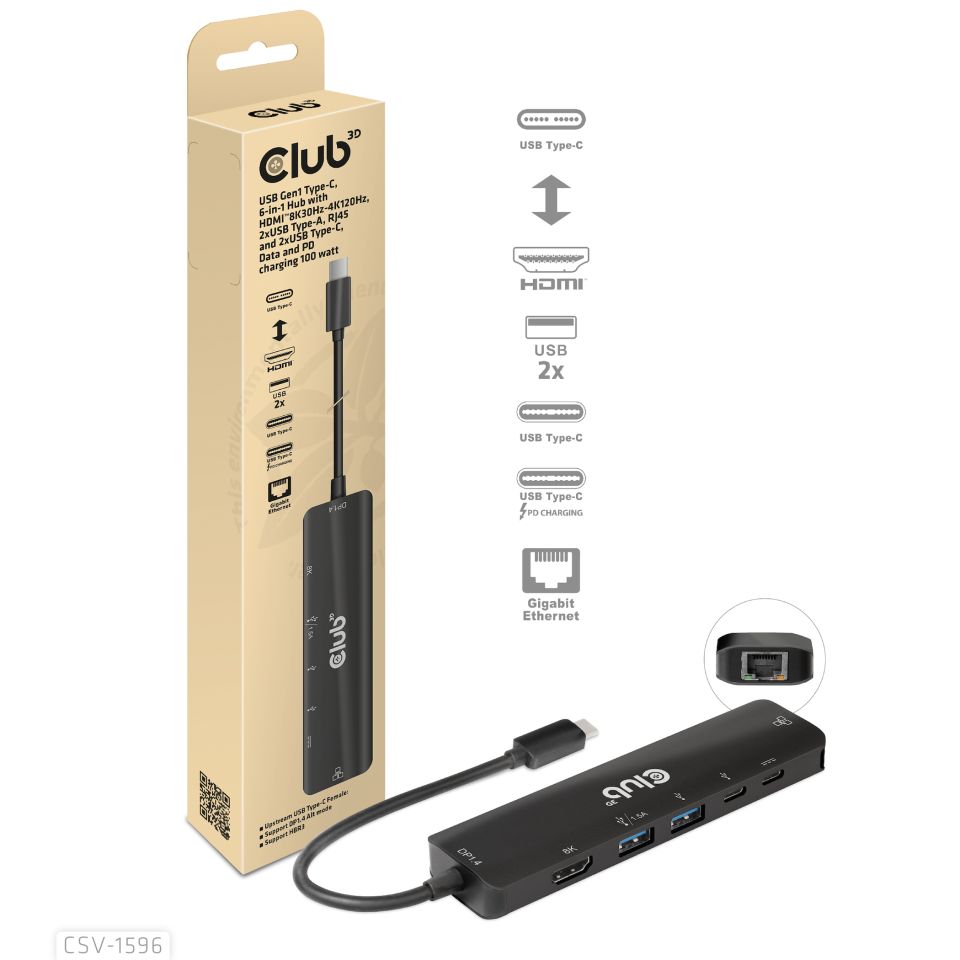

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.

CSV-1596 QUICK INSTALLATION GUIDE

Specifications

Product Name:
USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt
Product Series: Docking Station
Product Code: CSV-1596
EAN code: 8719214472344
UPC code: 841615102594

Features:
• Upstream USB Type-C Female:
- Support DP1.4 Alt mode
- Support HBR3
- Support DSC1.1/1.2a or uncompressed video
- Support DSC 1.1/1.2a decoder
- Support 8/10/12 bit color depth
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support positive and negative connection
• Downstream HDMI™ Female:
- Support HDMI™ max 7680*4320@30HZ
- Support HDMI™ max 4196(3840)x2160@120Hz
- Support Dynamic HDR10+
- Support HDCP1.4&HDCP2.3 specification
- Support HPD
- Support DSC 1.1/1.2a decoder
- Support 8/10/12 bit color depth output
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support 1 to 32 channels LPCM 192kHz audio output
- Supports HBR audio up to 1536kHz
Note: The output resolution, refresh rate, video pixel format depends on the performance of the computer and the monitor
• 2x USB Type-A Female
1- USB Type-A port (next to HDMIHDMI™ port) supports max 7.5W([email protected]) downstream charging
2- USB Type-A, second port support max 4.5W(5V@900mA) downstream charging
Max 5Gbps bandwidth per USB Type-A port
• RJ45 (Gigabit Ethernet)
-Support 10Mbps/100Mbps/1000Mbps
• USB Type-C Data Female(Close to USB-A port)
- Max 5Gbps data transmission
- Support 4.5W(5V@900mA) downstream charging
- Support short-circuit, over-current, over-voltage protection
• USB Type-C Female (for PD 3.0 Charging)
- Support PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host
- Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter

OS Support:
• Windows and OSX

In the box:
• CSV-1596 USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

Available Interfaces
Input:
• 1x USB Type-C Male
(Host connection)
Output:
• 1x HDMI™ Female
for connecting to Monitor
• 1x USB Type-A Female
Data
• 1x USB Type-A Female
Charging/Data
• 1x USB Type-C Female
Data only
• 1x USB Type-C Female
PD Charging only
• 1x RJ45 Jack

Other info:
• Box size 7 x 32 x 3.5cm / 2.76 x 12.6 x 1.38"
• Device size: 12.6 x 3.4 x 1.4 cm / 4.96 x 1.33 x 0.55"
• Total Length: approx. 30 cm /11.81"
• Device Weight: 89 gr / 3.14 oz
• LDPE Bag Weight: 5gr / 0.17 oz
• Box Weight: 42 gr / 1.48 oz
• Total Weight: 136 gr / 4.79 oz
• Meets ROHS, FCC, and CE EMI requirements

Note: - Please update your TV Firmware to the version which supports these resolutions/refresh rates ! - Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
