USB4 Gen3x2 Type-C, 6-in-1 Hub with HDMI 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt

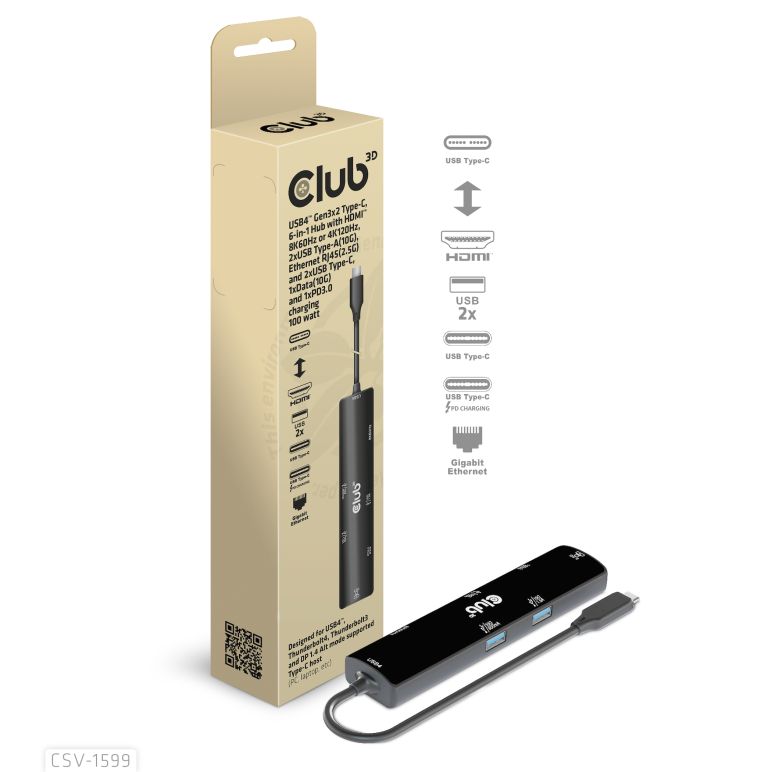

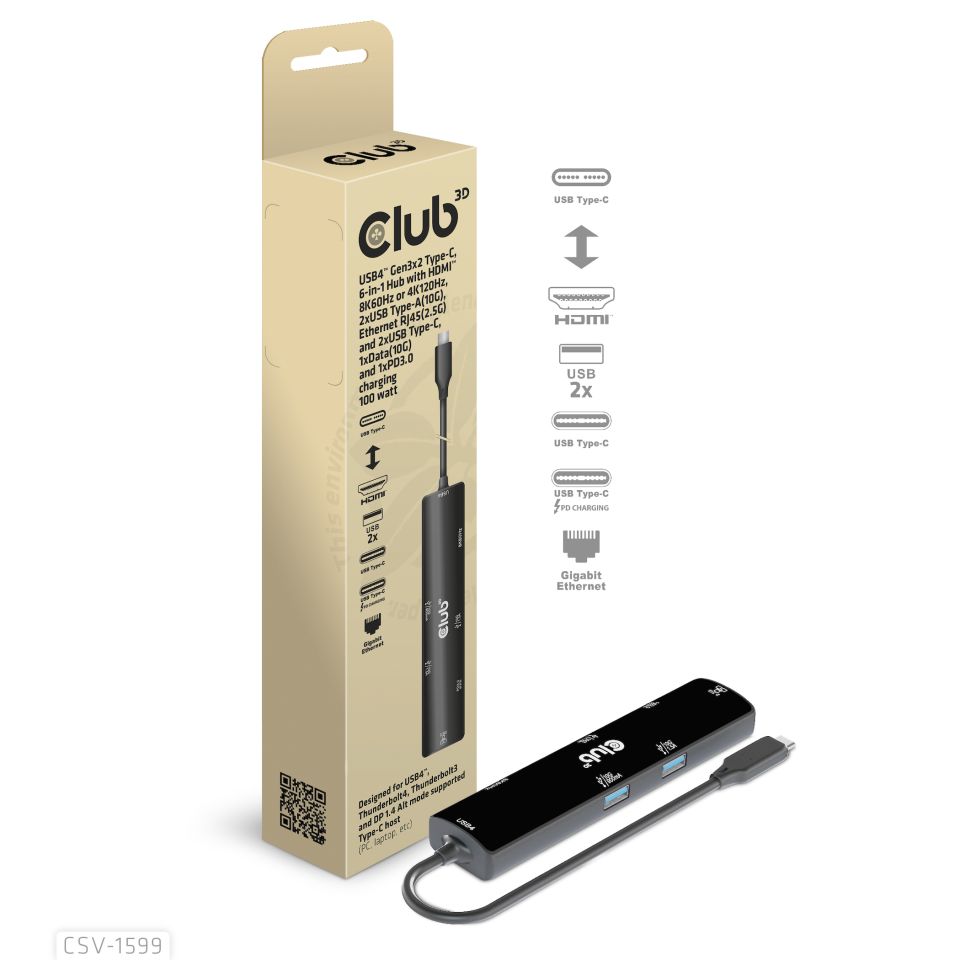

The Club 3D CSV-1599 is a USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt, this adapter is offering an integrated solution for video, data, power and Ethernet. It has a HDMI™(8K60Hz) for video transmission, 3 USB data ports (2 USB-A 10G, 1 Type-C 10G)for data transmission, a 2.5Gbps Ethernet port for surfing on line. Besides, this adapter is equipped with Type-C PD3.0 Charging port with max 100W power supply. It can work on USB4™, Thunderbolt4, Thunderbolt3 and DP Alt mode (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.

Specifications

Product Name:
USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt
Product Series: Docking Station
Product Code: CSV-1599
EAN code: 8719214472566
UPC code: 841615102792

Features:
• Designed for USB4™, Thunderbolt4, Thunderbolt3 and DP 1.4 Alt mode supported Type-C host (PC, laptop, etc).
• Downwards compatible - Specifications are limited to Source capability
• Support USB4™ Specification with max 40Gbps bandwidth
• Compliant USB4™ Gen3x2(40Gbps),USB4™ Gen2x2(20Gbps) and backwards compatible USB3.2&USB2.0
• Compliant DP1.4 alt mode with max 32.4Gbps
• HDMI™ supports max 8k60Hz or 4K120Hz video output and High Dynamic Range(HDR10+)
• USB Type-C data port and 2 USB Type-A support USB 3.2 Gen2 SuperSpeed 10Gbps
• One USB Type-A and USB Type-C data port support 5V/1.5A downstream charging
• Fast Ethernet RJ45 supports 10M/100M/1000M/2.5G bandwidth
• One USB Type-C PD Charging support PD3.0 with max 100W PD Charging,15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host

OS Support:
• Works with Windows, Apple OS, Chrome OS

In the box:
• CSV-1599 USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt

Other info:
• Box size 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38 "
• Device size: 14.7 x 3.1 x 1.8 cm / 5.78 x 1.22 x 0.71"
• Total Length: approx. 40 cm / 15.75"
• Device Weight: 92 gr / 3.24 oz
• Inner Box Weight: 16 gr / 0.56 oz
• Box Weight: 28 gr / 0.99 oz
• Total Weight: 136 gr / 4.79 oz
• Meets ROHS, FCC, and CE EMI requirements

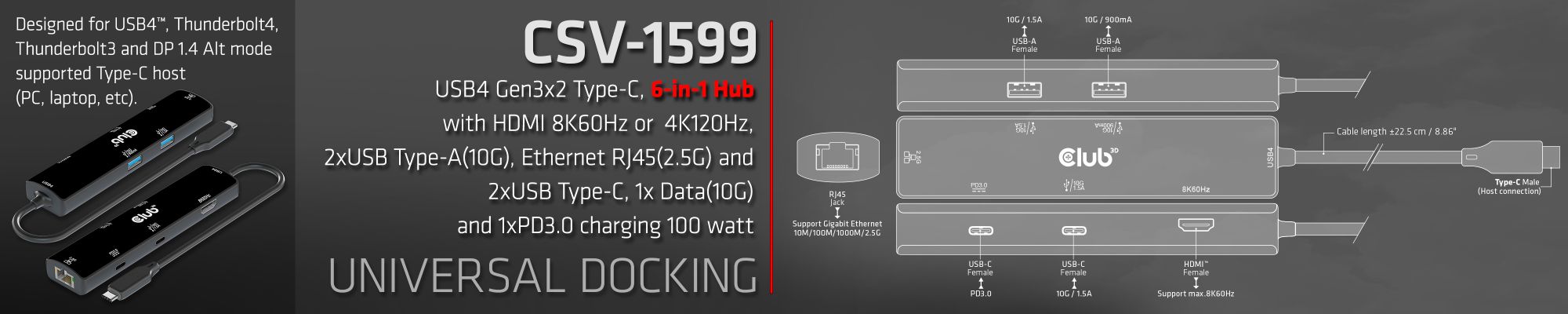

Available Interfaces
Input:
• 1x USB4™ Type-C Male (Host connection)
Output:
• 1x HDMI™ Female:
- Support max 8k60Hz or 4K120Hz video output
- Support High Dynamic Range(HDR10+)
- Support multiple color formats: RGB; YCbCr4:4:4; YCbCr4:2:2;YCbCr4:2:0;
- Support 8/10/12 bit Color depth
- Support HDCP2.3 and HDCP1.4
Note: If the host supports DP1.4 Alt mode, the output can be up to 8K/60Hz; If the host only supports DP1.2 Alt mode, the output will only be supported up to 4K/60Hz. The output resolution, refresh rate, video pixel format depends on the performance of the computer and the monitor.
• 1x USB Type-C Female Data
- Max 10Gbps data transmission
- Support 7.5W([email protected]) downstream charging
- Support short-circuit, over-current, over-voltage protection
• 1x USB Type-C Female (for PD 3.0 Charging)
- Support PD3.0 with max 100W PD Charging
- 15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
- Support fast role swap of PD3.0, the connected device will not get disconnected while plugging out PD Adapter;
• 2x USB Type-A Female
1- USB Type-A port Data 10G, support max 7.5W([email protected]) downstream charging(closest to RJ45)
2- USB Type-A port Data 10G, support max 4.5W(5V@900mA) downstream charging
3- Support short-circuit, over-current, over-voltage protection
4- USB Type-C and 2 USB Type-A ports share max 2.4A(24W) downstream charging
• 1x RJ45 (Gigabit Ethernet)
- Support 10M/100M/1000M/2.5G bandwidth
- Supports twisted pair crossover detection and auto-correction
- Support WOL(Wake-On-LAN), Full Duplex flow(10M/100M/1G/2.5G Rate), Auto-Negotiation
- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.

Note: - Please update your TV Firmware to the version which supports these resolutions/refresh rates ! - Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates! Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
