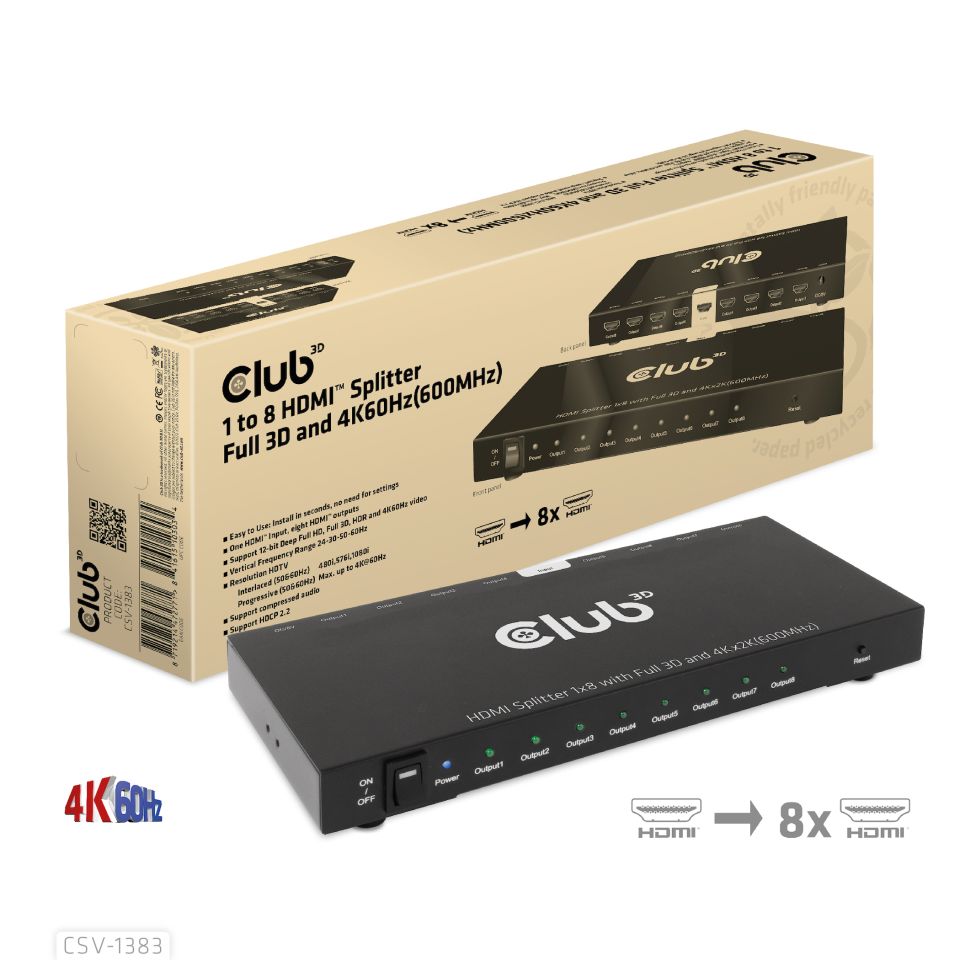

1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)

Enlarge

1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)

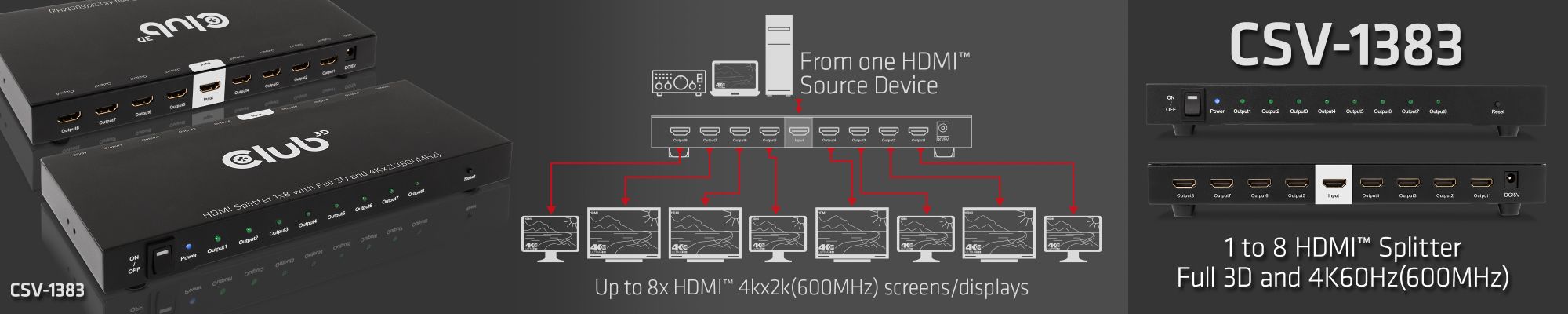

The Club 3D CSV-1383 is a high-performance and small-sized 1 to 8 HDMI™ Ultra High Definition Splitter with hot plug and iron casing. It distributes the input of the HDMI™ signal into eight identical outputs at the same time. It provides high performance audio and video output through HDMI™ cables up to 4K@60Hz resolution and is capable of receiving and transmitting up to 6Gbps/600MHz bandwidth.

This is a high-performance and small-sized HDMI™ splitter in a metal housing with an external Power Supply of 100-240VAC / 5V-3A DC, Power consumption(Max.) 11.3 Watt. It's an ideal assistant both at home and at work.

CSV-1383 QUICK INSTALLATION GUIDE

Specifications

Product Name:

1 to 8 HDMI™ Splitter Full 3D and 4K60Hz(600MHz)

Product Series: Video Splitter

Product Code: CSV-1383

EAN code: 8719214472771

UPC code: 841615103034

Features:

• Easy to Use: Install in seconds, no need for settings

• One HDMI™ Input, eight HDMI™ outputs

• Support 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video

• Vertical Frequency Range 24-30-50-60Hz

• Resolution HDTV

Interlaced (50&60Hz) 480i,576i,1080i

Progressive (50&60Hz) Max. up to 4K@60Hz

• Support compressed audio

• Support HDCP 2.2

• Power Protection: the power will get disconnected automatically once the voltage of the connected power adapter is above 5.5V (Note: the power protection circuit will be damaged if the voltage if above 30V, so avoid connecting power adapter with voltage above 30V)

• OS Support: Windows10/11

• Warning Safe Usage – Product Only to be used at altitude 2000 meters/6562 feet and below

OS Support:

• Windows10/11

In the box:

• Club 3D CSV-1383 1 to 8 HDMI™ Splitter

• Power Supply 100-240VAC/ 5V3A DC(Please Specify Plug type when ordering)

• QR Code for downloading the Quick Install Guide (QIG)

Available Interfaces

Input:

• 1x HDMI™ Female

Output:

• 8x HDMI™ Female

Other info:

• Box size: 35 x 13 x 5.5 cm / 13.78 x 5.12 x 2.17"

• Switch size: 25.8 x 11.35 x 3.5 cm / 10.16 x 4.47 x 1.38"

• Box Weight: 137 gr/ 4.83 oz

• ProductWeight: 770 gr / 27.16 oz

• Power Supply Weight: 127 gr / 4.48 oz (Depending on PowerPlug)

• Total Weight: 1034 gr/ 36.47 oz (Depending on PowerPlug)

• Meets ROHS, FCC, and CE EMI requirements

Note:

- Please update your TV Firmware to the version which supports these resolutions/refresh rates !

- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
