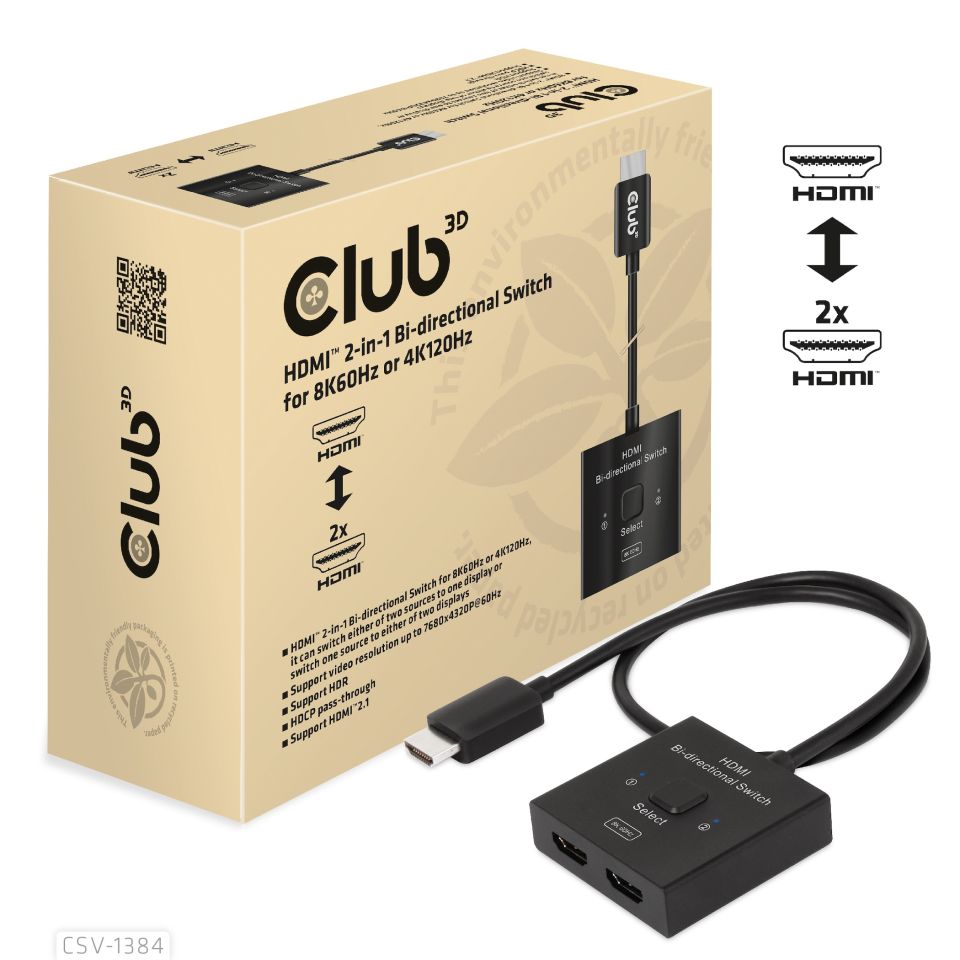

HDMI 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz

The Club 3D CSV-1384 is a HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz. It can switch either of two sources to one display or switch one source to either of two displays. Press the switch button to select channel 1 or channel 2. With a piece of 0.5m / 1.64 ft length fixed HDMI™ cable (pigtail), this Switch not only reduces cost but also saves time for customers. This kind of HDMI™ Switcher routes high definition video (in multiple resolutions and up to 8K60Hz) and digital audio from the sources to display units.

CSV-1384 QUICK INSTALLATION GUIDE

Specifications

Product Name:

HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz

Product Series: Video Splitter

Product Code: CSV-1384

EAN code: 8719214472832

UPC code: 841615103096

Features:

• HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz, it can switch either of two sources to one display or switch one source to either of two displays

• Support video resolution up to 7680x4320P@60Hz

• Support HDR

• HDCP pass-through

• Support HDMI™2.1

• The toggle button can quickly switch between 2 video sources or 2 monitors,and the blue LED indicators on both sides indicate which port is chosen to work.

• It’s suggested to match a HDMI™2.1 cable whose length is better within 3m/9.84 ft

Supported resolutions:

• Up to 8K60Hz or 4K120Hz Depending on source signal

Note:

• It’s suggested to match a HDMI™2.1 cable whose length is not exceeding 3m/9.84 ft

• The above data is obtained from the internal laboratory of Club 3D, the specific optimal cable length is subject to the actual situation.

Warning Safe Usage – Product Only to be used at altitude 2000 meters/6562 feet and below

OS Support:

• Windows 10 or upwards, Mac 13.5.2

In the box:

• 1X CSV-1384 HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz

• QR Code for downloading the Quick Install Guide (QIG)

Available Interfaces

Input:

• 1x HDMI™ Male

Output:

• 2x HDMI™ Female

Other info:

• Box size: 14.5 x 14.5 x 4.5 cm/ 5.71 x 5.71 x 1.77"

• Device size: 5.5 x 5.5 x 1.5cm / 2.16 x 2.16 x 0.59"

• In/Output Cable length approx.: 0.5 m / 1.64 ft

• HDMI™ Connector dimensions: 3.6 x 1.98 x 0.98 cm / 1.42 x 0.78 x 0.39 inch"

• Device Weight: 70 gr / 2.47 oz

• Box Weight: 45gr/ 1.59 oz

• Bio Degradable Bag size: 10 x 12cm / 3.94 x 4.72"

• Bio Degradable Bag Weight: 2 gr./ 0.07 oz

• Total Weight: 117 gr / 3.95 oz

• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
