DisplayPort™ to Triple HDMI™ 8K60Hz Adapter

Enlarge

DisplayPort™ to Triple HDMI™ 8K60Hz Adapter

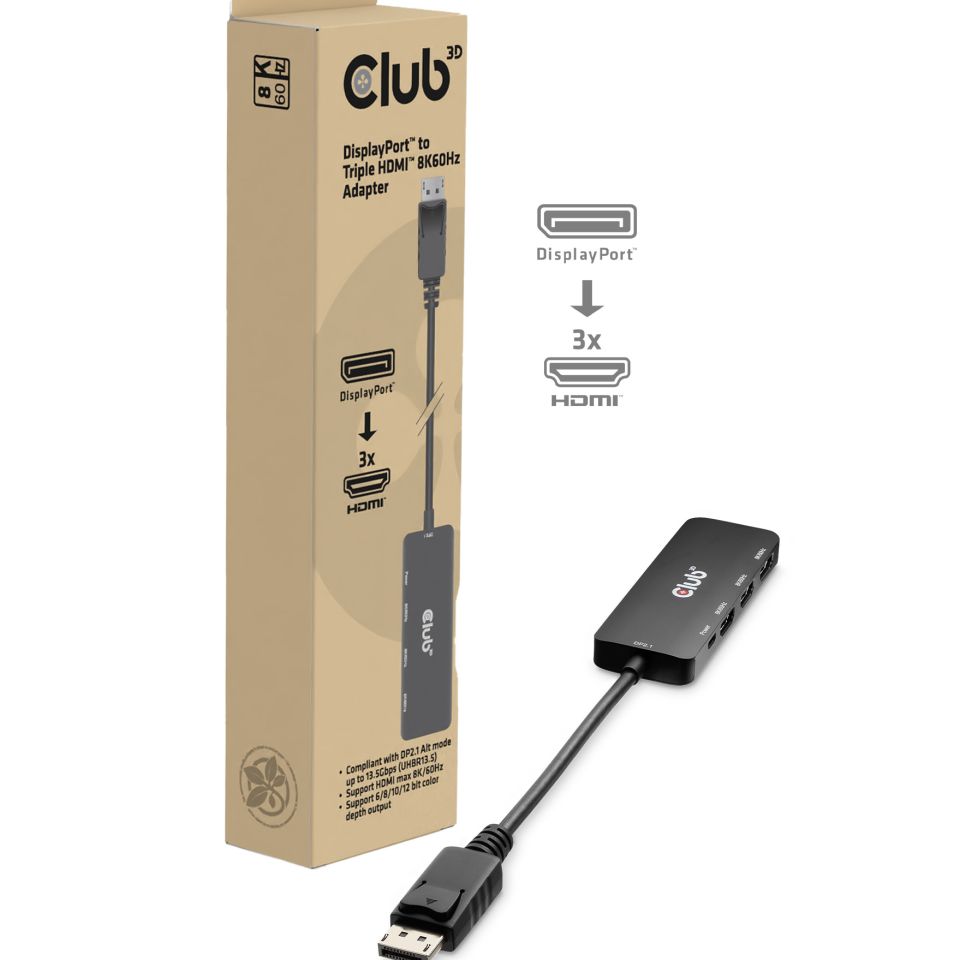

The CSV-7330 is a compact DisplayPort™ to Triple HDMI™ hub that lets you connect up to three screens with stunning resolutions—supporting up to 8K60Hz per port or a mix of 8K and 4K displays. It’s great for multitasking, gaming, or high-quality video. Just plug it in and enjoy smooth performance.

• TRIPLE HDMI™ OUTPUT: Connect up to three HDMI™ displays with a single DisplayPort™ input, supporting resolutions up to 8K60Hz or a mix of 8K and 4K screens for an immersive multi-monitor setup.
• EASY TO USE: Plug-and-play functionality with no additional drivers required; powered via DisplayPort™ with an optional Micro-USB for extra power when needed.
• UNIVERSAL COMPATIBILITY: Works with DisplayPort™ 2.1 and backward compatible with DP1.4 (resolution may be limited based on host device capabilities).
• MICRO-USB POWERED: Requires an external 5V power supply via Micro-USB for stable operation across all connected displays.

Specifications

Product Name:
DisplayPort™ to Triple HDMI™ 8K60Hz Hub
Product Series: Hub
Product Code: CSV-7330
EAN code: 8719214473471
UPC code: 841615103720

Features:
• Compliant with DisplayPort™ 2.1 Alt mode up to 13.5Gbps (UHBR13.5).
• Support HDMI™ max 8K60Hz.
• Support 6/8/10/12 bit color depth output.
• Support pixel format RGB/ YCbCr4:4:4/ YCbCr4:2:2/ YCbCr4:2:0.
• Support HDR, HDCP 2.3, HPD.
• Support 5V Micro-USB power supply.

*Supported Resolutions:**
• 2x 8K60Hz, 8K60Hz + 2x 4K120Hz

OS Support:
• Windows 10 upwards

In the box:
• 1x CSV-7330
• 1x USB-A to Micro-USB Cable 1 m/3.28 ft

Available Interfaces
Input:
• 1x DisplayPort™
• 1x Micro-USB
Output:
• 3x HDMI™

Other info:
• Box size 14.5 x 14.5 x 4.5cm / 5.71 x 5.71 x 1.77in
• Cable length approx.: 14cm / 5.51in
• Connector dimensions:
DisplayPort™ 4.7 x 2 x 1.3cm / 1.85 x 0.79 x 0.51in
HDMI™ 4 x 1.8 x 0.8cm / 1.57 x 0.71 x0.32in
• Product Weight: 67g / 2.36oz
• Box Weight: 45g / 1.59oz
• Bio Bag Weight: 5g / 0.18oz
• Total Weight: 117g / 4.13oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). To use the full potential of this device, your setup must support all required standards.
