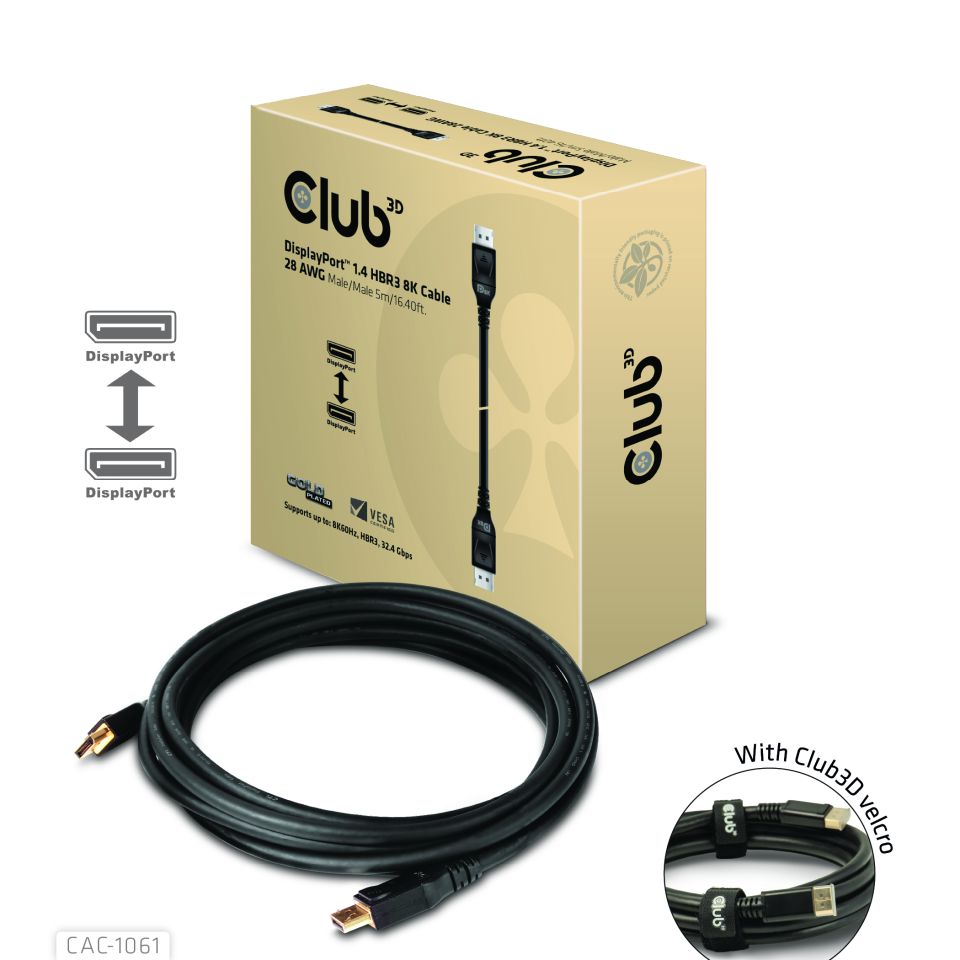

DisplayPort 1.4 HBR3 8K Cable M/M 5m /16.40ft
CAC-1061 - The Club 3D DisplayPort™ 1.4 HBR3 8K cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device.
DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32. It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.
Specifications
Model: |
Product Name: DisplayPort™ 1.4 HBR3 8K Cable Male/Male 5M / 16.40ft. |
Product Series: Cables |
Itemcode: CAC-1061 |
EAN code: 8719214471170 |
UPC code: 841615101368 |
Features: |
• Fully DisplayPort™ 1.4 Compliant, HBR3, 32.4Gbps, 28AWG |
• Gold plated |
• Support for Display Stream Compression (DSC) 1.2 |
• Support for Forward Error Correction |
• Support for up to 32 Inline Audio Channels |
• Downwards compatible to older DisplayPort standards |
• Support resolutions up to 8K @ 60Hz and 4K @ 144Hz |
• Without DSC1.2 max resolution supported up to: - 5K @ 60Hz |
• Vesa Certified |
OS Support: |
All |
Input: |
• DisplayPort™ 1.4 Male |
Output: |
• DisplayPort™ 1.4 Male |
Other info: |
• Box size: 175 x 175 x 45 mm. |
• Box Weight: 64 gr. |
• Product Weight: 384 gr. |
• Weight Product with retail box: 448 gr. |
• Product height: 12mm. |
• Product width: 19 mm. |
• Product Length: 5meter/ 16.40feet |
• Meets ROHS, FCC, and CE EMI requirements |
• Made in China |
In the box: |
• Club 3D DisplayPort™ 1.4 HBR3 8K Cable |
PDF files
- SPECIFICATION-SHEET-CAC-1061_EN.pdf
- SPECIFICATION-SHEET-CAC-1061_DE.pdf
- CAC-1061_SPECIFICATION-SHEET_ES.pdf
High Resolution Images
Driver downloads
- No Driver downloads found
