USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)

Enlarge

USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)

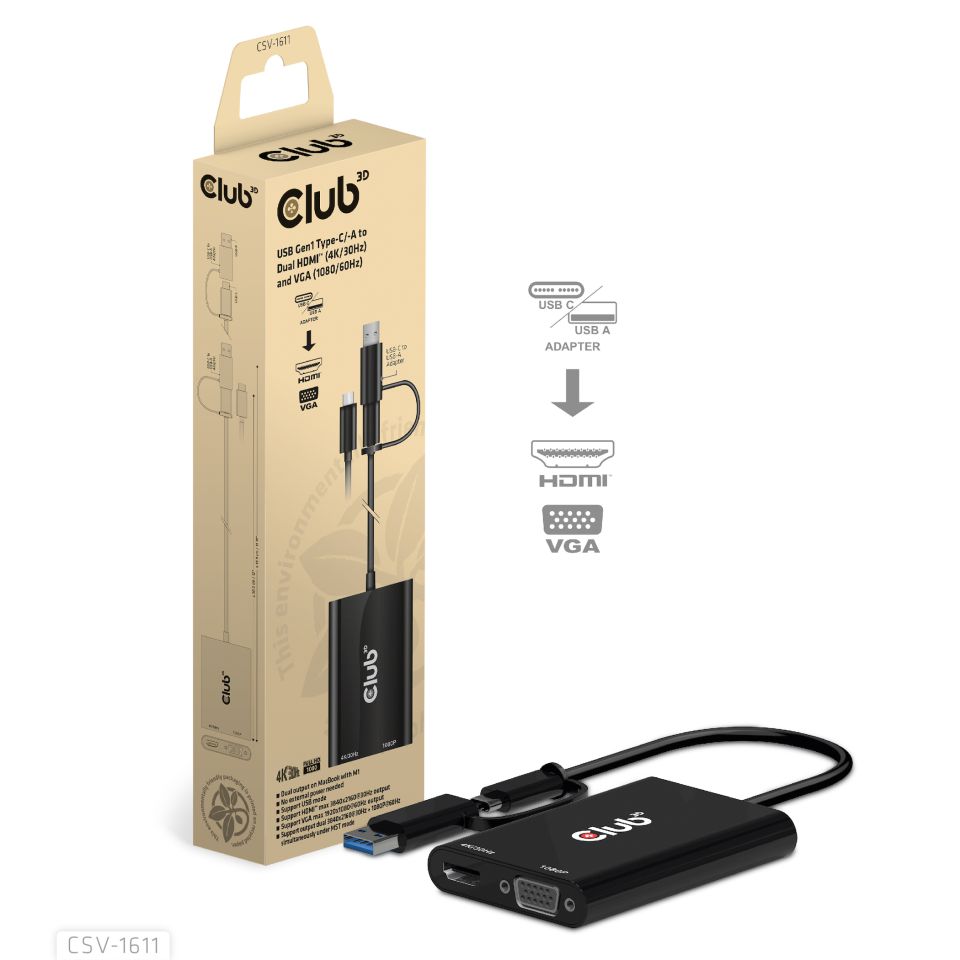

The Club 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual Display adapter which provides most advanced, efficient solution to extend a single USB Type-C or Type-A port to HDMI™ and VGA displays. It supports single HDMI™ 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of different videos. It can work on USB Mode and DP Alt mode supported Type-C and USB-A host. Dual Video output on MacBook with M1. Support USB Gen1 with max 5Gbps data transmission. The unit is powered thru the USB Type-A or Type-C host connection. No external power needed.

Specifications

Product Name: USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) / VGA (1080/60Hz)
Product Series: Video Splitter
Product Code: CSV-1611
EAN code: 8719214472429
UPC code: 841615102686

Features:
• Works with both USB Gen1 Type-A or Type-C input
• No external power needed
• Support USB mode
• Support USB Gen1 with max 5Gbps data transmission
• Dual output on MacBook with M1
• Support HDMI™ max 3840x2160@30Hz output
• Support output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
• Support VGA max 1920x1080@60Hz output
• Support output dual 3840x2160@30Hz + 1080P@60Hz simultaneously under MST mode
• Support 8bit color depth output
• Support HDCP1.4

OS Support:
• All
Note: Please make sure you have the latest SW/FW/Driver updates installed on your Host system to support the functionality of this product. You can download the latest drivers for this product from our website: www.club-3d.com

In the box:
• CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz)

Available Interfaces
Input:
• USB Type-C Male
• USB Type-A Male
Output:
• 1x HDMI™ Female
• 1x VGA Female

Other info:
• Box size: 25 x 8 x 3.5 cm / 9.84 x 3.15 x 1.38"
• Device size: 9.1 x 6.22 x 1.41cm / 3.58 x 2.45 x 0.55"
• USB Host Cable length approx.: 22 cm / 8.66"
• Total length approx.: 33 cm / 13"
• USB Type-C Male Connector dimensions:
- 3.4 x 1.2 x 0.7cm / 1.34 x 0.47 x 0.28"
• USB Type-A Male Connector dimensions:
- 4.3 x 1.6 x 0.9 cm / 1.69 x 0.63 x 0.35"
• Device Weight: 130 gr / 4.59 oz
• Box Weight: 58 gr / 2.05 oz
• Total Weight: 188 gr / 6.64 oz
• Meets ROHS, FCC, and CE EMI requirements

Note: - Please update your TV Firmware to the version which supports these resolutions/refresh rates ! - ‑Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
