USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 Portable Dock
USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 Portable Dock
USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 Portable Dock
Enlarge

USB Gen2 Type-C to Dual DisplayPort 4k60Hz 7-in-1 Portable Dock

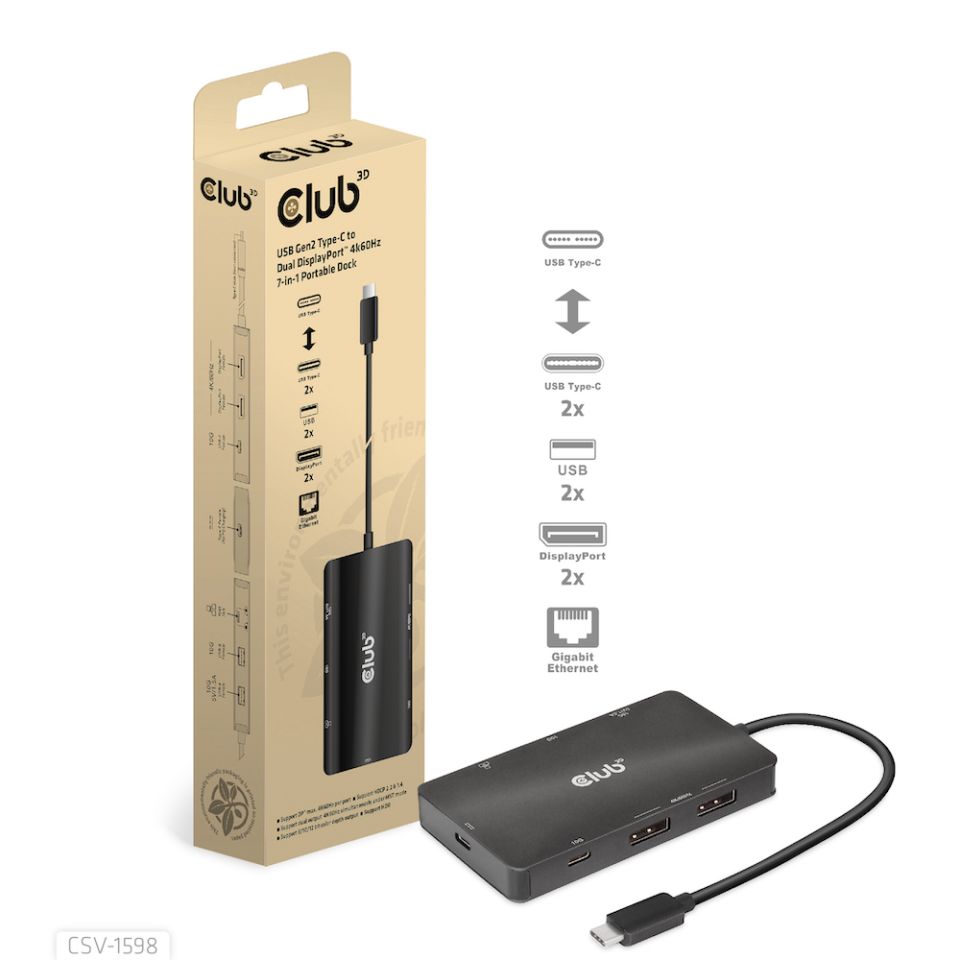

The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host.









CSV-1598 QUICK INSTALLATION GUIDE
  CSV-1598 QUICK INSTALLATION GUIDE

Related products
DisplayPort 1.4 HBR3 Cable Male/Male 2m/6.56ft 28AWG
DisplayPort 1.4 HBR3 Cable Male/Male 2m/6.56ft 28AWG
USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock
USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock
USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt
USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

Specifications

Product Name:
USB Gen2 Type-C to Dual DisplayPort™ 4k60Hz 7-in-1 Portable Dock
Product Series: Docking
Product Code: CSV-1598
EAN code: 8719214472528
UPC code: 841615102761

Features:
• Support DP™1.4 Alt mode
• Support DP™ max. 4K60Hz per port
• Support dual output 4K60Hz simultaneously under MST mode
• Support 8/10/12 bit color depth output
• Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Support HDR
• Support HDCP 2.2 & 1.4
• Max 10Gbps (Gen2) data transmission per USB port
• Support max 7.5W(5V/1.5A) downstream charging for the USB Type-A port furthest from RJ45
• Support Gigabit Ethernet,10M/100M/1000M
• Support max 100W PD charging(15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge the host)
• Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging in and out PD Adapter

Input:
• 1x USB Gen2 Type-C Male(Connect to host)
 Support DP™1.4 Alt mode
Note: To get max bandwidth, the host should support DP™1.4 Alt mode
Output(s):
• 2x DisplayPort™ Female
 Support max. 4K60Hz
 - Support Dual display DP™ max.4K60Hz (MST with DSC1.2)
Note: The max resolution of the display determined by the computer and the monitor
• 1x USB Gen2 Type-C(next to DP™ ports) Female
 - Max 10Gbps data transmission
 - Support max 4.5W(5V/900mA) downstream charging
 - 2 USB Gen2 Type-A and the Type-C share max 2.4A output
 Support short-circuit, over-current, over-voltage protection
• 2x USB Gen2 Type-A Female
 Max 10Gbps data transmission per port
 1 port supports max 7.5W(5V/1.5A) downstream charging.
 1 port supports Max 4.5W(5V/900mA) charging
 Both USB Gen2 Type-A ports Support short-circuit, over-current, over-voltage protection
• 1x RJ45 Jack
 - Support Gigabit Ethernet,10M/100M/1000M
 - Support Wake-On-LAN
 - Support full duplex flow control
 - Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data
• 1x USB Gen2 Type-C Female (for PD Charger)
 Support max 100W PD3.0 charging
 Support Fast Role Swap, the connected device will not get disconnected while plugging in and out the PD charger. 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge the host
OS Support:
• Microsoft and Apple

In the box:
• 1x USB Gen2 Type-C to Dual DisplayPort™ 4k60Hz 7-in-1 Portable Dock

Available Interfaces
Input:
• USB Gen2 Type-C Male (Connect to host)
Output:
• 2x DisplayPort™ Female
• 2x USB Gen2 Type-A Female
• 1x RJ45 jack
• 2x USB Gen2 Type-C Female
NOTE: Please make sure your host supports DP™1.4 Alt mode.

Other info:
• Box size: 25 x 8 x 3.5cm / 9.84 x 3.15 x 1.38"
• Cable length: 17 cm / 6.69"
• Total length: ± 31.6 cm / 12.44"
• Hub dimensions: 10.5 x 5.9 x 1.4 cm / 4.13 x 2.32 x 0.55"
• Connector dimensions: 3.4 x 1.2 x 0.65 cm / 0.86 x 0.47 x 0.26"
• Product Weight: 102 gr / 3.6 oz
• Box Weight: 54 gr / 1.9 oz
• Total Weight: 156 gr / 5.5 oz
• Meets ROHS, FCC, and CE EMI requirements
NOTE: Please make sure your host supports DP™1.4 Alt mode.

Other info:
• Box size: 25 x 8 x 3.5cm / 9.84 x 3.15 x 1.38"
• Cable length: 17 cm / 6.69"
• Total length: ± 31.6 cm / 12.44"
• Hub dimensions: 10.5 x 5.9 x 1.4 cm / 4.13 x 2.32 x 0.55"
• Connector dimensions: 3.4 x 1.2 x 0.65 cm / 0.86 x 0.47 x 0.26"
• Product Weight: 102 gr / 3.6 oz
• Box Weight: 54 gr / 1.9 oz
• Total Weight: 156 gr / 5.5 oz
• Meets ROHS, FCC, and CE EMI requirements

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
