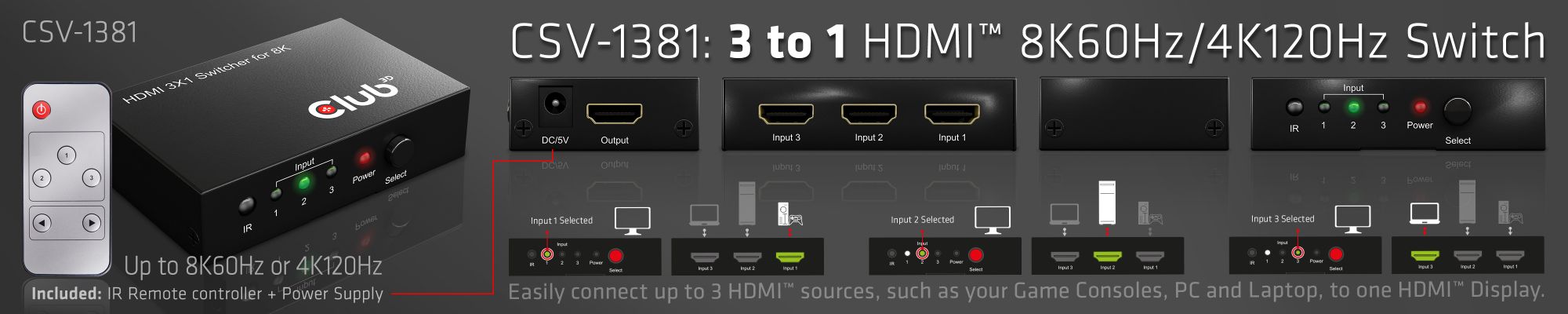

3 to 1 HDMI™ 8K60Hz/4K120Hz Switch

The Club 3D CSV-1381 is a 3 to 1 HDMI™ spec. Switch that routes your high-definition video and digital audio from any one of the HDMI™ inputs to an 8K60Hz/4K120Hz HDMI™ output. The easiest way of connecting your High-Resolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI™ display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to 8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends the high-definition audio/video signals to a high definition(8K60Hz) HDMI™ spec. Display. Switching inputs can be done by key pressing, on the unit itself, or with an IR remote unit for easy switching. This is a high-performance and small-sized HDMI™ 8K Switcher in a metal housing with an external Power Supply of 100-240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.

CSV-1381 QUICK INSTALLATION GUIDE

Specifications

Product Name:

3 to 1 HDMI™ 8K60Hz/4K120Hz Switch

Product Series: Video Splitter

Product Code: CSV-1381

EAN code: 8719214472719

UPC code: 841615102952

Features:

• Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160)

• Support Full 3D

• HDCP 2.2&1.4 pass through

• Support EDID bypass

• HDR support

• RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0

• IR remote unit(38KHz)

• Each Input- and Output- cable length is max. 2m/6.56ft

OS Support:

• All

In the box:

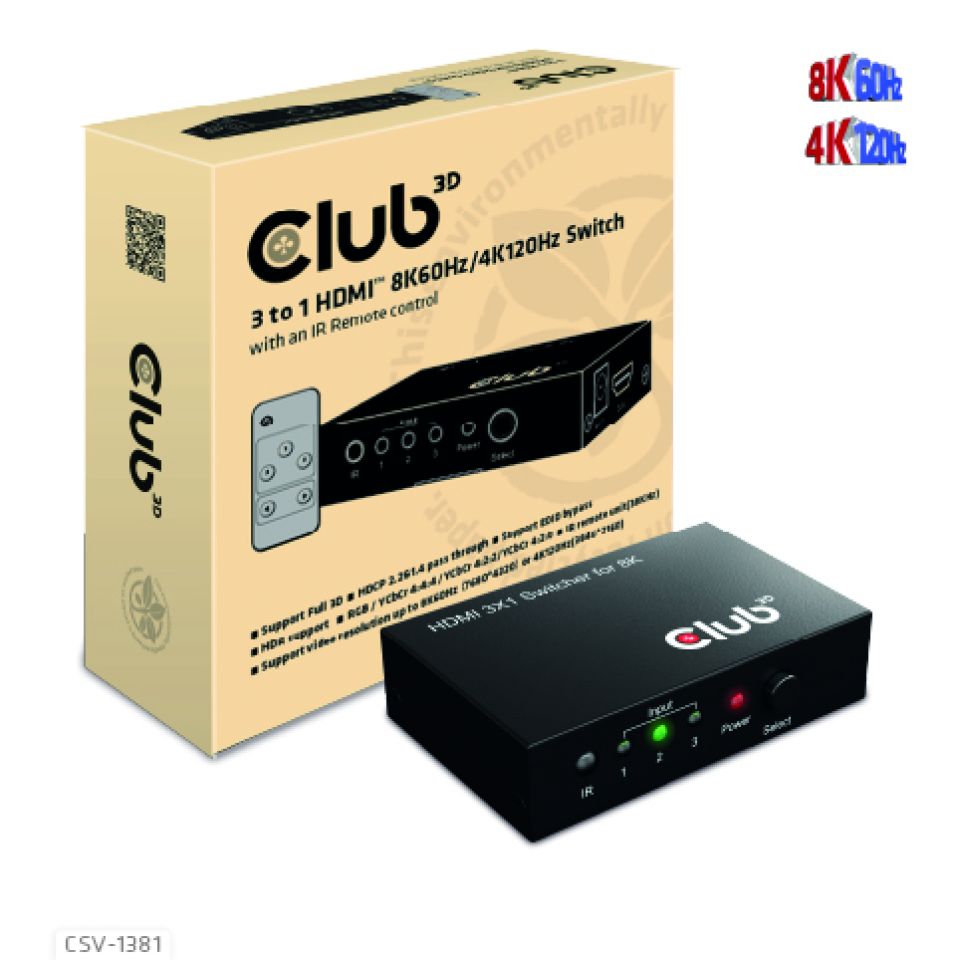

• Club 3D CSV-1381 3 to 1 HDMI™ 8K60Hz Switch

• IR Remote controller (incl CR2025 Battery)

• Power Supply 100-240VAC/ 5V1A DC(Please Specify Plug type when ordering)

• QR Code for downloading the Quick Install Guide (QIG)

Available Interfaces

Input:

• 3x HDMI™ Female

Output:

• 1x HDMI™ Female

Other info:

• Box size: 14.5 x 14.5 x 5.5 cm / 5.7 x 5.7 x 2.17"

• Switch size: 8 x 5.12 x 2 cm / 3.15 x 2.016 x 0.79"

• IR Remote Controller size : 4 x 8.67 x 0.64 cm / 1.58 x 3.41 x 0.25"

• Box Weight: 67 gr / 2.36 oz

• ProductWeight: 105gr / 3.7 oz

• IRRemote Controller weight: 17 gr / 0.6 oz

• Power Supply Weight: 51-112 gr / 1.8-3.95 oz (Depending on PowerPlug)

• Total Weight: 240-301gr / 8.47-10.61 oz (Depending on PowerPlug)

• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
